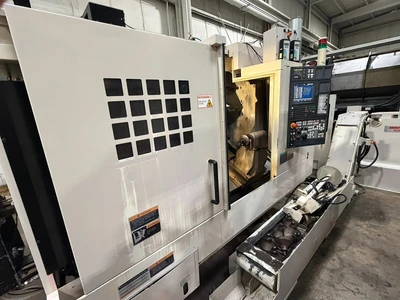

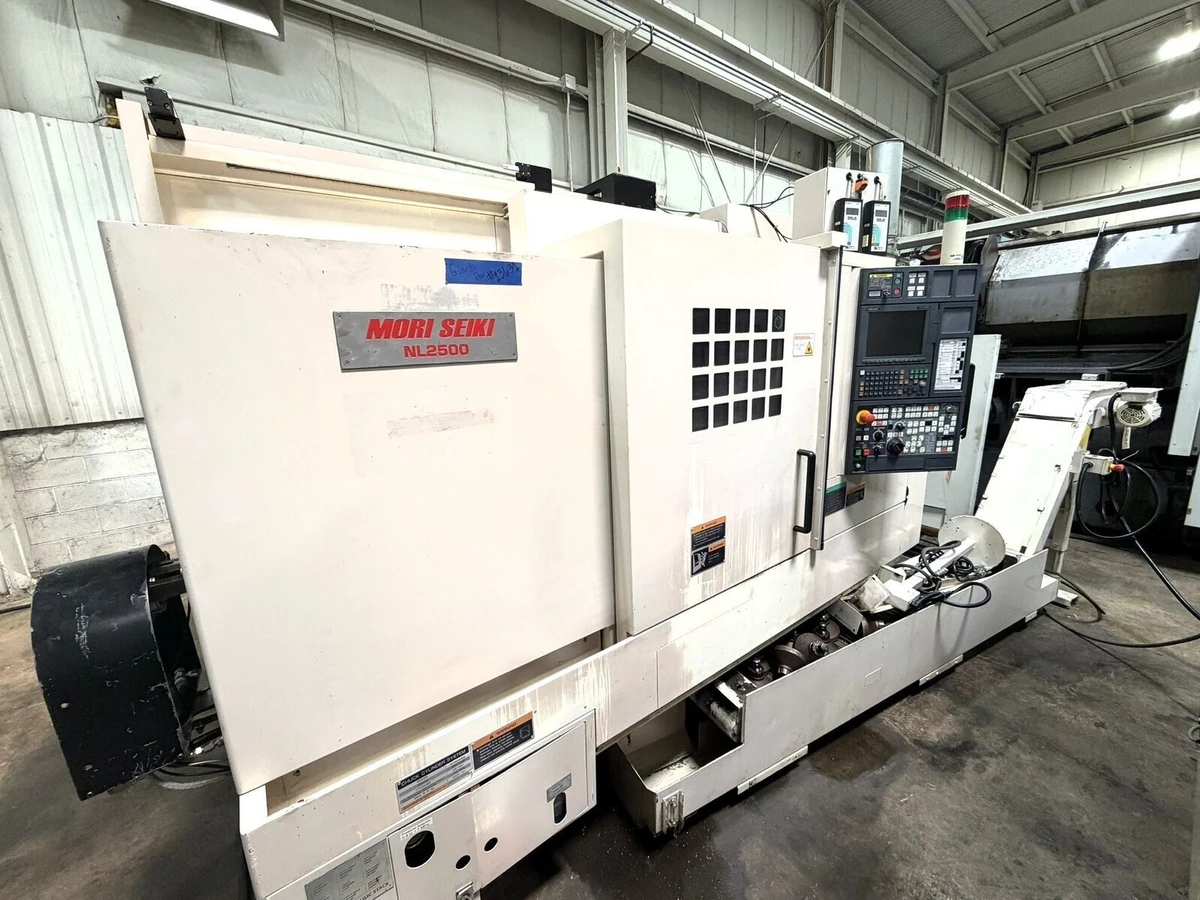

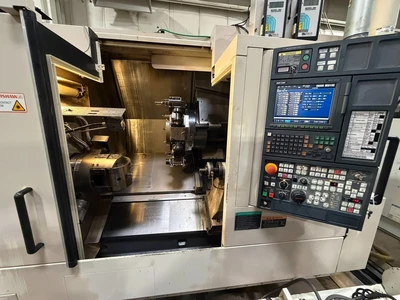

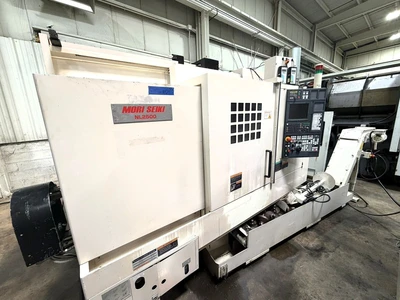

2008 MORI SEIKI NL2500Y/700
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition. Features include 14.5" max turning diameter, 27.55" length, and 3.1" bar capacity. Equipped with MSX-850 III, live tooling, programmable tailstock, and high-pressure coolant pump.
Capacity
Max Turning Diameter: 14.5″
Max Turning Length: 27.55″
Max Bar Capacity: 3.1″
Swing Over Bed: 36.4″
Distance Between Centers: 34.6″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.3 “
Y Axis Travel: 3.9″
C Axis Travel: 0.001°
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

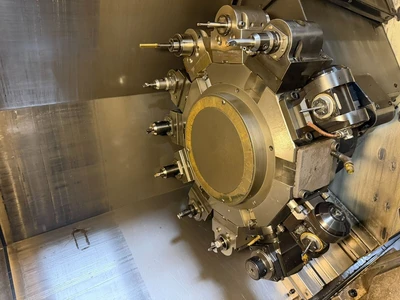

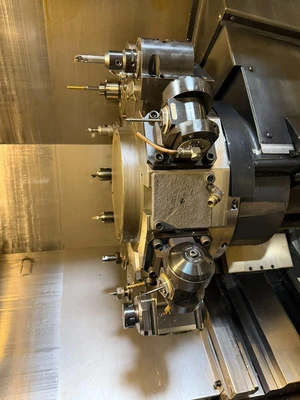

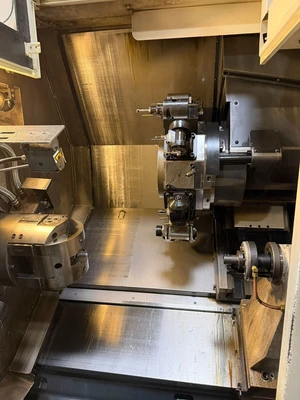

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.1 Second
Live Tool Speed: 6,000 RPM
Live Tool Motor: 7.5 HP
Tailstock:
Tailstock Taper: MT-4
Approx. Weight: 13,420
Dimensions: 122” x 72” x 83”

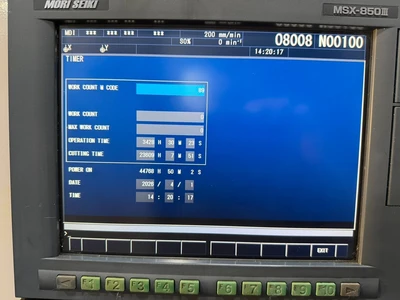

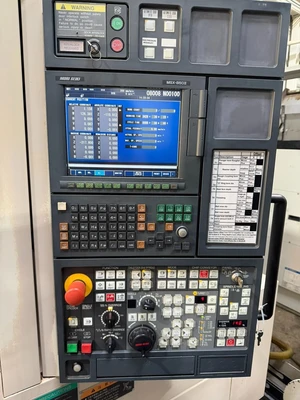

Control: MSX-850 lll
PC/MCIA Interface
MAPPS III Programming
C & Y-Axis Live Tooling Capability

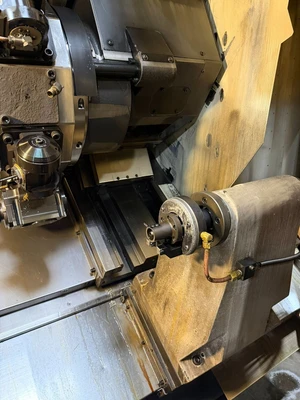

Programable Tailstock

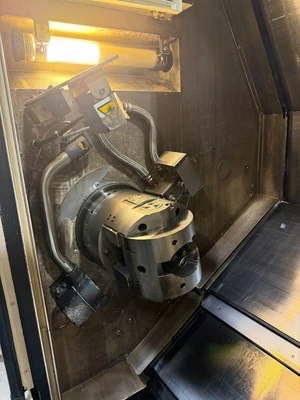

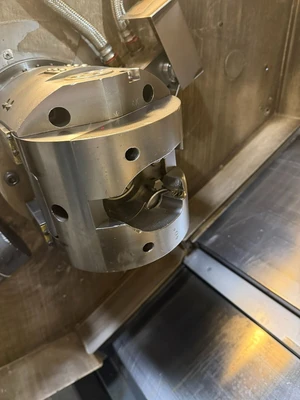

Hydraulic Index Chuck

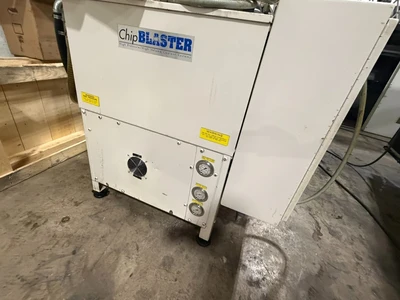

chip Blaster high pressure coolant pump
Tool Presetter
Integral Built-In Milling Spindle Motor
Servo Driven Turret
Chip Conveyor

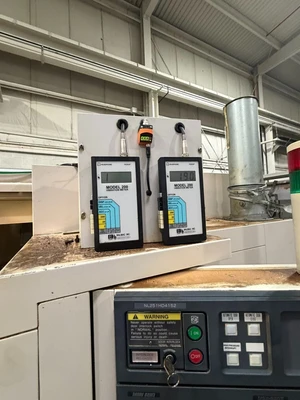

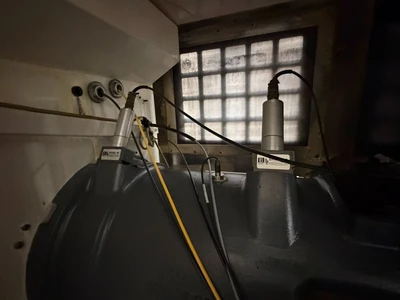

Balmac Model 200 Spindle Vibration Meter

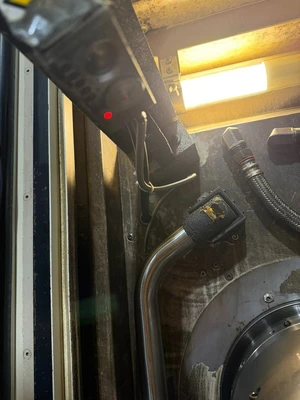

Renishaw Non-Contact Tool Breakage Detection Laser
