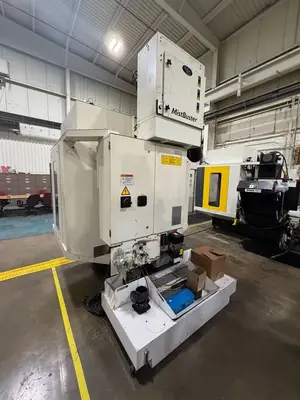

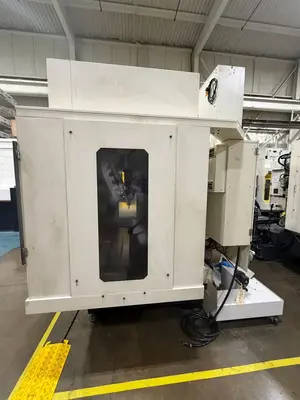

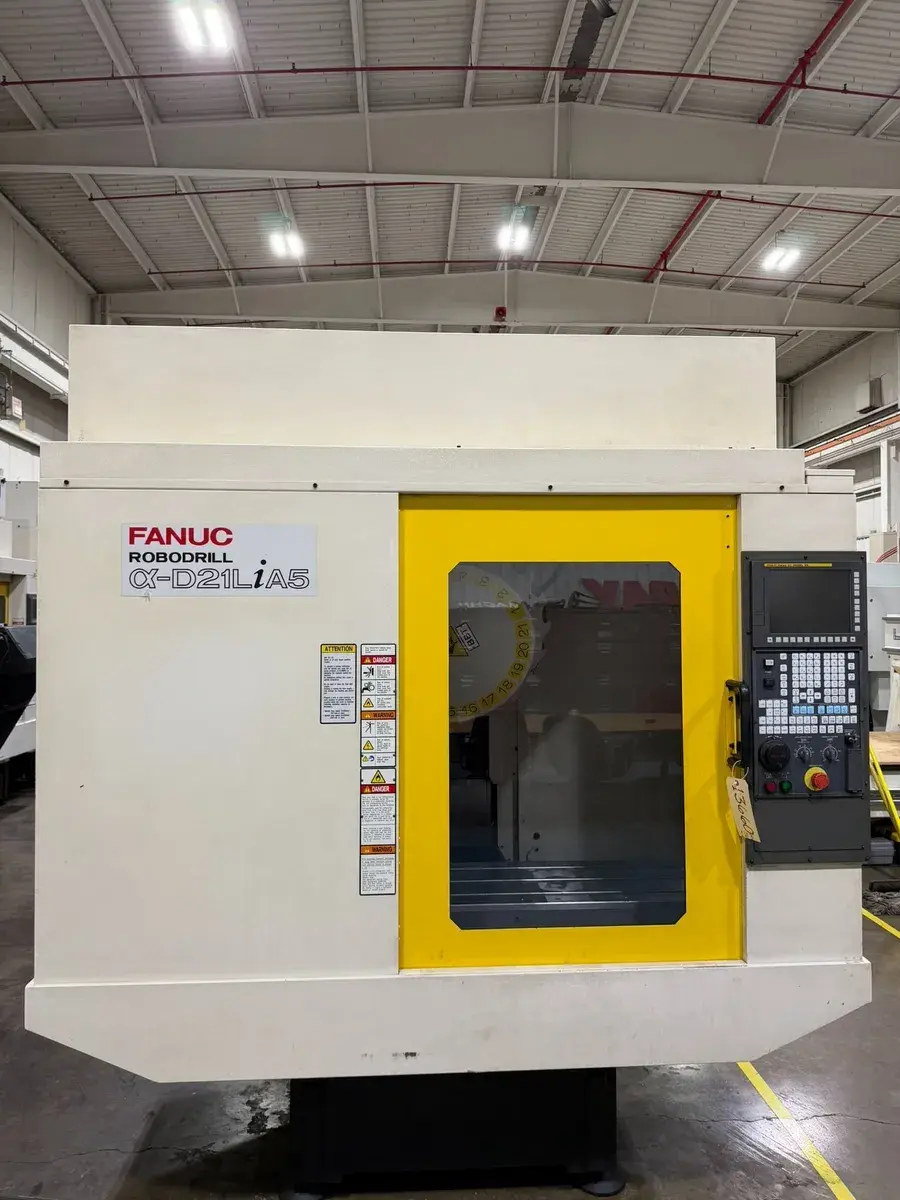

2014 FANUC Robodrill A-D21LiA5

Large Table Size: 25.59″ x 15.74″
Max Table Load: 66.1 LBS

X-Axis Travel 700 mm (27.6 in)
Y-Axis Travel 400 mm (15.7 in)
Z-Axis Travel 330 mm (13.0 in)
A Axis Range -120° to +30° (DDR direct-drive)
C Axis Range 360° continuous (DDR direct-drive)
Ddr Table Diameter ~300 mm (11.8 in)
Ddr Table Load 30 kg (66 lb)
Max Spindle Speed 10,000 RPM (24,000 RPM optional)
Spindle Taper BT30 / BBT30
Spindle Motor Power 11 kW (15 hp) continuous
Tool Capacity 21-position turret
Tool To Tool 0.7 sec
Chip To Chip 1.3 sec
Rapid Traverse Rate 54 m/min (2,126 ipm)
Positioning Accuracy ±0.003 mm
Repeatability ±0.002 mm

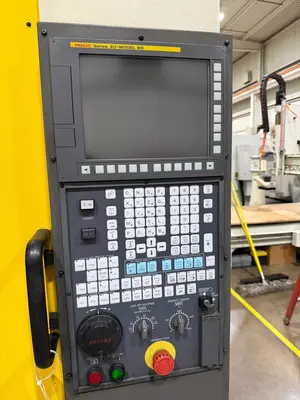

CNC Control Fanuc 31i-A5 (iA5 gen) / 31i-B5 on current production
Machine Weight ~4,200 kg (9,259 lb)
