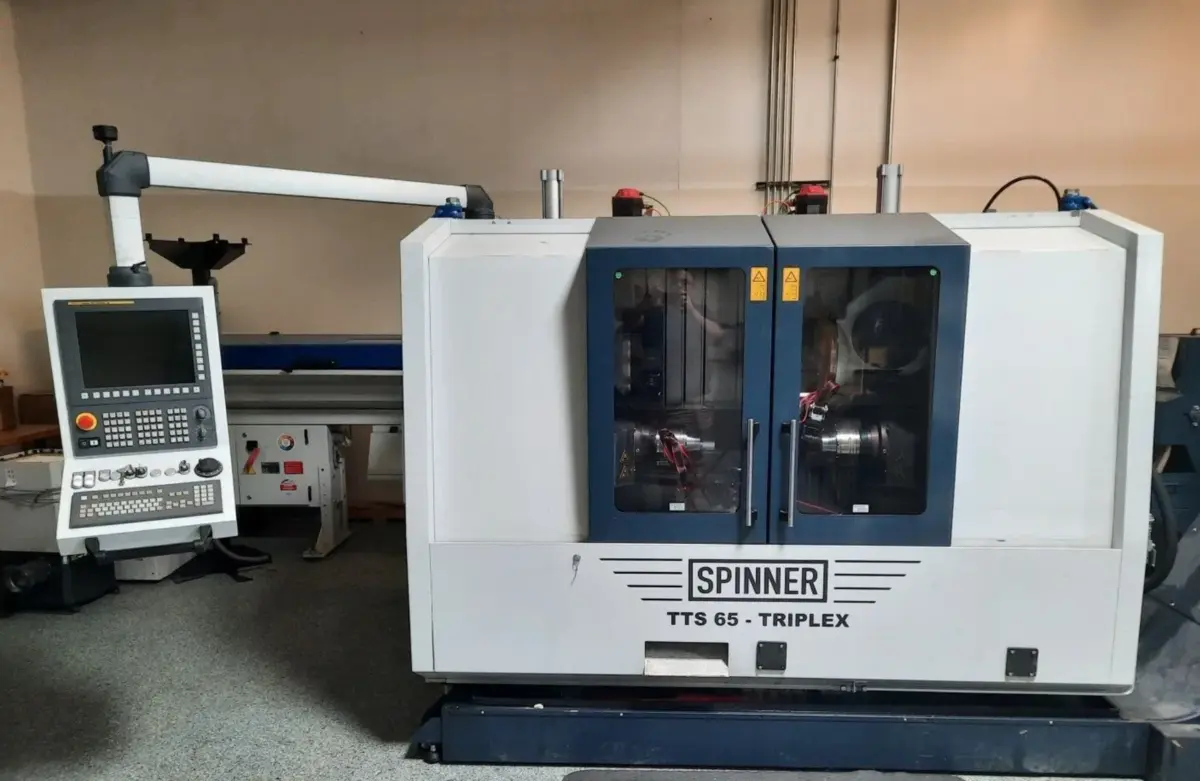

2022 Spinner TTS-65 Triplex CNC Lathe with Iemca Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 2022 Spinner TTS-65 Triplex is a twin-spindle CNC lathe with three 12-station BMT45 live tooling turrets, Y-axis travel on turrets 1 and 3, and a 6' Iemca Master 880 Verso bar feeder, with approximately 74 cutting hours. Both spindles take 2.56" (65mm) bar and run up to 5,000 RPM with 32.2 HP, and the live tools run up to 8,000 RPM.
X1 / X2 / X3 Travel: 7.08"
Y1 / Y3 Travel: ±1.77"
Z1 / Z3 Travel: 27.1"
Z2 Travel: 24.4"
Spindle Nose (Main and Sub): A6
Spindle Torque (S6 40%): 111.3 ft-lb
Turrets: 3
Stations per Turret: 12, BMT45
Max Live Tooling Speed: 8,000 RPM
Live Tooling Power: 5.8 HP
Live Tooling Torque: 10 ft-lb
Approximately 1,015 Power On Hours
Approximately 174 Run Hours
Approximately 74 Cutting Hours
Approximate Dimensions: 114" x 84" x 79"
Approximate Weight: 17,500 lbs
Fanuc 31i Control
Y-Axis (Turrets 1 and 3)
6' Iemca Master 880 Verso Bar Feeder
Collet Chucks, Main and Sub

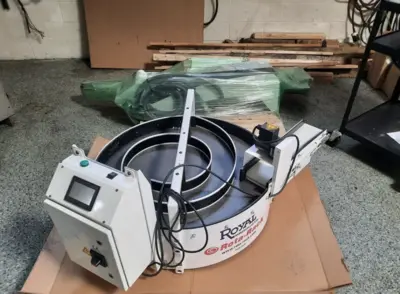

Royal Rota Rack
Mist Collector
Transformer
Misc. Tool Holders
This 2022 Spinner TTS-65 Triplex is a twin-spindle CNC lathe with three 12-station BMT45 live tooling turrets, Y-axis travel on turrets 1 and 3, and a 6' Iemca Master 880 Verso bar feeder, with approximately 74 cutting hours. Both spindles take 2.56" (65mm) bar and run up to 5,000 RPM with 32.2 HP, and the live tools run up to 8,000 RPM.
The Spinner TTS-65 Triplex, also searched as Spinner TTS65, TTS 65 Triplex, or TTS-65, is a twin-spindle, triple-turret CNC turning center with Y-axis live tooling (multi-axis mill-turn).
This 2022 machine has 7.08" of X travel on all three turrets, ±1.77" of Y travel on turrets 1 and 3, 27.1" of Z1/Z3 travel, and 24.4" of Z2 travel, with A6 spindle noses and 111.3 ft-lb of spindle torque. Live tools are rated at 5.8 HP and 10 ft-lb. It runs a Fanuc 31i control and comes with main and sub collet chucks, a Royal Rota Rack, mist collector, transformer, and tool holders, with approximately 1,015 power on hours, 174 run hours, approximate dimensions of 114" x 84" x 79", and an approximate weight of 17,500 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Bar Capacity | 2.56" |
| Power | 32.2 hp |
| Max RPM | 5,000 RPM |
| Tailstock | 'No' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'Yes' |
| Control | CNC (Fanuc) |
| Dimensions | 114"L x 84"W x 79"H |
| Weight | 17,500 Lbs |
X1 / X2 / X3 Travel: 7.08"
Y1 / Y3 Travel: ±1.77"
Z1 / Z3 Travel: 27.1"
Z2 Travel: 24.4"
Spindle Nose (Main and Sub): A6
Spindle Torque (S6 40%): 111.3 ft-lb
Turrets: 3
Stations per Turret: 12, BMT45
Max Live Tooling Speed: 8,000 RPM
Live Tooling Power: 5.8 HP
Live Tooling Torque: 10 ft-lb
Approximately 1,015 Power On Hours
Approximately 174 Run Hours
Approximately 74 Cutting Hours
Approximate Dimensions: 114" x 84" x 79"
Approximate Weight: 17,500 lbs
Fanuc 31i Control
Y-Axis (Turrets 1 and 3)
6' Iemca Master 880 Verso Bar Feeder
Collet Chucks, Main and Sub
Royal Rota Rack
Mist Collector
Transformer
Misc. Tool Holders
