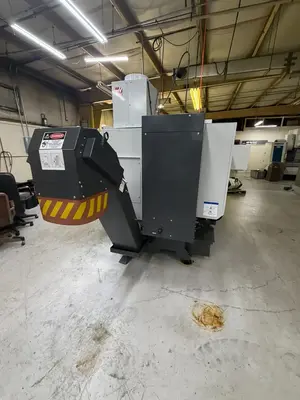

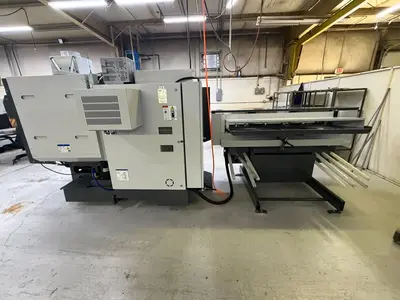

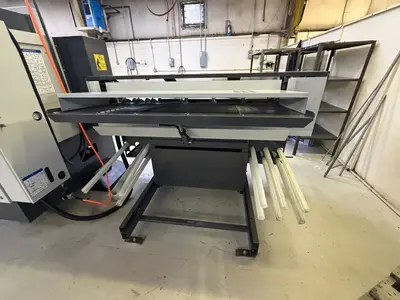

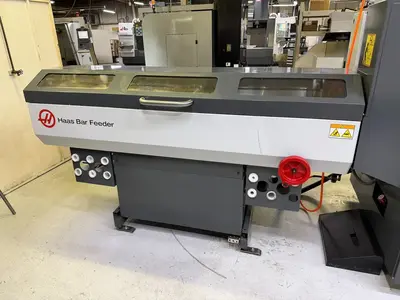

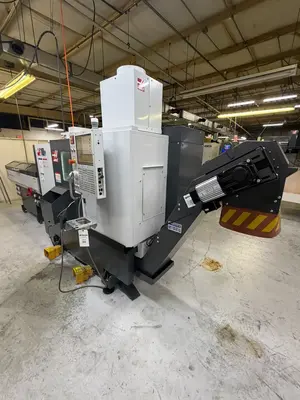

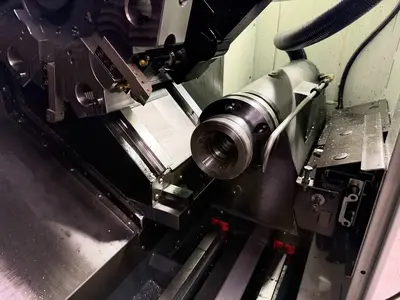

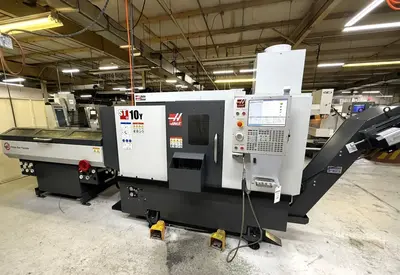

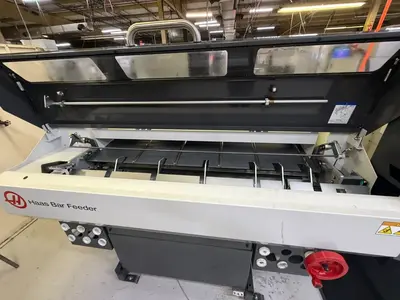

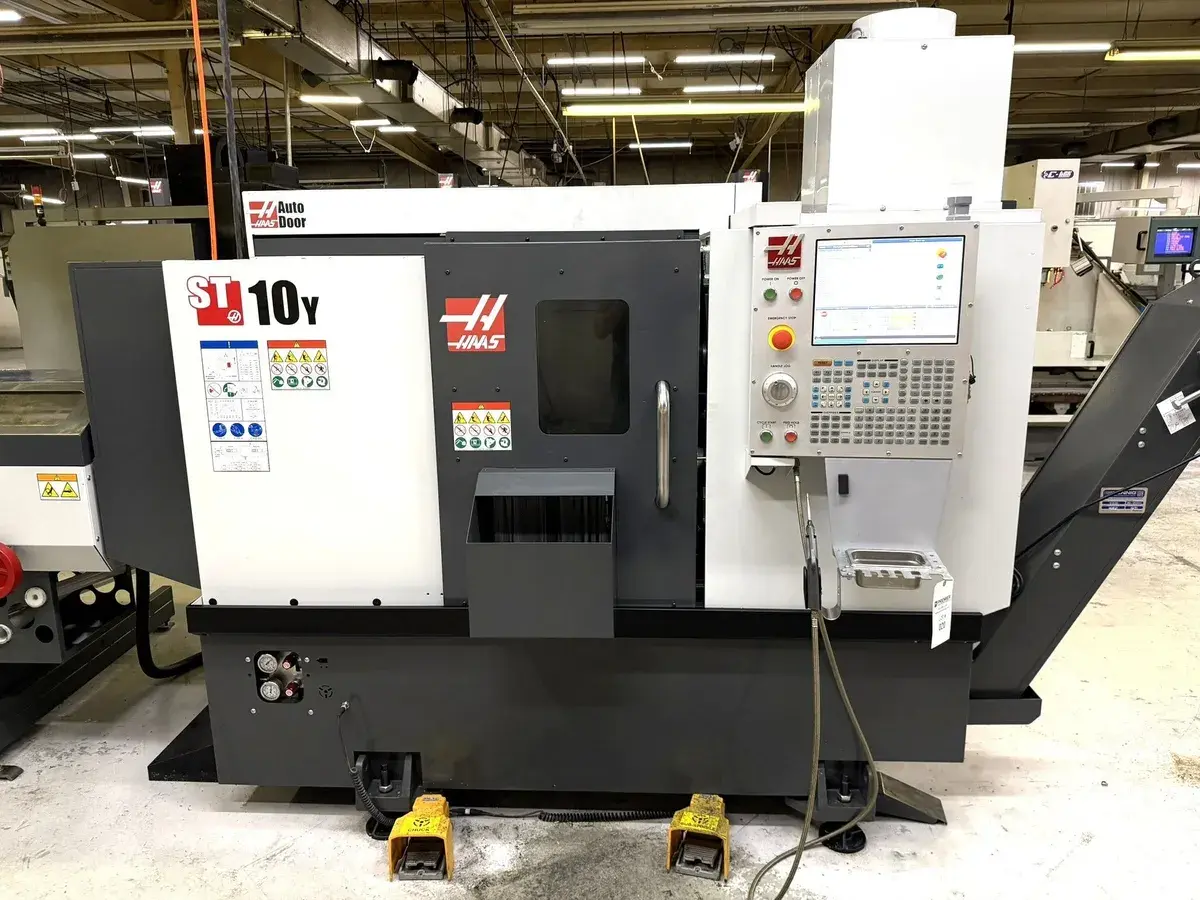

2021 HAAS ST-10Y CNC Lathe with Y-Axis, Sub-Spindle, and Bar Feeder

Max Part Swing: 16.5″

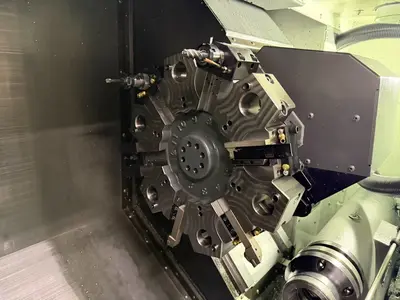

Max Cutting Diameter (with BMT45 turret): 11.00″
Max Cutting Length: 16.0″
Bar Capacity 1.75″

X Axis Travel: 7.9″
Y Axis Travel: ± 2.0″
Z Axis Travel: 16.0″
Rapids on X: 472 ipm 12.0 m/min
Rapids on Y: 472 ipm 12.0 m/min
Rapids on Z: 1200 ipm 30.5 m/min

Max Thrust X: 2400 lbf
Max Thrust Y: 2300 lbf
Max Thrust Z: 3700 lbf
Spindle Nose: A2-5
Max Rating: 15.0 hp
Max Speed: 6000 rpm
Max Torque: 75.0 ft-lbf @ 1300 rpm
Draw Tube Bore ø: 1.8″
Spindle Bore ø: 2.31″
Max Speed: 60 rpm
Positioning (±): 0.02 °
Brake Diameter: 9.5″
Brake Holding Torque: 140 ft-lbf.190 Nm
