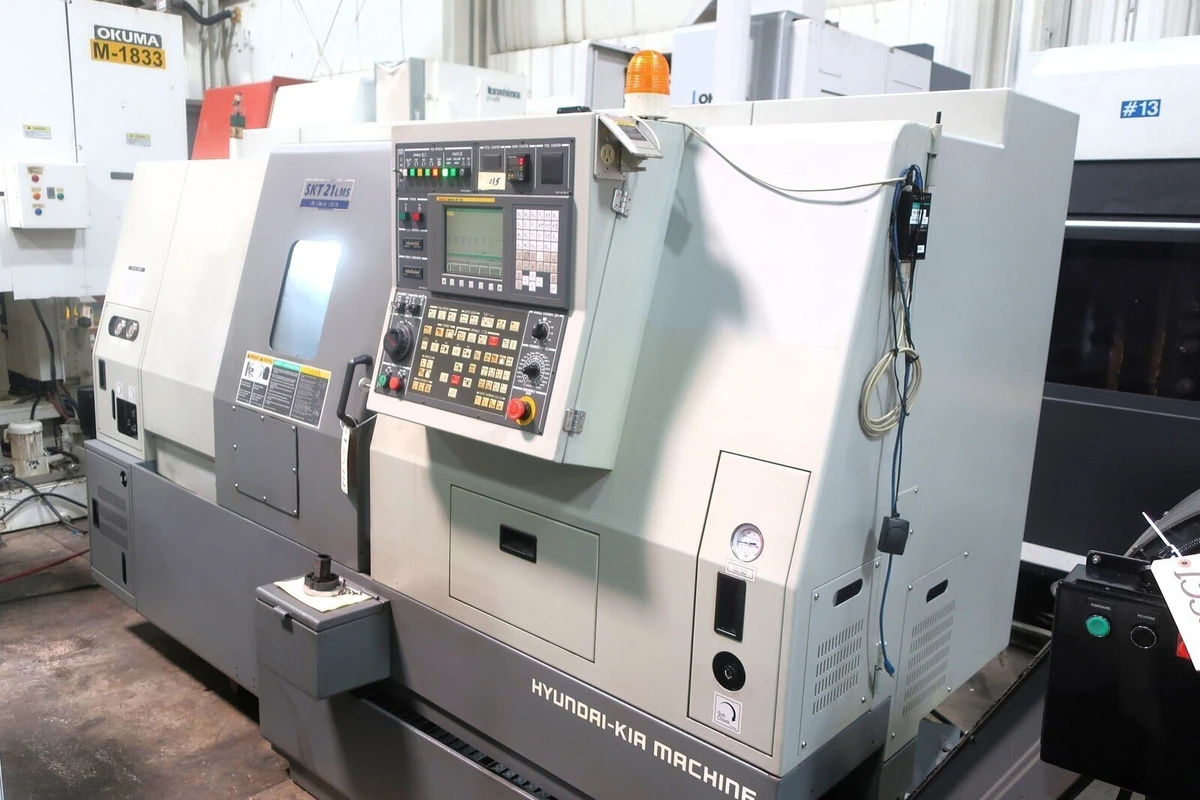

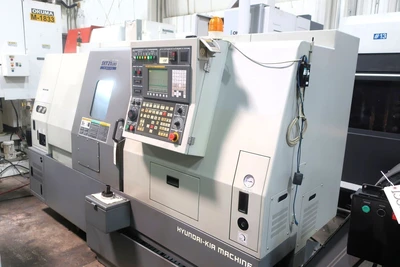

Used 2010 HYUNDAI KIA SKT21LMS | CNC Lathes
Have one to sell?
ConditionUsed
1 available
In used condition, offering a 21.7" swing over bed, 10.2" max turning diameter, and speeds up to 4,000 RPM. Features include dual spindles, 12-station turret, and tool presetter.
CAPACITY: SWING OVER BED / SWING OVER SADDLE 21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH 10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS 25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS) 20 / 15 HP
SUB-SPINDLE: SPEEDS 40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.) 5 / 3 HP
TURRET: NUMBER OF POSITIONS 12 STATIONS
X-AXIS TRAVEL 8.3"
Z-LONGITUDINAL 21.7"
ROTARY TOOLS: ROTARY TOOL SPEED 30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z ) 590 / 708 IPM
FEED RATE (X & Z ) 0.04 - 157 IPM

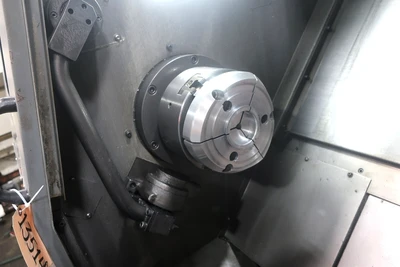

8″ 3-Jaw Chuck on Main Spindle

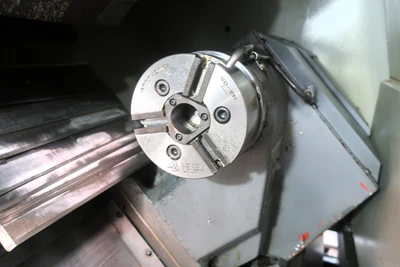

5″ 3-Jaw Chuck on Sub Spindle
Sub Spindle

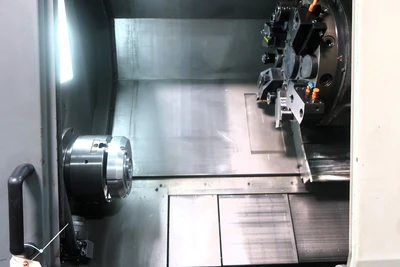

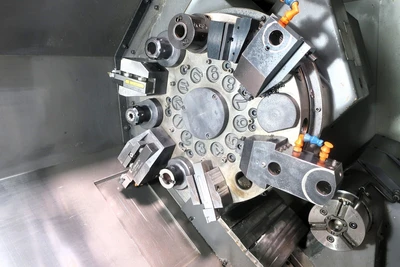

12 Station Live Tool Turret
Tool Presetter
Part Catcher

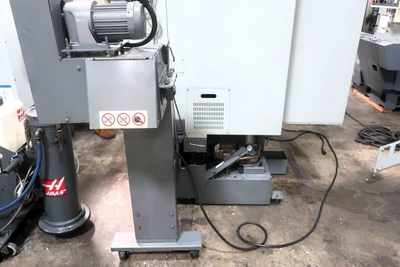

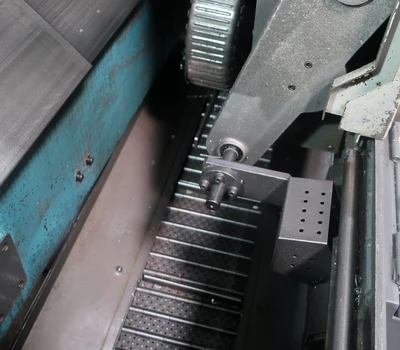

Chip Conveyor
Tooling on Turret Included as Pictured
