2012 DMG MORI ULTRASONIC 20 LINEAR
Have one to sell?
ConditionUsed
1 available

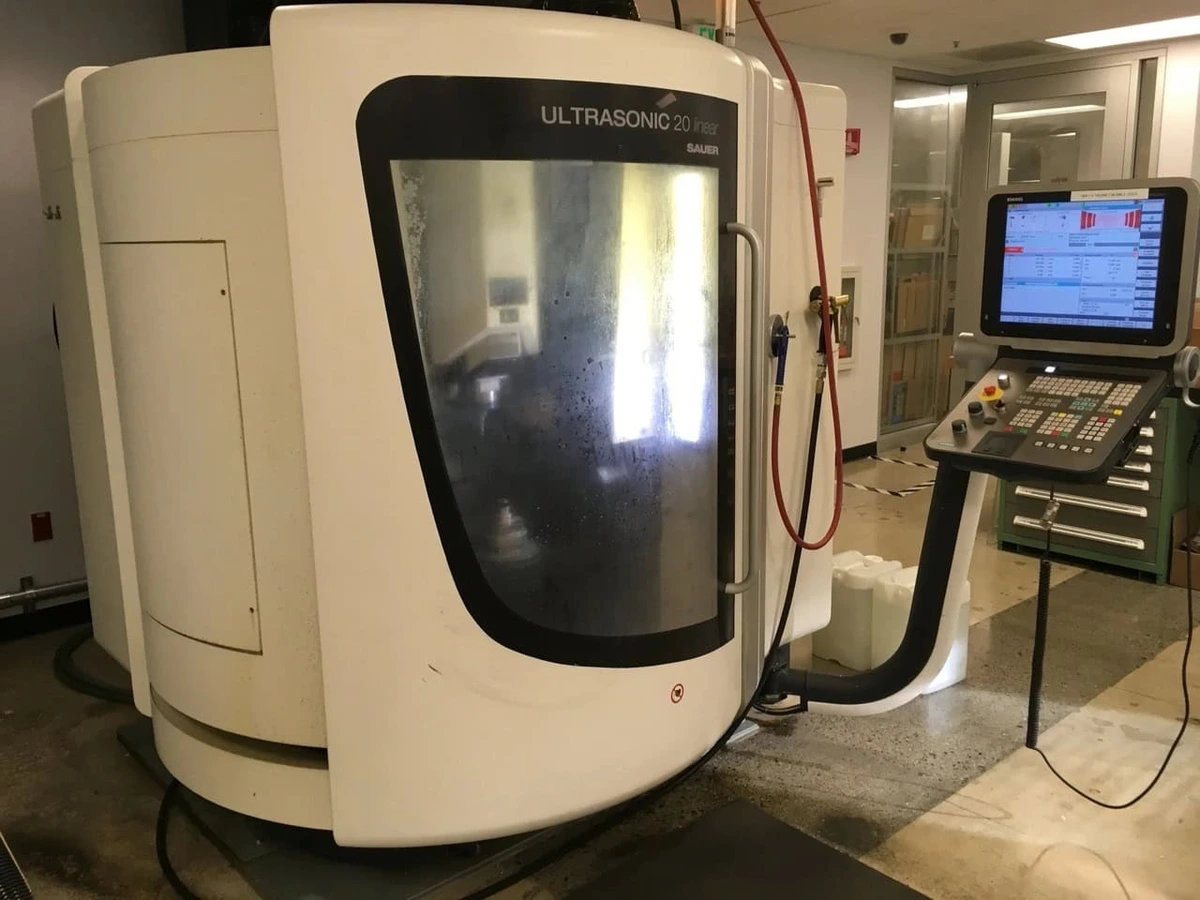

Used 5-axis machining center. Travel: X 8.7", Y 14.6", Z 11.4". 42,000 RPM spindle, HSK-40 taper, and 24-tool ATC. Includes chiller, coolant, and mist recycler.
X-Axis Travels: 8.7″
Y-Axis Travels: 14.6″
Z-Axis Travels: 11.4″
Spindle Speed: 42,000 RPM.
Taper: HSK-40.
ATC Capacity: 24 tools.
Axis: 5-Axis
Max. Workpiece Weight: 33.1 lbs.
Max. Workpiece Dimensions: 11.9″ (length), 8.7″ (width), 11.1″ (height)
Full simultaneous 5-Axis

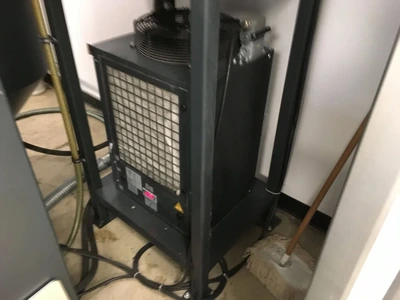

Chiller
Coolant Recycler
Mist Recycler
