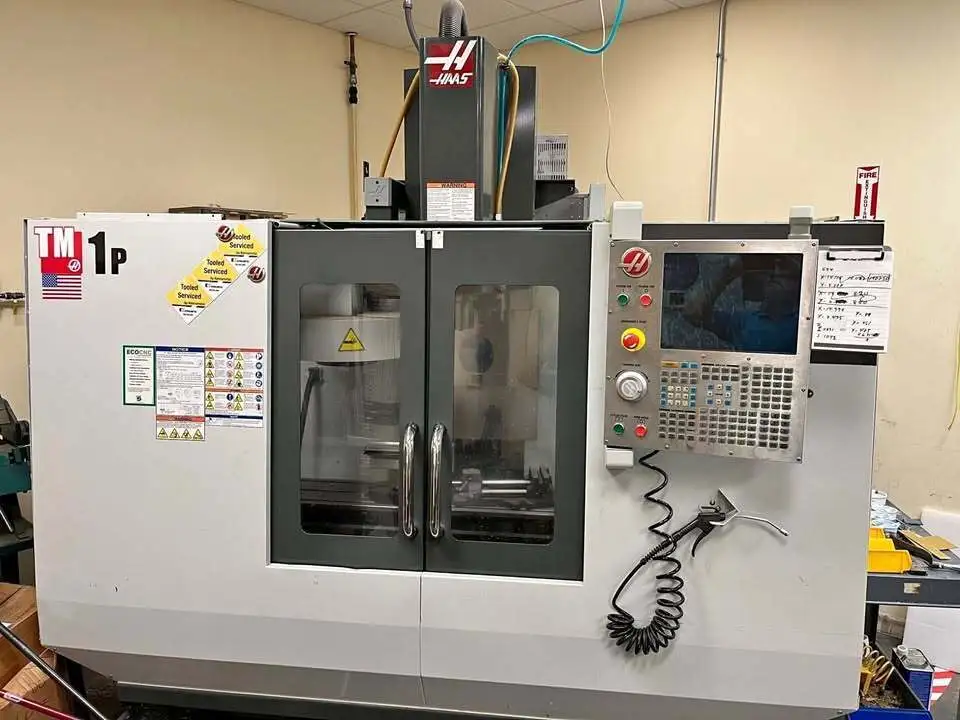

2011 HAAS TM-1P

X Axis 30.00 in
Y Axis 16.00 in
Z Axis 16.00 in
Spindle Nose to Table (~ max) 20.0 in
Spindle Nose to Table (~ min) 4.0 in
Spindle S.A.E METRIC
Max Rating 7.5 hp
Max Speed 6000 rpm
Max Torque 33.0 ft-lbf @ 1200 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Cooling Air Cooled Air Cooled

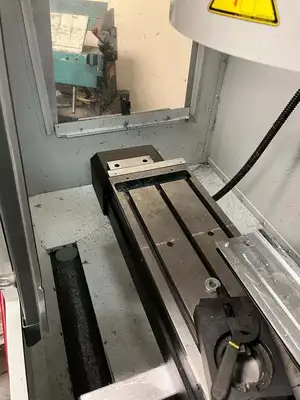

Table S.A.E METRIC
Length 47.8 in
Width 10.5 in
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 4.00 in 102 mm
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 350 lbs
Feedrates S.A.E METRIC
Max Cutting 400 ipm
Rapids on X 400 ipm
Rapids on Y 400 ipm
Rapids on Z 400 ipm
Axis Motors S.A.E METRIC
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 10
Max Tool Diameter (full)** 3.5 in
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 5.70 s
Chip-to-Chip (avg) 6.50 s
