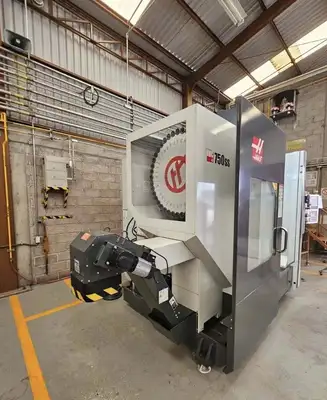

# Axis 5

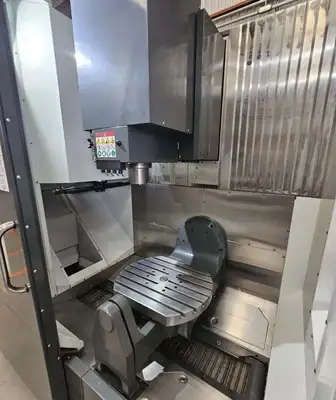

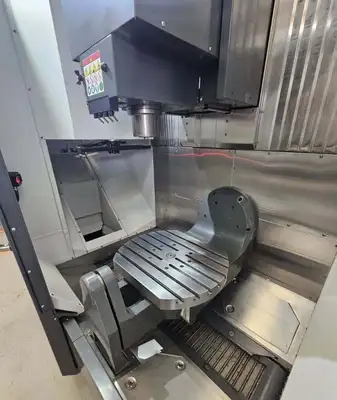

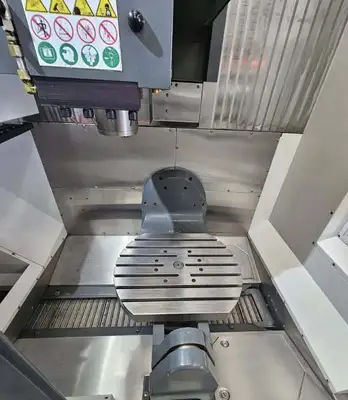

Table Size 19.7" Platter
Max Table Load 660 lb 299.37 kg
X-Axis Travel 30 in 762.00 mm
Y-Axis Travel 20 in 508.00 mm
Z-Axis Travel 20 in 508.00 mm
B Axis Rotary -35° to +120°
C Axis Rotation 360°
Rapid Traverse Rate (X/Y/Z) 900 ipm
Spindle Taper CAT 40
Spindle Speed 15,000 rpm
Main Motor 30 hp
ATC Capacity 40
Coolant Thru Spindle yes
Machine Dimensions 168" x 93" x 100"
Machine Weight 15000 lb 6,803.88 kg

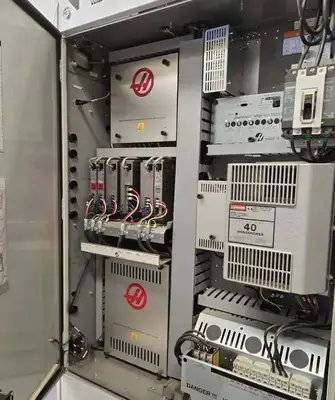

- Haas CNC Control
- 15,000 rpm Upgraded Spindle Speed
- Wireless Intuitive Probing System
- Auxiliary Coolant Filter
- Coolant Thru Spindle - 300 psi
- Belt Type Chip Conveyor
- Through Tool Air Blast
- 1GB Program Memory
- Dynamic Work Offsets
- Tool Center Point Control
- Ethernet
- Second Home Position
- High Speed Machining
- Rigid Tapping
- Remote Jog Handle, Color LCD
