2012 DOOSAN LYNX 220LC
Have one to sell?
ConditionUsed
1 available

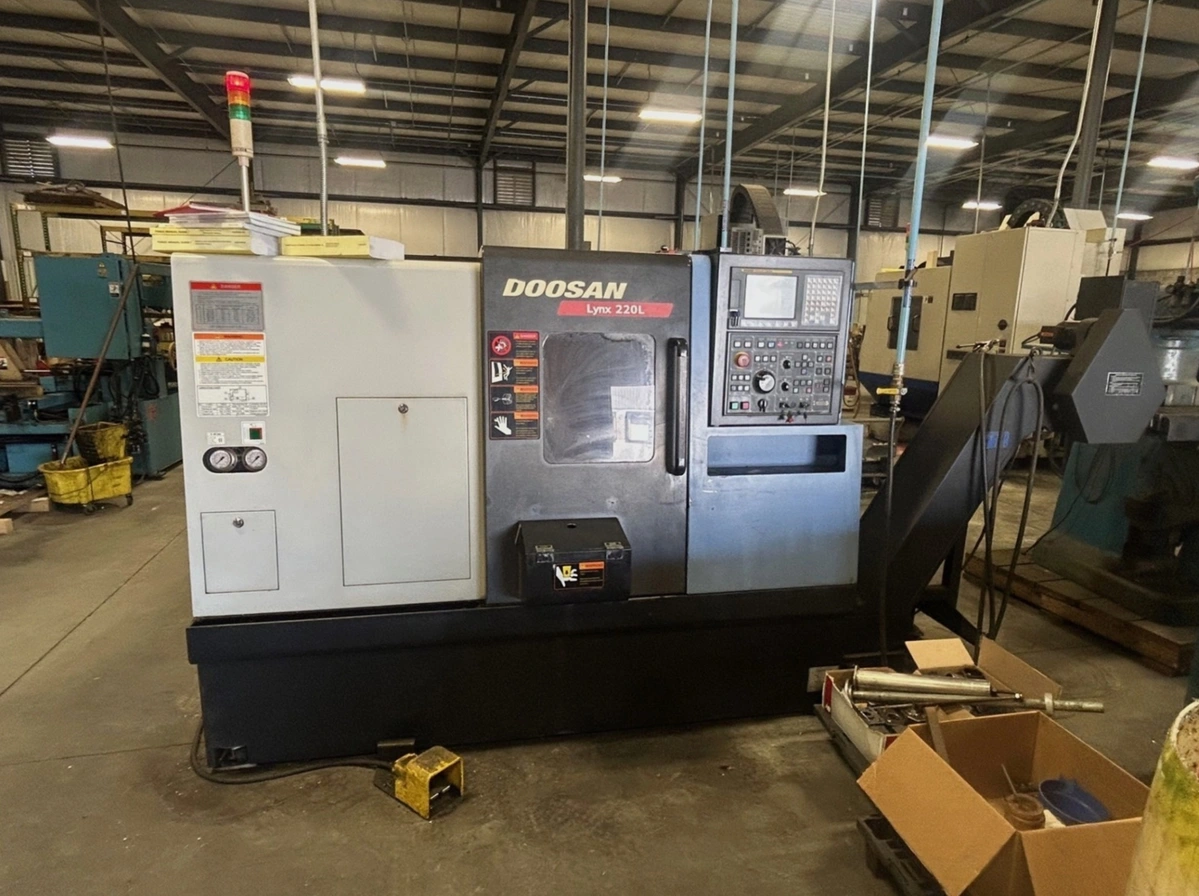

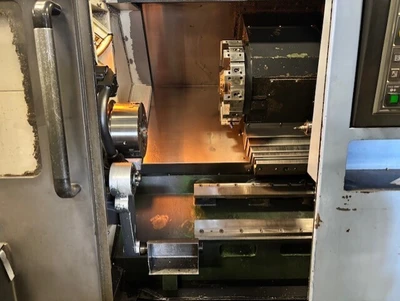

Used CNC Lathe, equipped with FANUC i Series CNC control, 8" 3-jaw hydraulic chuck, toolsetter, and parts catcher. 12-position turret, tailstock, chip conveyor included. Max spindle speed 4000 RPM, 20 HP motor.
SWING OVER BED .................... 20.08"
SWING OVER SADDLE ................. 11.42"
MAX. TURNING DIAMETER ............. 12.6"
MAX. TURNING LENGTH ............... 20.7"
MAX. BAR WORK DIAMETER ............ 2.625"
SPINDLE SPEED ..................... 4000 RPM
SPINDLE NOSE ...................... A2-6
SPINDLE BORE ...................... 2.99"
X-AXIS TRAVEL ..................... 6.9"
Z-AXIS TRAVEL ..................... 21.7"
RAPID TRAVERSE X/Z ................ 1181/1417 IPM
NUMBER OF TOOLS ................... 12
OD TOOL SIZE ...................... 1" X 1"
BORING BAR DIAMETER ............... 1.5"
MAIN SPINDLE MOTOR ................ 20 HP
APPROX. MACHINE WEIGHT ............ 7,716 lbs.

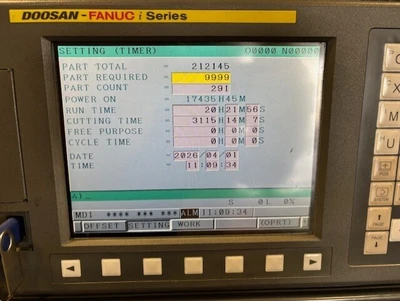

- FANUC "i" SERIES CNC CONTROL

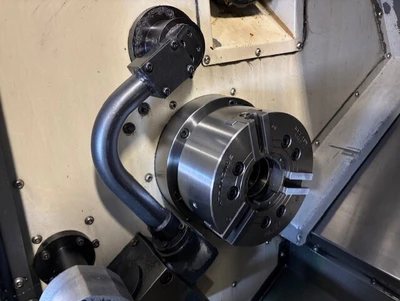

- 8" 3-JAW HYD. CHUCK
- TOOLSETTER
- PARTS CATCHER

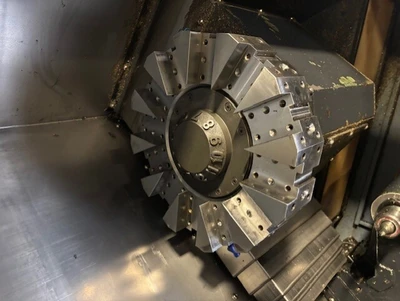

- 12 POSITION TURRET

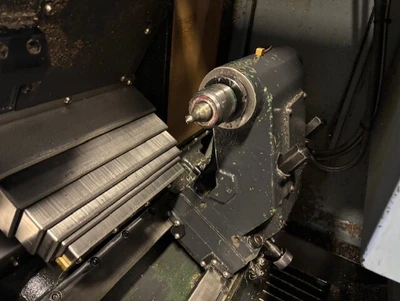

- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
