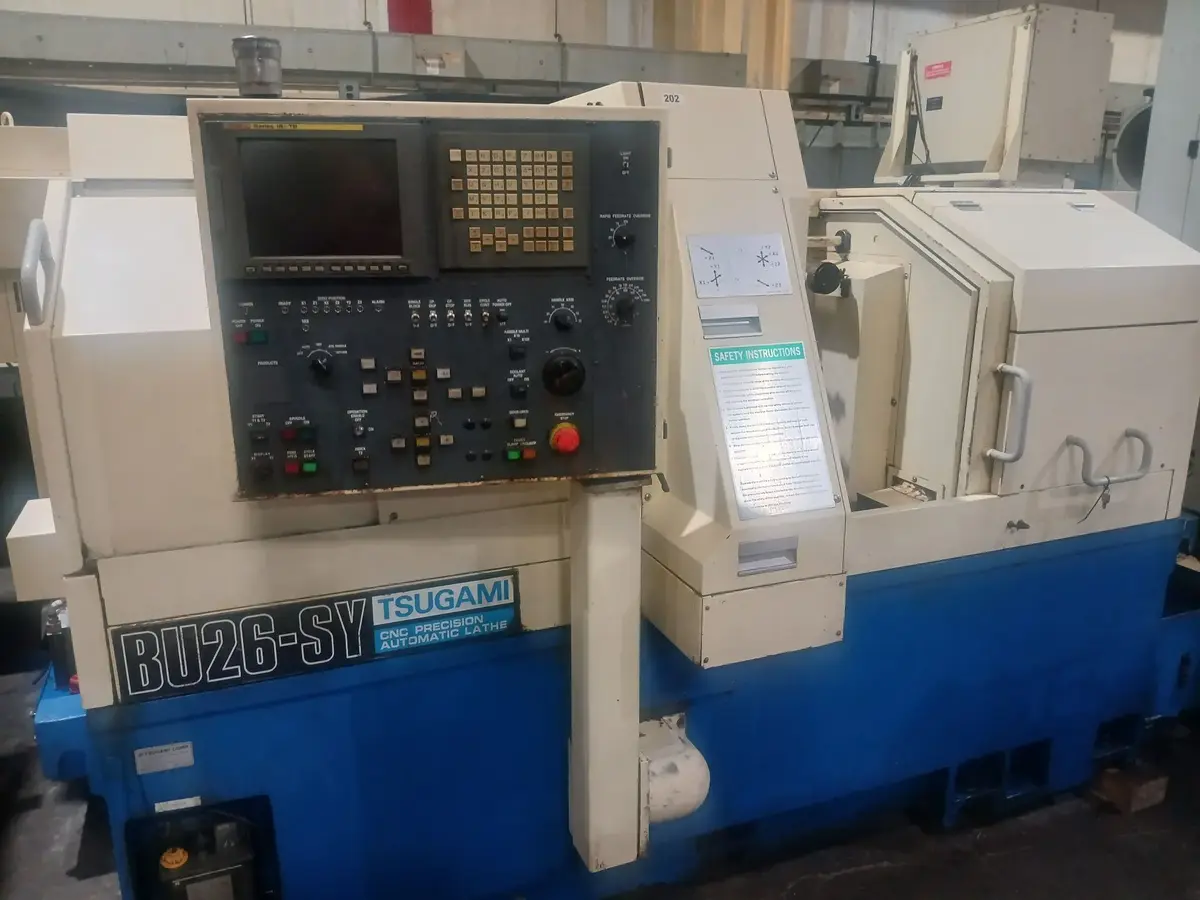

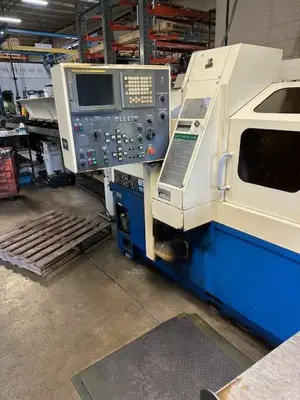

2006 TSUGAMI BU26SY
Have one to sell?
ConditionUsed
1 available
2006 TSUGAMI BU26SY in used condition, offers 26mm spindle hole, 7.3 hp power, 8 axes, and speeds up to 6000 RPM. Includes Fanuc CNC, Coolant System, Bar Loader, and various tool holders. Full C-axis control on main spindle.
Main Spindle
Bar Capacity: 1.000"
Turning Lengths: 9.842 " per Stroke
Indexing Increments: Full C-Axis (.001 deg)
Speeds: 6000 RPM
Sub-Spindle
Bar Capacity: 1.000 "
Speed: 200 - 5000
Drive Motor: 7.3 hp
Index Increment (Degrees): 5° Indexing (C Optional)
Axis Specifications
STD. Number of Axes: 8
Axis/ Travel/ Traverse rate/ Feed rate
X1 (STD.) 1.378 Inch 472 IPM 236 IPM
Z1 (STD.) 9.842 Inch 944 IPM 236 IPM
C1 (STD.) 360.000 Deg.
Y1 (STD.) 9.448 472 IPM 236 IPM
X2 (STD.) 4.330 Inch 472 IPM 236 IPM
Z2 (STD.) 5.511 Inch 944 IPM 236 IPM
Y2 (STD.) 3.149 Inch 393 IPM 236 IPM
Z3 (OPT.) 11.220 Inch 944 IPM 236 IPM
Live Tool Speed: 5000 RPM
Live Tool Motor: (HP): 15.0
Type/ Gang-Slide/ Turret
-Max. number of tools
Turning 7 8
Rotary 2 4
Square 0.500 "
Round 0.750 " 1.000 "
Rotary 0.250 " 0.500 "
Rotary tooling
Horse power .7 1.9
Speed 8000 rpm 5400 rpm
Fanuc 18iTB2 CNC Control
Full C Axis Control on Main Spindle
C Axis Indexing on Sub Spindle (5 Degree Resolution)
Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled)
LNS Hydrobar Express 332 Bar Loader
Collets and Guide Bushings Included
Side Discharge Chip Conveyor
Machine Leveling Pads.
All Available Books & Manuals.
Total Machine & Options
Estimated Tool Holders Included:
8 Station Interchangeable Tool Holders
QTY 1 - 3233-H040 - 4 Tool Turning Holder
QTY 2 - 3233-Y340 - Double Cross Drilling Head ER16
QTY 1 - 3233-Y360 - Powered Cross Drill ER25
QTY 2 - 3233-H060 - Double Axial Drilling Holder
QTY 1 - 3231-H010 – Single Axial Drill Holder
(2) 29mm Channel Sets for 1” Cap.
All Push Rods, Push Rod Channels, Flags, Collet Bearings, Collets.
Collet Set 1”, 15/16”, 7/8”, 13/16”, 25/32”
17MM Channel Set All Push Rods & Channels, Collet Bearings
