2015 HYUNDAI WIA L150LMA
Have one to sell?
ConditionUsed
1 available

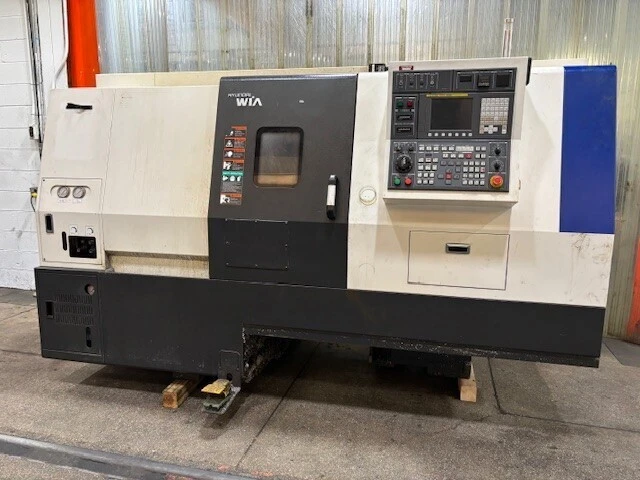

Used Multi-Axis CNC Lathe: 6000 RPM spindle, 15/10 HP motor, 12 turret stations, C-axis indexing, and 28.3" tailstock travel. Includes FANUC "i" control, 8" 3-jaw chuck, toolsetter, chip conveyor, live tools, and manuals. 9,300 lbs.
SWING OVER BED .................... 21.7"
SWING OVER CARRIAGE ............... 13.8"
MAX. TURNING DIA. ................. 10"
MAX. TURNING LENGTH ............... 20.9"
BAR CAPACITY ...................... 1.8"
SPINDLE SPEED MAX. ................ 6000 RPM
SPINDLE MOTOR (MAX./CONT.) ........ 15/10 HP
SPINDLE NOSE ...................... A2-5
C-AXIS INDEXING ................... 0.001 Degree
X-AXIS TRAVEL ..................... 8.7"
Z-AXIS TRAVEL ..................... 21.7"
NUMBER OF TURRET STATIONS ......... 12
TOOL SIZE OD ...................... 1" X 1"
TOOL SIZE ID ...................... 1.3"
LIVE TOOL MOTOR ................... 5/3 HP
MILLING TOOL SPEED ................ 4000 RPM
COLLET SIZE ....................... ER32
TOOL TYPE ......................... VDI 40
TAILSTOCK TAPER ................... MT#4
TAILSTOCK QUILL DIA. .............. 2.2"
TAILSTOCK TRAVEL .................. 28.3"
APPROX. MACHINE WEIGHT ............ 9,300 LBS

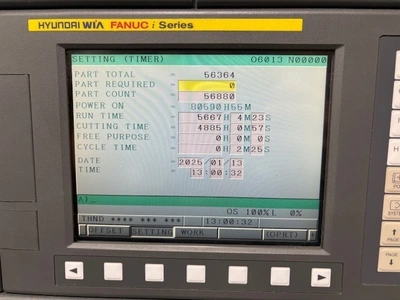

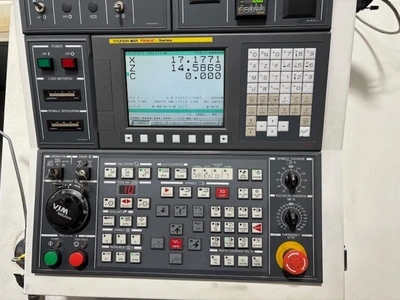

- FANUC "i" SERIES CONTROL

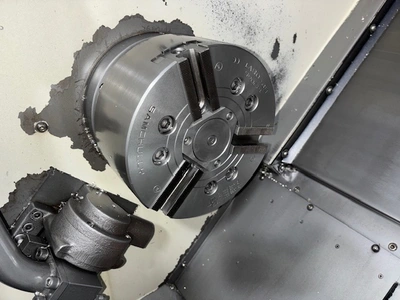

- 8" HS-08 SAMCHULLY 3-JAW HYDRAULIC CHUCK
- TOOLSETTER

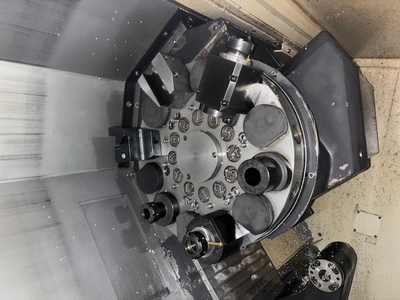

- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR

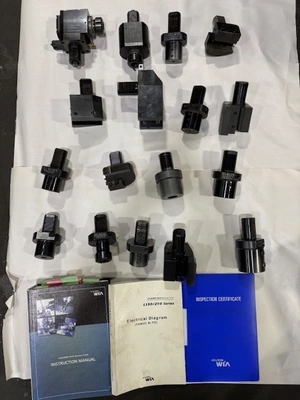

- (4) LIVE TOOLHOLDERS
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
