| X | 51.8" | 1,315.7 mm |
| Y | 24.9" | 632.46 mm |
| Z | 23.9" | 607.06 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 32 | 32 |
| Taper | 50 | 50 |
| Table-W | 23.9" | 607.06 mm |
| Table-L | 55.8" | 1,417.3 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 140" X 141" X 113" TALL | 140" X 141" X 113" TALL |
| Weight | 18,500 LBS | 18,500 LBS |

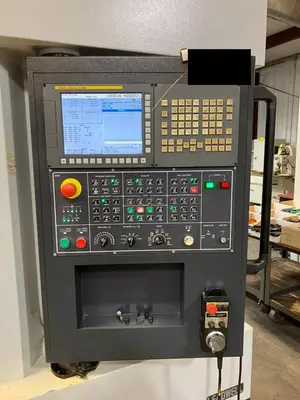

* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i
* REMOTE JOG HANDLE (MPG)
* BOX WAYS ON ALL AXES
* TWO SPEED GEARBOX
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT
* PREPPED FOR THROUGH SPINDLE COOLANT

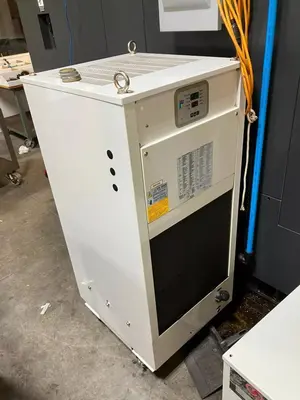

* SPINDLE OIL CHILLER
* CHIP CONVEYOR
* 32 TOOL CAPACITY SIDEMOUNT CHANGER
* 34 HORSE POWER SPINDLE MOTOR
This equipment has been sold. Similar equipment available now is shown below.
