2018 LEADWELL MCV-1300
Have one to sell?
ConditionUsed
1 available

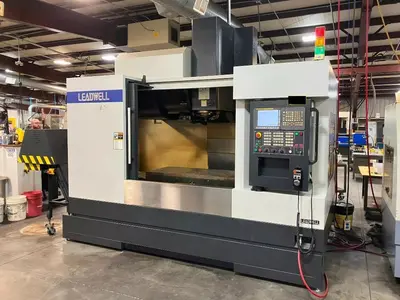

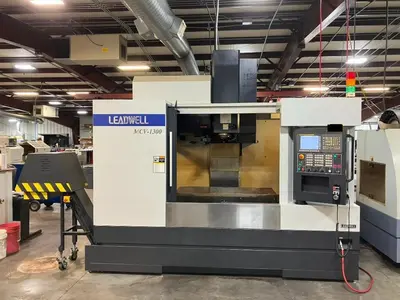

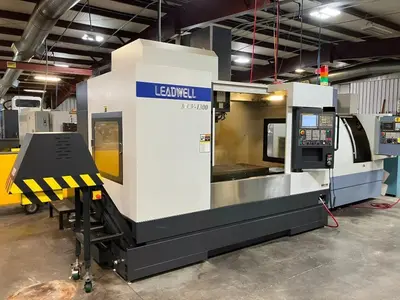

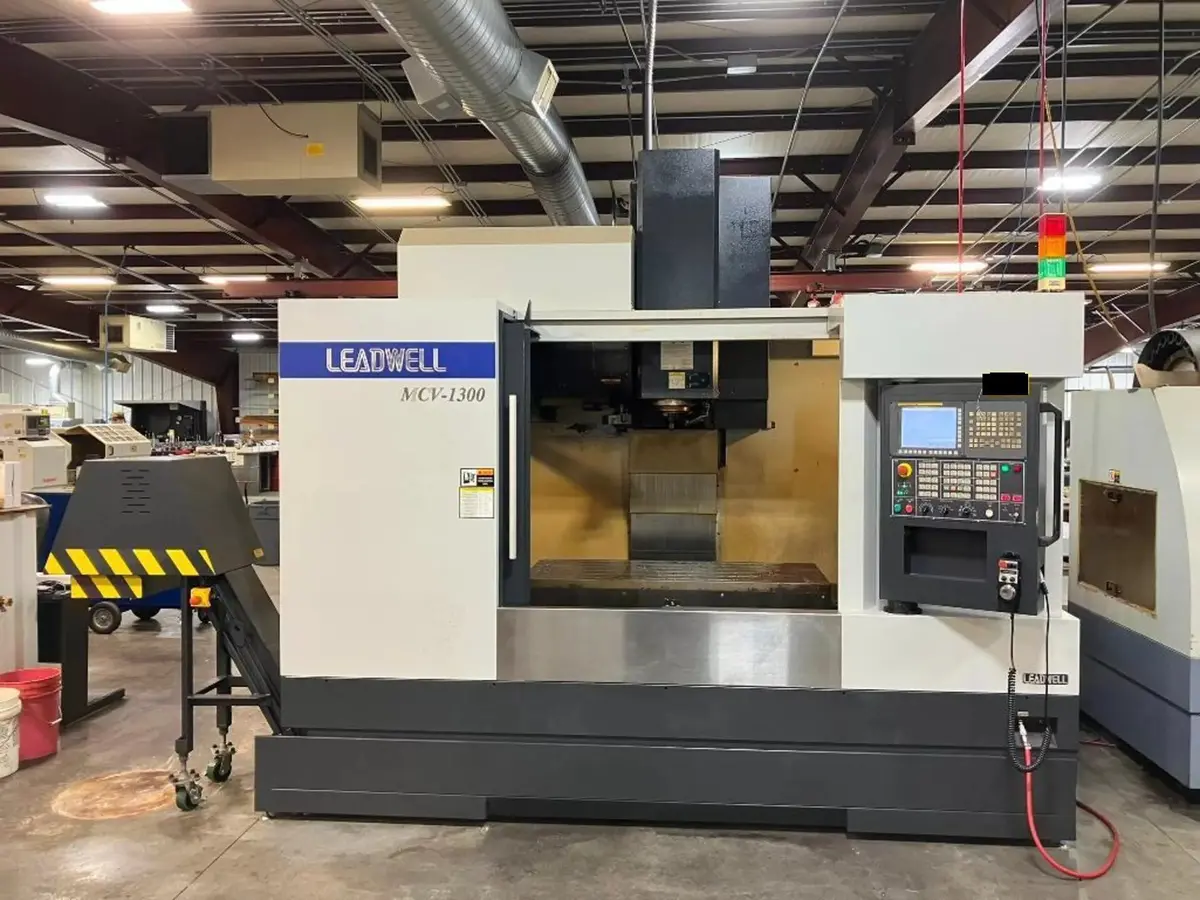

Vertical Machining Center, used. Specs: X 51.8", Y 25", Z 24", 34 HP, 10,000 RPM, 32 ATC, CAT 50, with FANUC 0iMF CNC, remote jog, box ways, coolant tank, spindle chiller, chip conveyor. 3-axis, rapid traverse 787 IPM.
SPINDLE NOSE TO TABLE TOP ............... 5.9" TO 29.9"
DISTANCE FROM SPINDLE CENTER TO COLUMN .. 25"
MAX TABLE LOAD .......................... 3,000 LBS
RAPID TRAVERSE RATES (X & Y/ Z) ......... 787 IPM

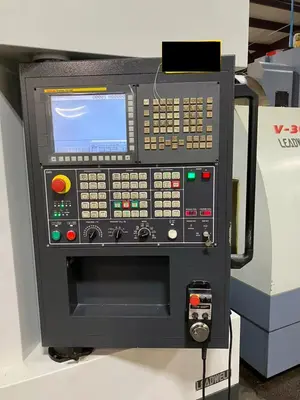

* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i
* REMOTE JOG HANDLE (MPG)
* BOX WAYS ON ALL AXES
* TWO SPEED GEARBOX
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT

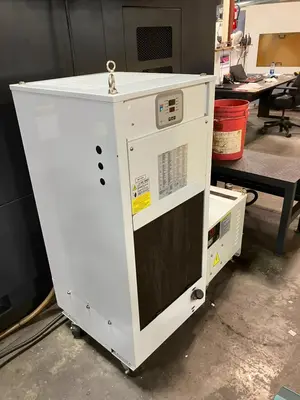

* SPINDLE OIL CHILLER
* CHIP CONVEYOR

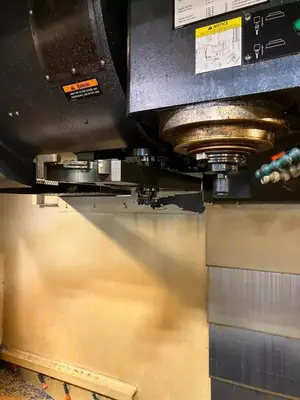

* 32 TOOL CAPACITY SIDEMOUNT CHANGER
* 34 HORSE POWER SPINDLE MOTOR
