| X | 25" | 635 mm |
| Y | 15" | 381 mm |
| Z | 20" | 508 mm |
| Power | 18 hp | 13.4 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |
| Dimensions | 73" x 77" x 101.5" | 73" x 77" x 101.5" |
| Weight | 6,500 lbs | 6,500 lbs |
Max Table Load Capacity 750 lb
X-Axis Rapid Traverse Rate 1,000 in/min.
Y-Axis Rapid Traverse Rate 1,000 in/min.
Z-Axis Rapid Traverse Rate 800 in/min.

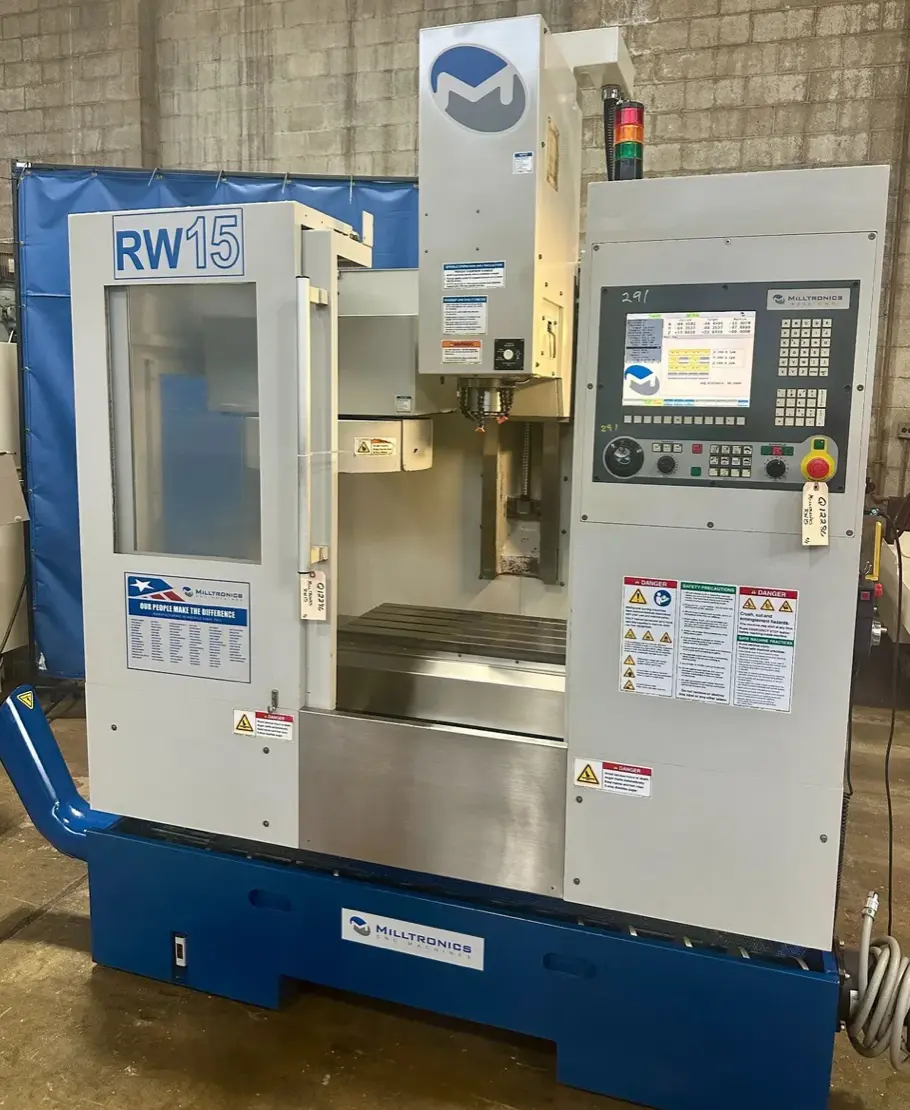

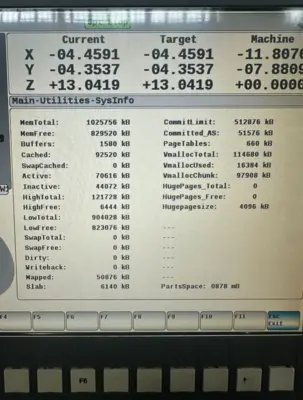

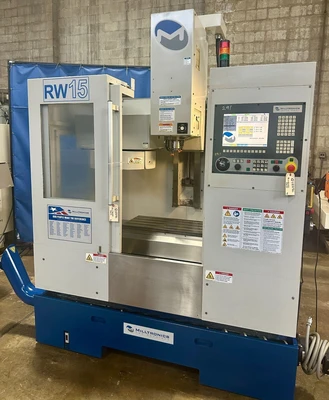

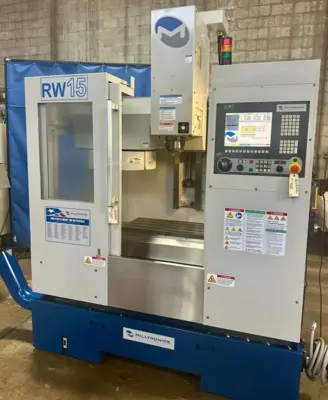

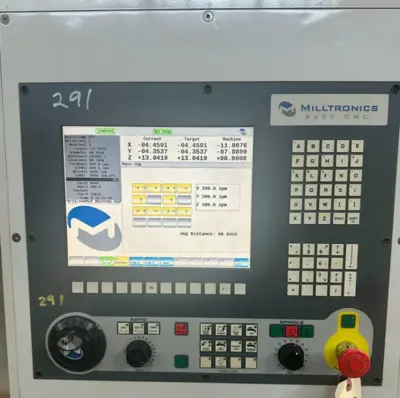

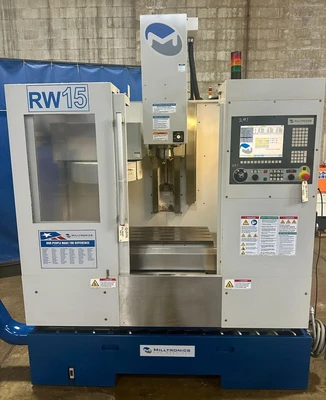

Milltronics 8200 CNC Control, 16,000 RPM Spindle, Coolant Tank w/ Chip Auger.
This equipment is currently unavailable. Similar equipment available now is shown below.
