2021 DOOSAN DNM 4500S
Have one to sell?
ConditionUsed
1 available

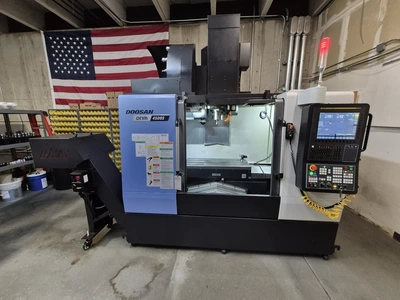

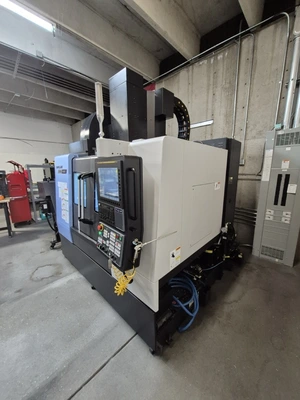

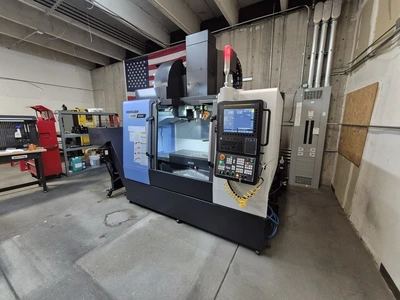

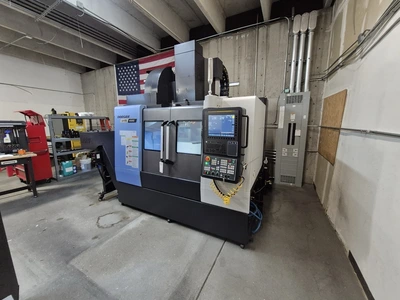

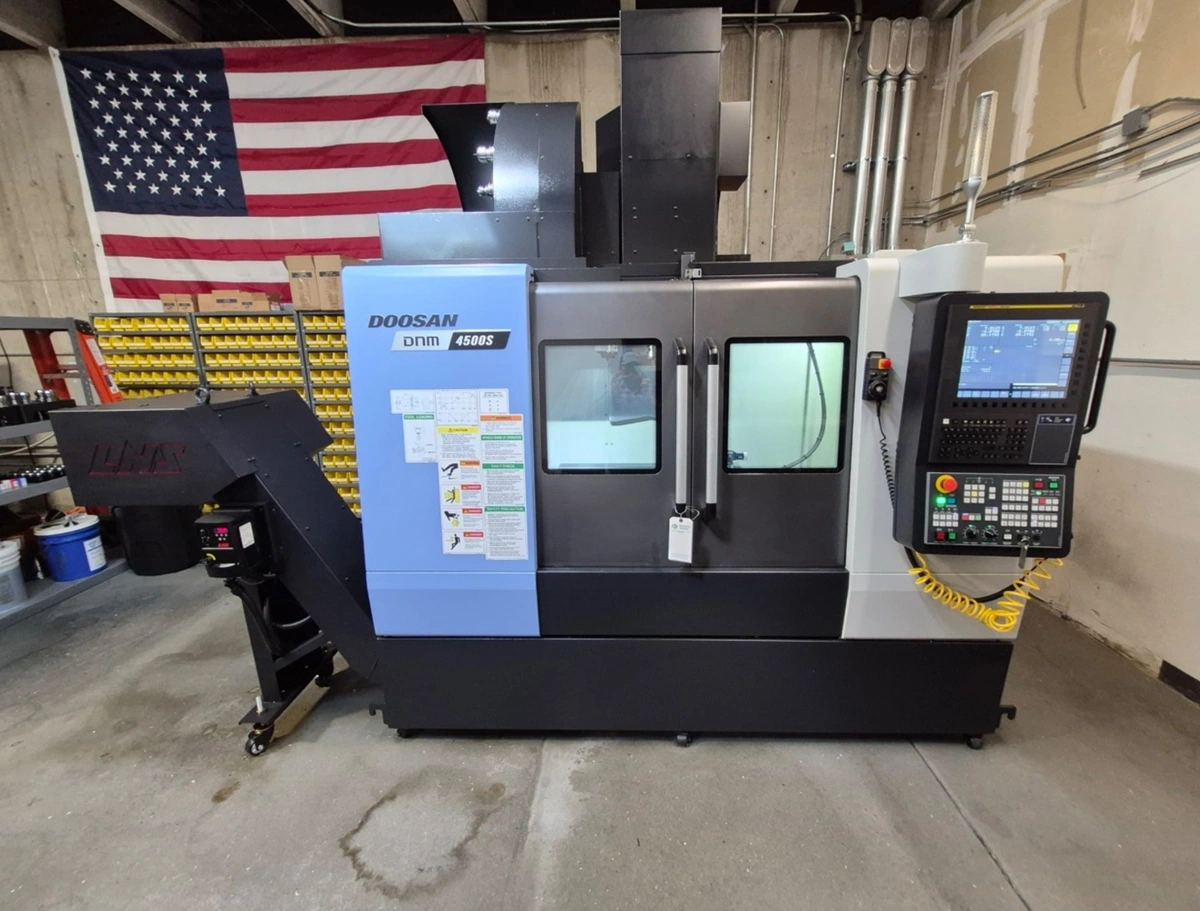

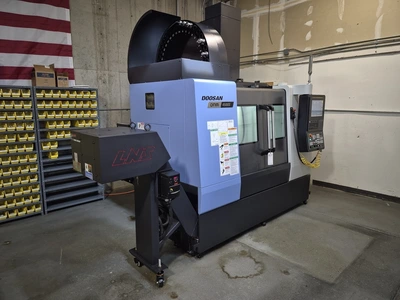

Used Vertical machining center. Features include 31.5" X, 17.7" Y, and 20.1" Z travel, 15000 rpm spindle speed, and 40-tool capacity. Equipped with FANUC CNC, touch screen.
Travel Distance X-axis: 31.5 in
Travel Distance Y-axis: 17.7 in
Travel Distance Z-axis: 20.1 in

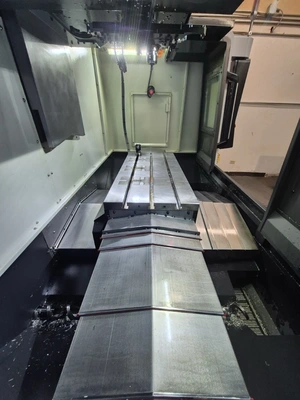

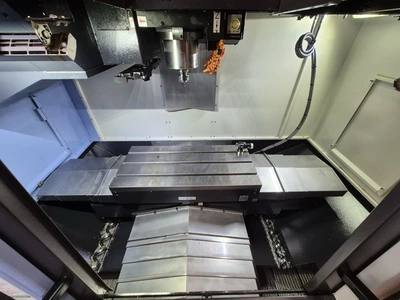

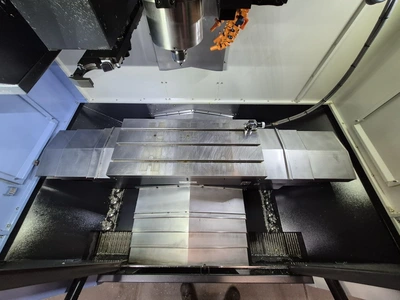

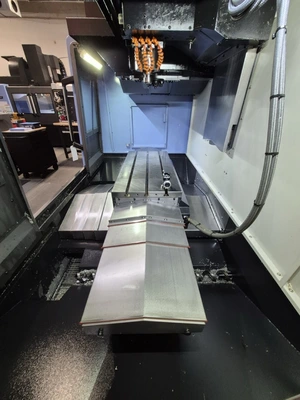

Table Size: 39.4 x 17.7 in
Max Load: 1320 lbs
Spindle to Table Distance: 5.9 – 26 in

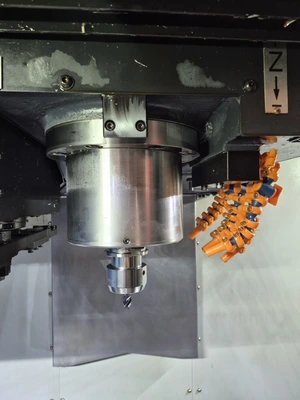

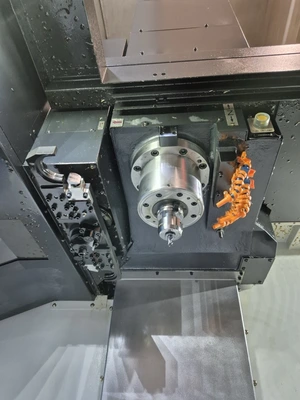

Spindle Speed: 15000 rpm
Power: 25 Hp
Torque: 87 ft-lbs

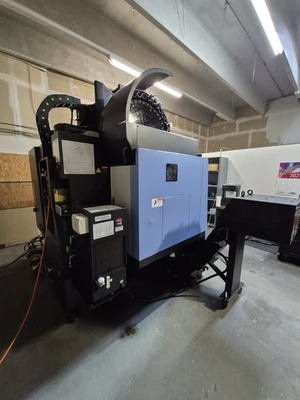

Tool Changer Capacity 40
Max Diameter 3.2/4.9 in
Max Length: 11.8 in
Tool Shank: 40 CAT
Approx Dims: 103.7″ x 49.3″ x 117.5″
Approx Weight: 11023 lbs

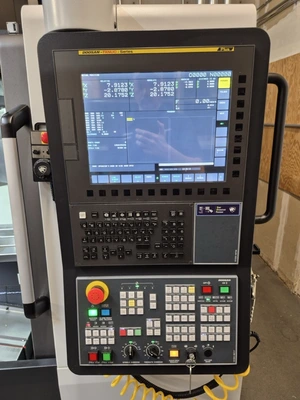

FANUC 0I-PLUS CNC CONTROL
TOUCH SCREEN INTERFACE

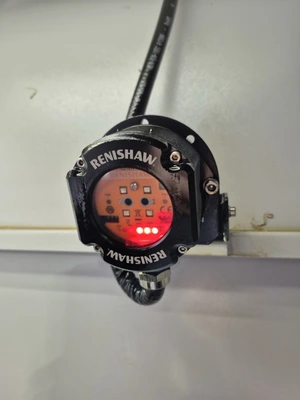

RENISHAW OMP60 OPTICAL PROBE

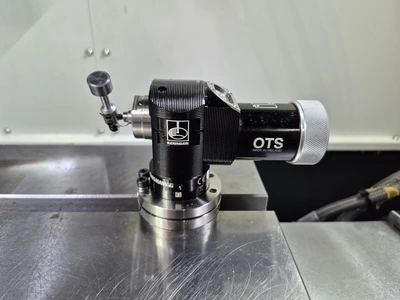

OTS TOOL SETTER
THROUGH SPINDLE COOLANT (TSC)
SPINDLE CHILLER UNIT

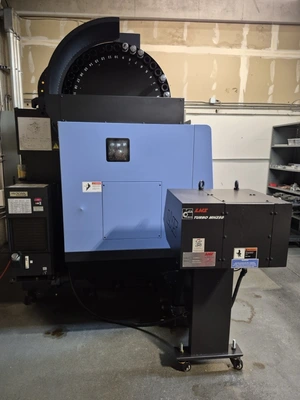

LNS TURBO HINGE-BELT CHIP CONVEYOR
