2010 MILLTRONICS ML40/160
Have one to sell?
ConditionUsed
1 available

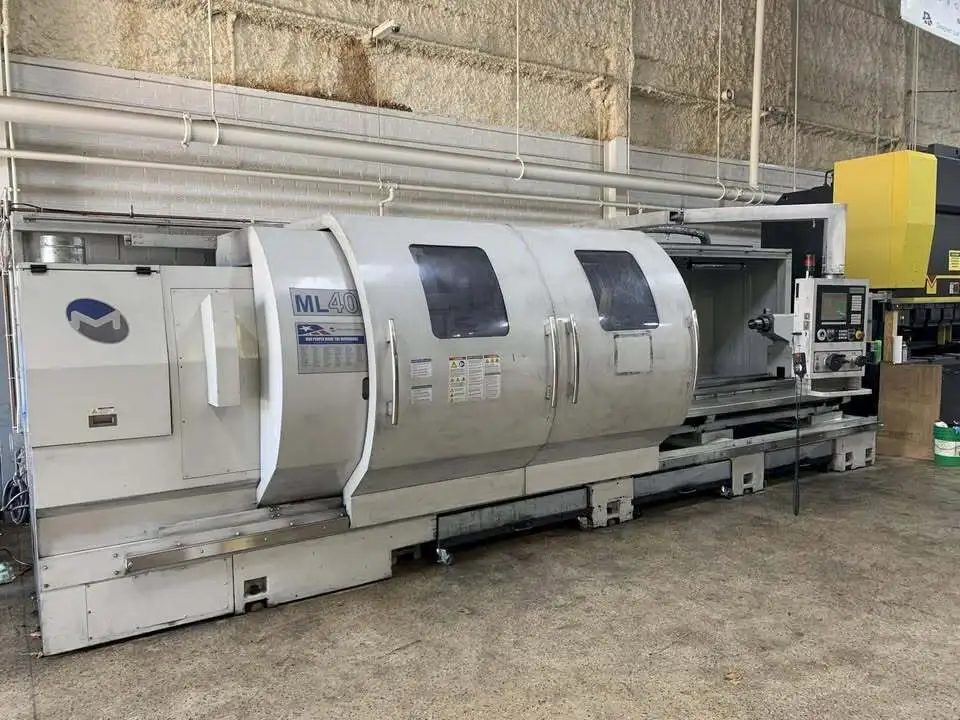

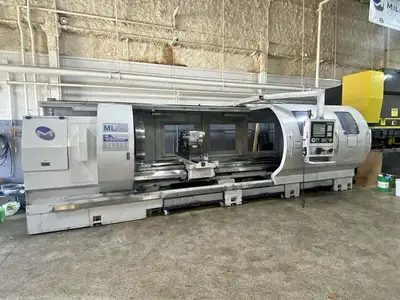

Used CNC Lathe for sale. Features 39.7" swing over bed, 50" over gap, Milltronics 7200 CNC control, 12" display, 14" spindle bore, 12-tool turret, and more.
Swing over bed - 39.7"
Swing over gap - 50"
Swing over cross slide - 26.6"
Gap distance - 14.6"
Center distance - 160"
X-Axis travel - 21"
Z-Axis travel - 160"
Spindle bore - 14"
Spindle nose - A2-20
Spindle speed range low - 10 to 375 rpm
Spindle speed range high - 10 to 500 rpm
2-Speed AC Spindle motor (1 min / 30 min) - 35/25 HP

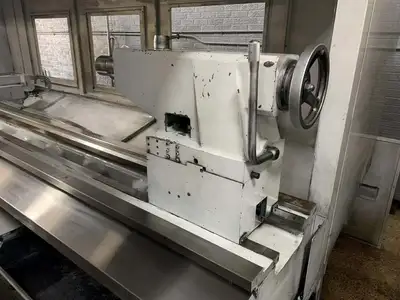

Tailstock quill travel - 9"
Tailstock quill diameter - 4.92"
Tailstock quill taper - MT6
Automatic turret - 12 Tools
Tooling size - 1"
Tool selection - bi-directional
X,Z axis rapid traverse rate - 500 ipm
Max cutting feed rate - 100 ipm
Machine height - 90"
Floor space - 272" L x 110" D
Machine weight, approx - 29,000 lbs.
** Not presently equipped with coolant pump or chiller**

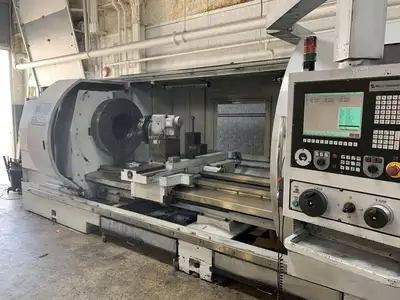

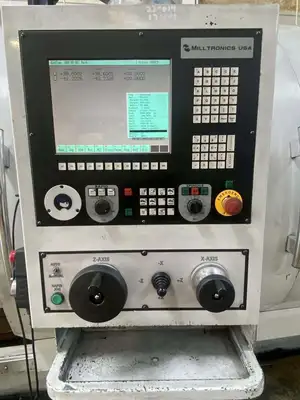

Milltronics 7200 Conversational CNC Control
12" LCD Active Matrix Color Display
14” Spindle Bore ($90,000 option back in 2010)

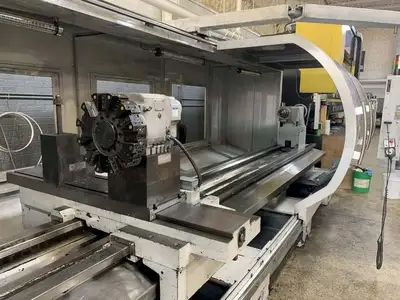

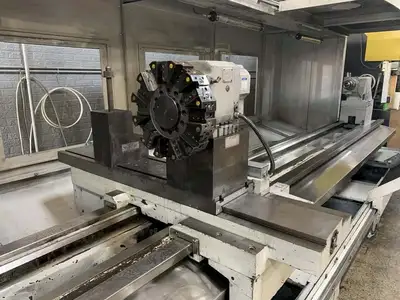

12 Station Front Mount Pragati Turret
Software Package A (Thread Chasing, Constant Surface, Rigid Tap)
High Torque AC Digital Servo Drives
Edit Lockout Key
End of Cycle Light
Work lights
Remote Handwheel
Rear Mounted Chuck Flange with A2-20 mount (same as front)

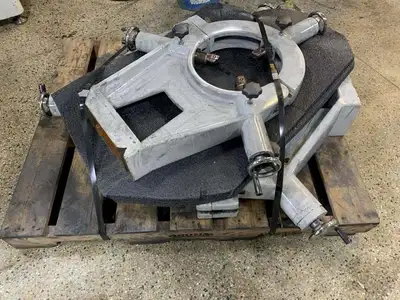

50-300mm Steady Rest
250-500mm Steady Rest
31.5” 3-Jaw Chuck (no jaws)
Live Center
Automatic Metered Lubrication
Heavy Duty Metal Enclosure with Sliding Front Door
Chip Drawer Containment System
