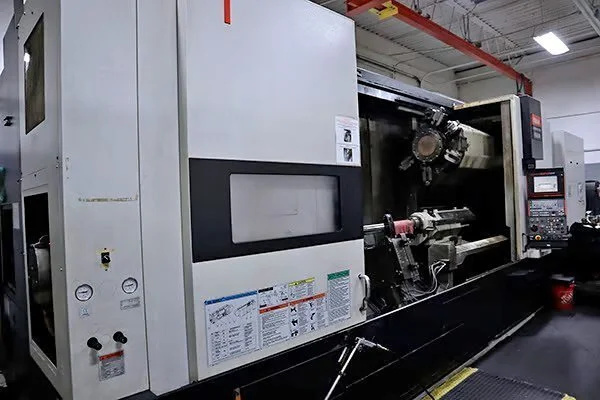

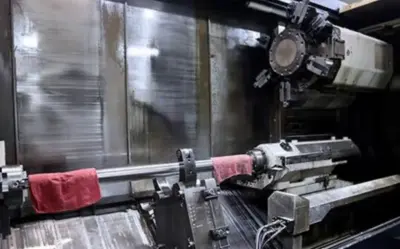

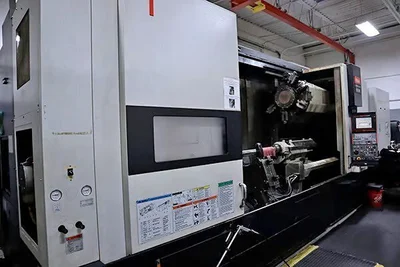

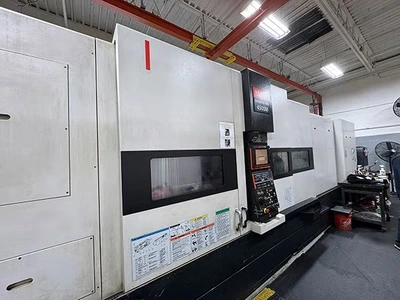

2010 MAZAK CYBERTECH TURN 4500
Have one to sell?
ConditionUsed
1 available
Used Multi-Axis CNC Lathe with Matrix Nexus Control, 21" Kitagawa Chuck, chip conveyor, and oil chiller. Features 33.88" max swing, 50 HP spindle, and 12 tool positions.
Maximum Swing 33.88"
Max Turning Diameter 31.88"
MAXIMUM CUTTING LENGTH 120"
Main Spindle Bore/Max Bar Capacity 5.5"
Maximum Swing Over Cross Slide 27.5"
X-Axis Travel 21.375"
Z-Axis Travel 123.25
W-Axis Travel 100.39"
Main Spindle Chuck Size 21"
Main Spindle Speed 1,600 RPM
Main Spindle Horsepower 50 HP
Upper Turret Tool Positions 12
Dimensions 284" X98" X111"

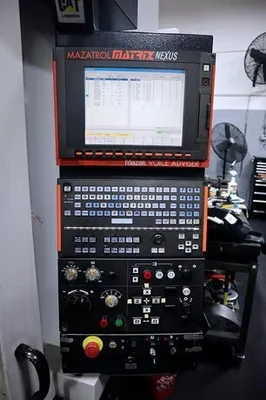

Matrix Nexus Control
21" Kitagawa Chuck
2 Position boring Bar Holder

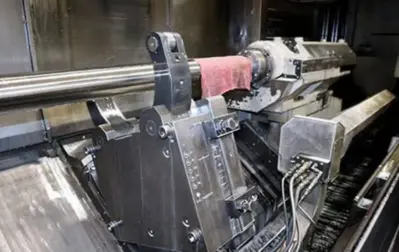

Hydraulic Steady
Tailstock
Chip Conveyor
Oil Chiller
12 Position Turret
High Pressure Pump
Remote Jog Handle
Deep Hole Boring with Automatic Changer
Auto Tool Measuring system
EIA Spiral & EIA 3D Comp
Rotation with Geometric & Scaling EXT Data I/O
Thread & Inverse Time
Auto TLM with Polar Coordinates Input
Comparison Stop & G54.1 600 Variable Offsets
Tilted Work Plane
