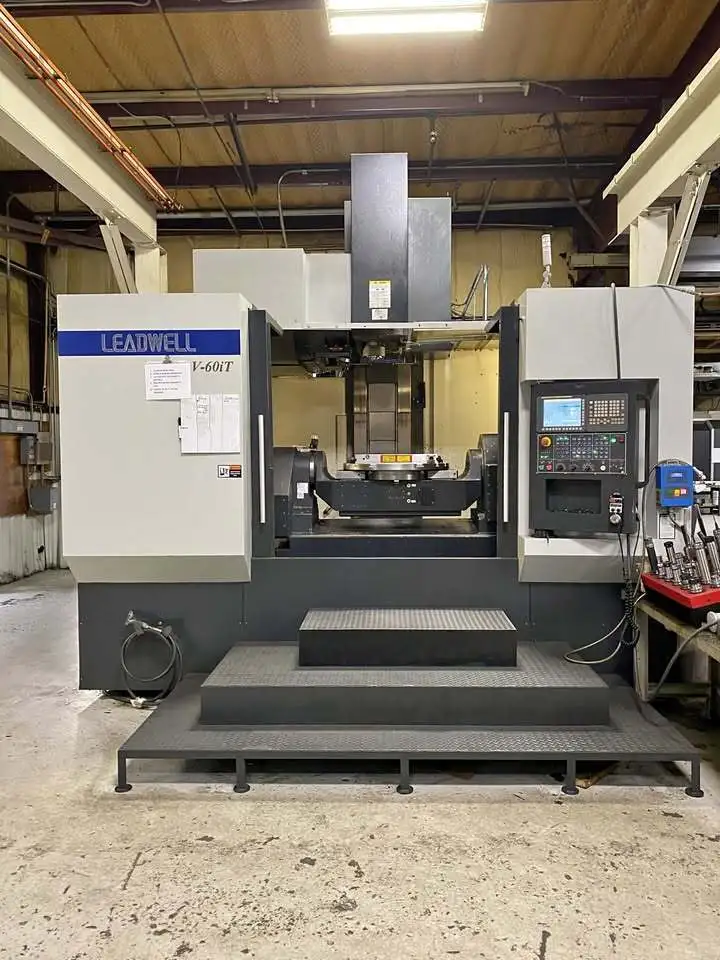

2018 LEADWELL V-60IT
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center features 5-axis capability, 15,000 RPM spindle, and a 40-tool changer. Equipped with Fanuc 0iMF control, Renishaw NC4.
X-Axis Travel: 50"
Y-Axis Travel: 40"
Z-Axis Travel: 30.8"
Number of Axis: 5
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40 / BT 40 Dual Contact
Spindle Motor: 35 HP / 47 HP Peak
Automatic Tool Changer: 40 Tools

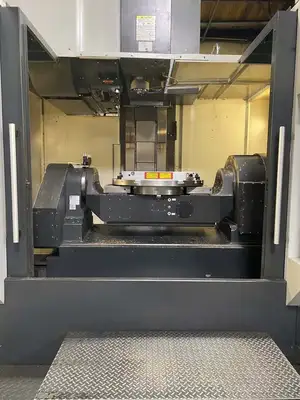

Rotary Table Size: 24.8" / 630 mm
Max Part Swing at 0°: 39"
Max Part Swing at 90°: 32"
Max Part Height at 90°: 24.2"
Table Max Load at 0°–45°: 1,102 lbs
Table Max Load at 60°–90°: 772 lbs
A-Axis Tilting Range: +120° / -30°
C-Axis Rotation: 360°
Rapid Traverse X/Y: 1,181 IPM
Rapid Traverse Z: 787 IPM
Coolant Through Spindle: 290 PSI CTS
Primary Voltage: 440V
Secondary Transformer: 220V
Fanuc 0iMF Control
200 Block High Speed Package
AICC II
Jerk Control
Smooth Tolerance Control
Machining Quality Level & Machining Condition
Renishaw NC4 F230-170 Non-Contact Tool Setter
Renishaw MP-60 Probe with CT40 Shank
Inspection Plus
Programmable Air Blast Through Coolant Nozzle
Wash Down Gun
290 PSI Coolant Through Spindle
Air Through Spindle / Tool via M11
Spindle Oil Chiller
Spindle Air Blow
Flood Coolant Unit
Spindle Coolant Ring
Base Wash
Dual Screw Type Chip Augers
Chip Conveyor
Full Guarding
Alarm & Work Light
Electrical Cabinet Heat Exchanger
Laser Calibrated for Full Travel Accuracy
