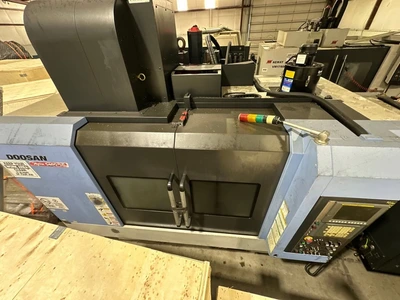

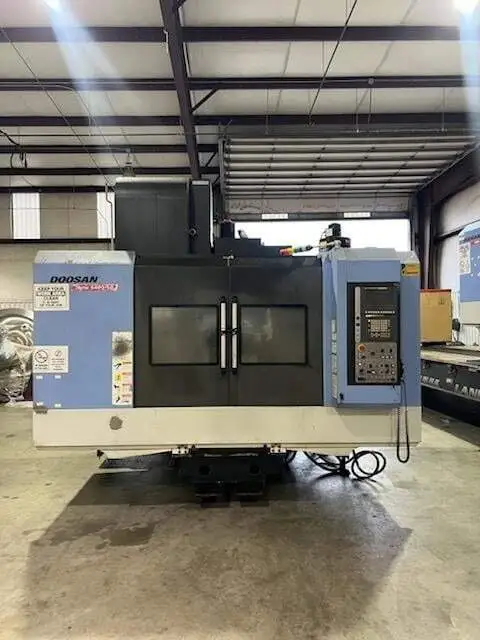

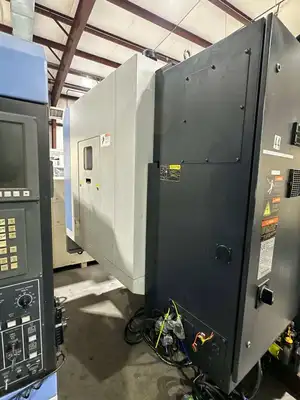

2012 DOOSAN MYNX 5400/50
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. X/Y/Z Travel: 40.2" x 21.3" x 20.9". Table: 47.2" x 21.3", Load: 2200 lbs. BT-50 Spindle, 8000 RPM, 24-Station ATC. Machine: 208"L x 134"W x 118"H, 15,400 lbs.

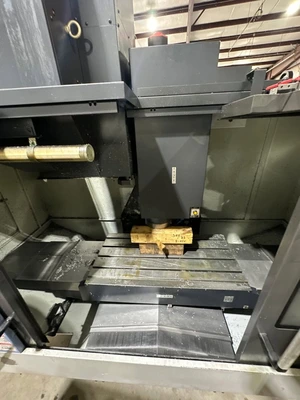

Travel & Table
X-Axis Travel: 40.2″ (1020 mm)
Y-Axis Travel: 21.3″ (540 mm)
Z-Axis Travel: 20.9″ (530 mm)
Table Size: 47.2″ × 21.3″ (1200 × 540 mm)
Max Table Load: 1000 kg (2200 lbs)
Spindle
Spindle Taper: BT-50
Spindle Speed: 8,000 RPM
Motor Power: Typically 15 kW (20+ HP) class
Coolant: Through-spindle coolant available on many units
Tooling
Tool Changer: 24-station ATC (CAM / chain type)
Feed & Performance
Rapid Traverse: Typically ~30 m/min (1,181 in/min) axes depending on configuration
Overall Machine Size & Weight (approx.)
Length: 208″ (5,300 mm)
Mach4Metal
Width: 134″ (3,400 mm)
Mach4Metal
Height: 118″ (3,000 mm)
Mach4Metal
Weight: 7,000 kg (15,400 lbs)
