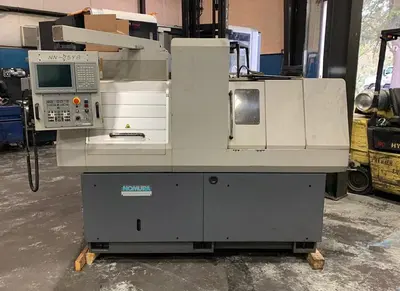

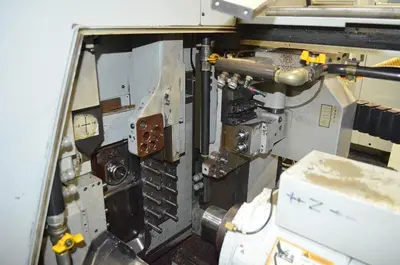

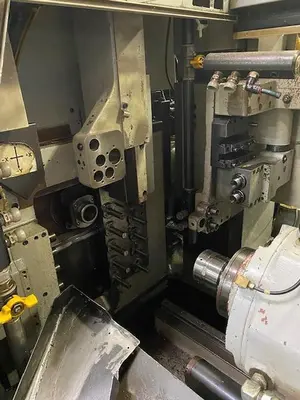

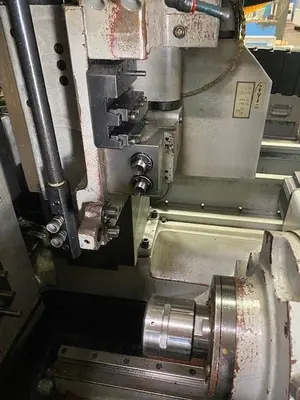

2014 NOMURA NN-25YB

Max. Machining diameter 25mm (0.98”)
Max Machining length
200mm (7.87”)
ID tool 10mm (Holder 23)
ID tool length 50mm (1.97”)
ID tap M10 × 1.5
Live tool 8mm (0.31”)
Live tap M8 × 1.25
Back
Parts unloading length 120mm (4.72”)
Parts pick-up length 93mm (3.66”)
ID tool 8mm (0.31”) ID
tool length 60mm (2.36”)
ID tap M8 × 1.25\
Live tool 60mm (2.36”)
Live tap M6
Number of Tools Main
OD tool 16mm (□0.63”) × 5
ID tool ER16 × 3 + ER20 × 1
Live tool 5 (ER20)
Live tap 1 (ER16)
Back OD tool 16mm (0.63”) × 2
ID tool 3 (ER16)
Live tool 2 (ER16)
Main Spindle Live tool spindle 6,000 RPM
Main spindle through-hole diameter 27mm (1.06”)
Main spindle indexing C-axis 0.001˚
Main spindle indexing angle 0.001˚
Main spindle 8,000 RPM
Live Tooling 6,000 RPM
Feed Rate 1Z
axis 15m / min. 1X axis 14m / min. 1Y
axis 20m / min. 2Z
axis 15m / min. 2X
axis 20m / min. 2Y
axis 20m / min.

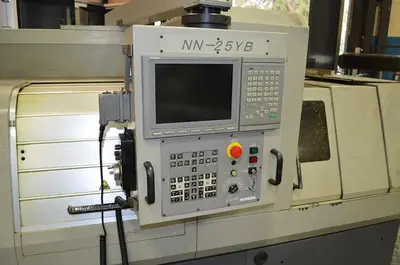

MITSUBISHI 65S Control display 10.4" color TFT LCD
Main spindle motor 2.2kW / 3.7kW built-in
Main spindle motor 1.5kW / 2.2kW built-in
Rotary tool axis motor 1.5kW
2 Rotary tool axis motor 1.5kW
Dimensions 89.76” × 49.49” × 71.85”
Weight 2950kg (6504lbs)
Floorspace 90” × 46”
Total power capacity 15KVA
