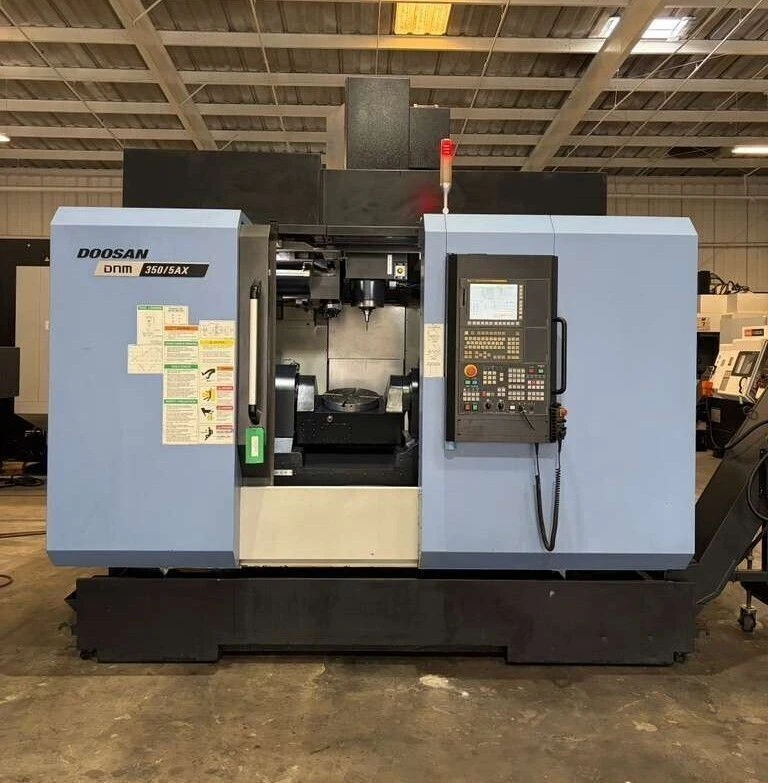

2017 DOOSAN DNM 350/5AX
Have one to sell?
ConditionUsed
1 available
Used 5-axis vertical machining center. Specs: X 23.62”, Y 25.8”, Z 19.7”, spindle speed 12,000 RPM, CAT-40 taper. Includes Fanuc i CNC, Renishaw, tool presetter, and more. Dimensions: 126"x124"x125", weight: 18,740 lbs.
X-Axis 23.62"
Y-Axis 25.8"
Z-Axis 19.7"
B-axis +30° -120°
C-axis 360°
# Axis 5
Spindle Motor 10 hp
Spindle Speed 12,000 RPM
ATC Capacity 60
Taper CAT-40 Big Plus
Table Size Table: ø 13.8″; Max Part Diameter: 15.7″, Max Part Height: 13.2″
Table Load Capacity 551.1 lb
Cut Hours 6,584 hr.
Dimensions 126″ x 124″ x 125″ High
Weight 18,740 Lbs

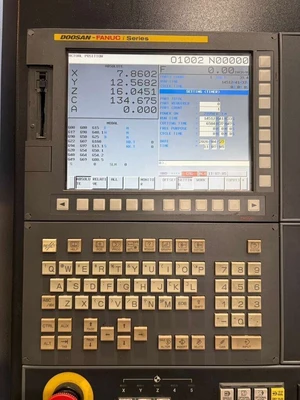

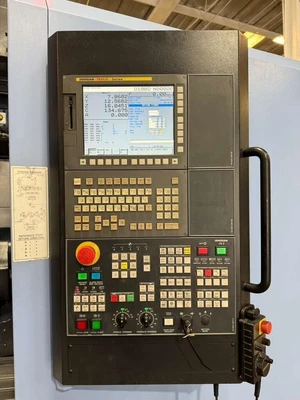

Fanuc i CNC Control

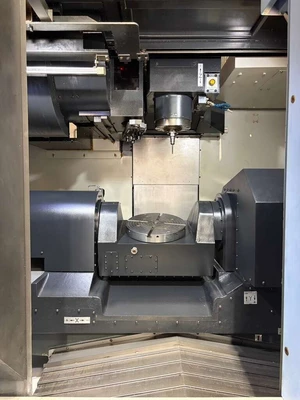

5th Axis 13.8″ Trunnion Table (4+1)
Renishaw Receiver Installed
Tool Presetter
Through Spindle Coolant
Spindle Chiller Unit
MPG Handwheel Control
PCMCIA Card Slot
Spindle Orientation

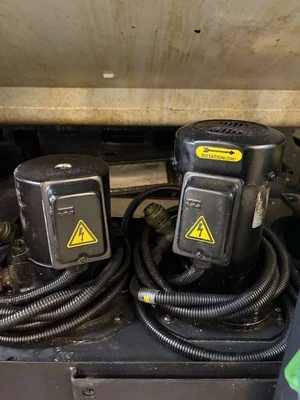

Coolant System

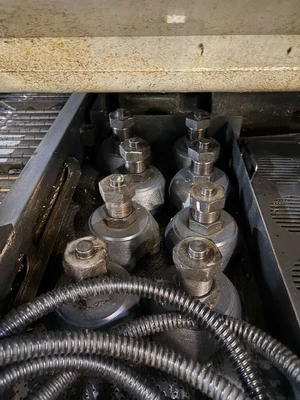

Levelling Pads
Hennig Chip Conveyor
