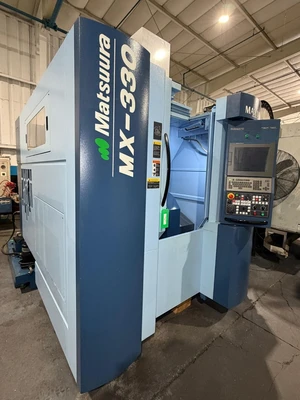

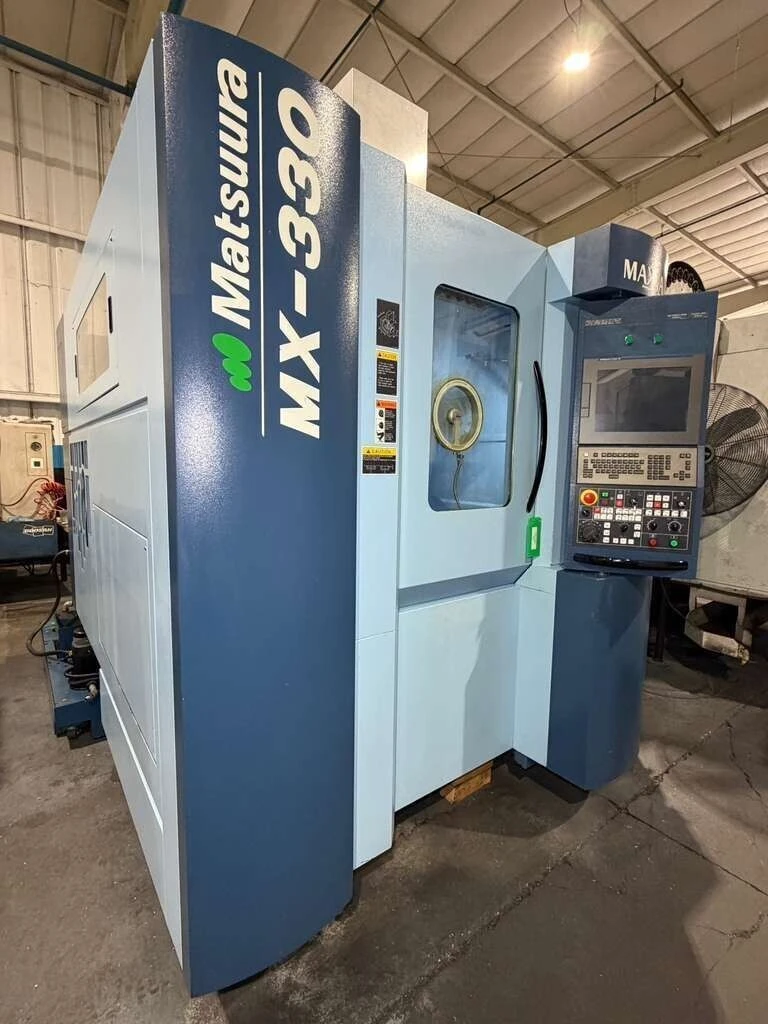

Used Vertical Machining Center with 5-axis machining, Matsuura G-Tech 31i Fanuc CNC Control, and 15,000 RPM high-speed spindle. Features 60 station ATC, 9.84" rotary table, and comes with Renishaw tool probe and LNS chip conveyor.
X-Axis 17.13"
Y-Axis 18.31"
Z-Axis 22.05"
Table Dia. 11.81"
A-axis -125° to +10°
C-axis 360° Continuous
Max Work Size 12.99" dia. & 12.59" ht
# Axis 5
Spindle Motor 25 hp
Spindle Speed 15,000 RPM
ATC Capacity 60
Taper CAT-40
Max Work Weight 176 Lbs
Dimensions 205″ x 183″ x 126″
Weight 13,860 Lbs

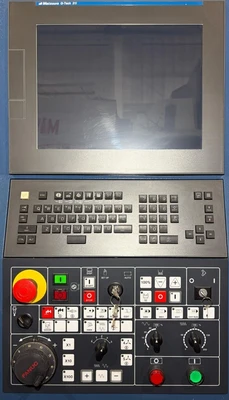

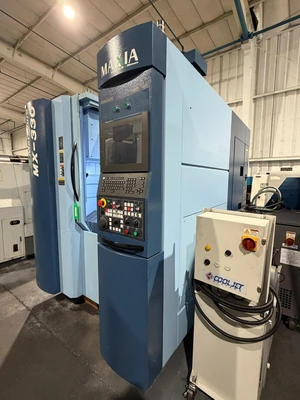

Matsuura G-Tech 31i Fanuc CNC Control
5-Axis Simultaneous Machining

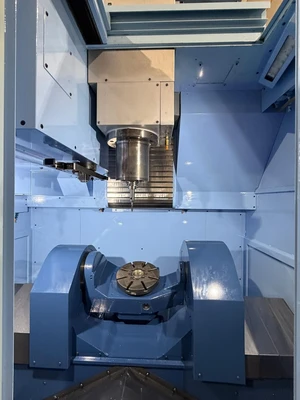

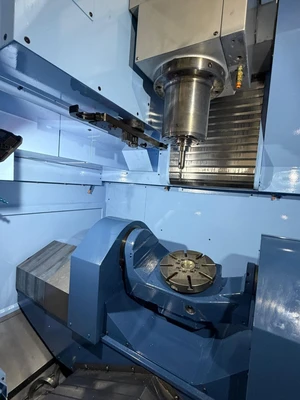

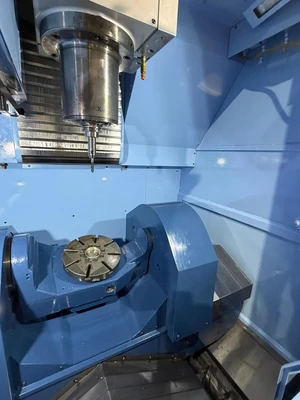

9.84" Diameter Rotary Table

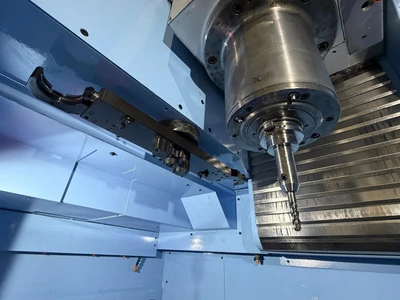

15,000 RPM High Speed Spindle

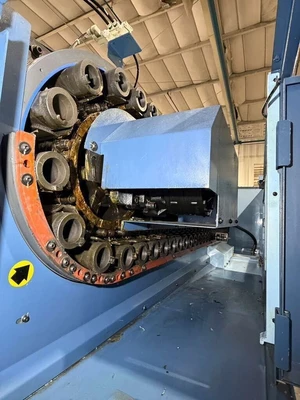

60 Station Automatic Tool Changer
Renishaw Receiver Installed

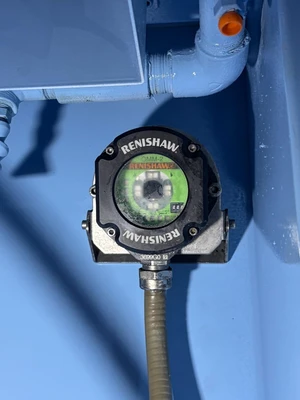

Renishaw Tool Probe
Through Spindle Coolant
Cool Jet Coolant Unit
Rigid Tapping
Spindle Orientation

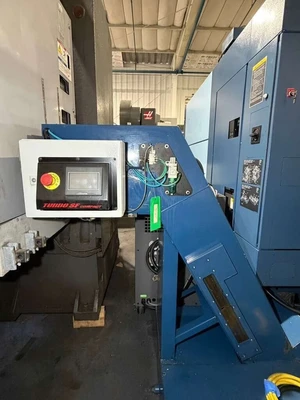

LNS Chip Conveyor
