2022 TSUGAMI SS327-III-5AX
Have one to sell?
ConditionUsed
1 available
Swiss Type Automatic Screw Machine with 1.26" bar capacity, 12.99" max length, and 7 controllable axes. Equipped with FANUC 31i-B5 CNC, FMB Turbo Barloader, MP Systems Coolant System, and more. Condition: Used.
BAR CAPACITY 1.26"
MAX MACHINING LENGTH 12.99"
MAX DRILLING DIAMETER 0.47"
MAIN SPINDLE MOTOR 7.4 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 8,000 RPM
BACK SPINDLE MOTOR 7.4 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 8,000 RPM
LIVE TOOL SPEEDS 6,000 RPM
CONTROLLABLE AXES 7
FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)
FMB TURBO 3-38 BARLOADER
X1, Z1, Y1, X2, Y2, Z2, C1, C2
MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)
BACK CROSS TOOL SPINDLE INCLUDED
DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)

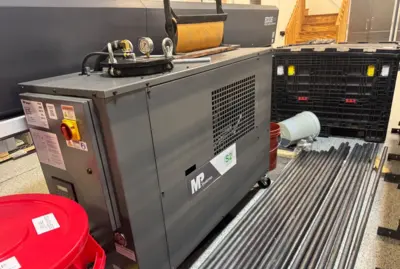

MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)
FIRETRACE SYSTEM
CHIP CONVEYOR (LNS)
PARTS CATCHER
LONG PARTS EJECTOR
TRANSFORMER
SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING
CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT
RIGID CAST IRON FRAME
