2022 TSUGAMI BW329Z

Swiss Type Automatic Screw Machines
Manufacturer:
TSUGAMI
Model:
BW329Z
Year:
2022
Stock #:
X3X3510

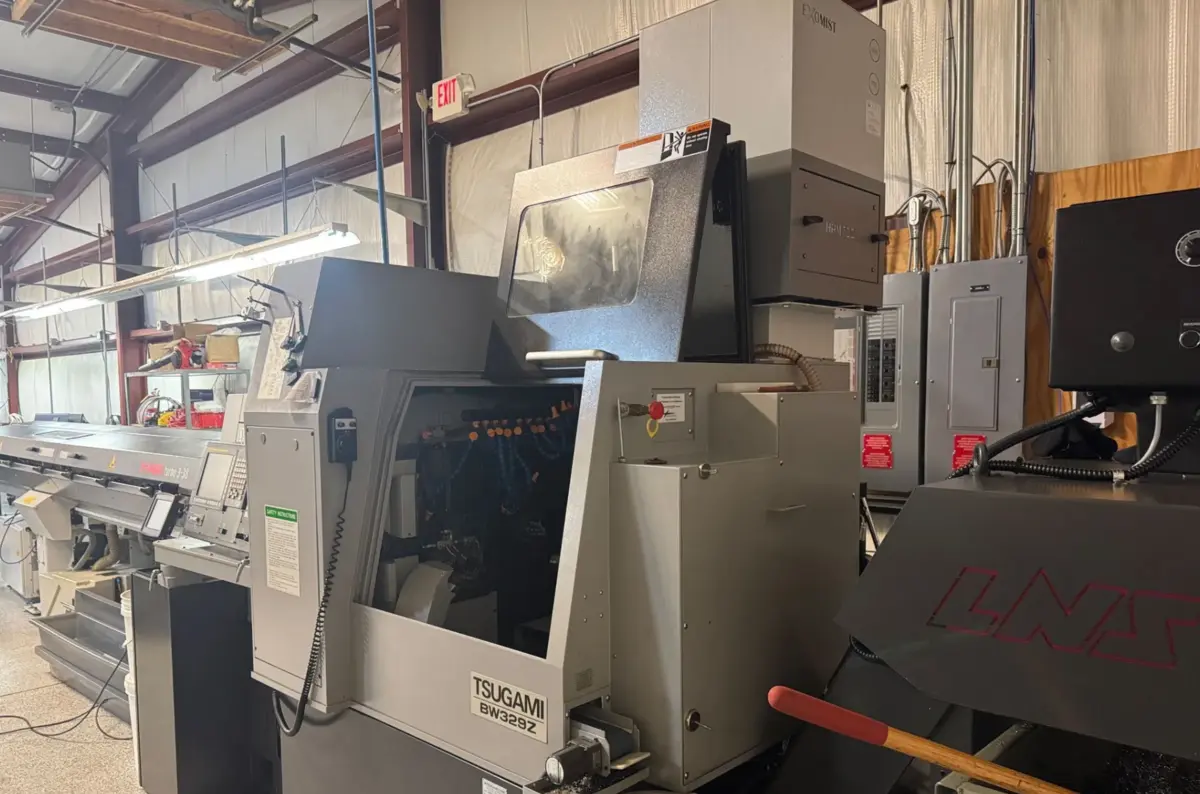

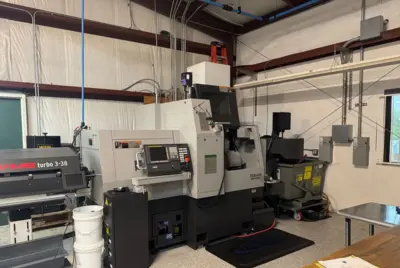

2022 Tsugami BW329Z Swiss Type Automatic Screw Machine, used with 1.25" capacity, CNC FANUC 31I-B control, and 11 axes. Features include FMB Turbo 338 Barfeeder, FireTrace system, and TriMist 850 mist collector. Equipped with high-pressure coolant system.

Capacity 1.25"
Power 7.5 kW
RPM 8,000 RPM
# Axis 11
Swiss, Chucker or Convertible? Convertible
Main Spindle Indexing Full C
Sub Spindle Indexing Full C
Live Back Working Tools? Yes
Control CNC (CNC FANUC 31I-B)
Dimensions 104.5″ x 64.5″ x 79″
Weight 11,460 lbs
Maximum Bar Stock: 32mm / 1.26″
Max Headstock Stroke w/ Guide Bushing: 330mm / 12.99″
Max Headstock Stroke w/o Guide Bushing: 70mm / 2.76″
Number Tool Positions (std/max): 29 / 38
Number Live Tool Positions (std/max): 11 / 26
Main Spindle Speed: 200 – 8,000 RPM
Sub Spindle Speed: 200 – 8,000 RPM
Main Spindle Motor: 3.7 / 5.5 kW
Approx. Weight: 11,460 lbs. / 5,200 kg
Approx. Dimensions: 104.5″ x 64.5″ x 79″ W/out barfeed

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

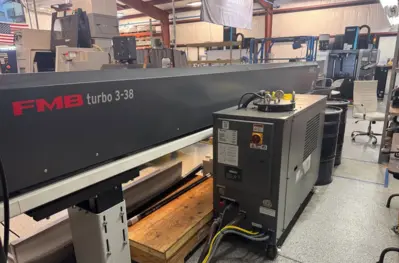

FMB Turbo 338 Barfeeder, Full 12' with axial shift
FireTrace Fire Suppression System
Plumbed for 8 Port High Pressure Coolant System
Oscillation Cutting )X1/Z1, X2/Z2/X3/Z3)
Two Sets of Collets and Guide Bushings
V2-HO8 High Pressure 2,000 PSI Oil Pump
TriMist 850 Mist Collection System
LNS Turbo Micro Hinge Chip Conveyor, 500 Micron
Red/Yellow/Green Patrol Light System
Chuckit Kit

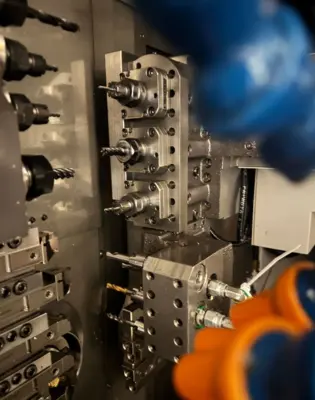

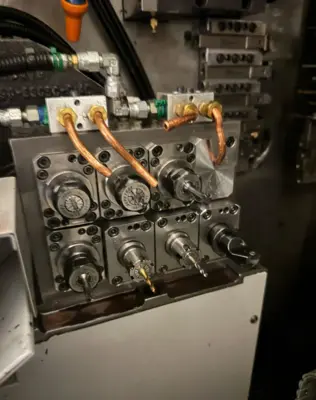

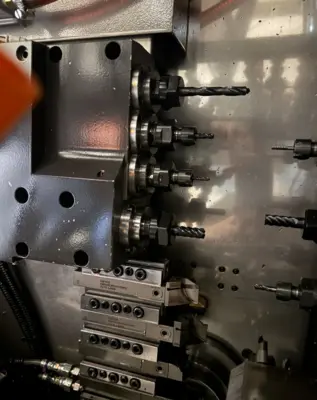

TOOLING AS PER PHOTOS

This equipment is currently unavailable. Similar equipment available now is shown below.
