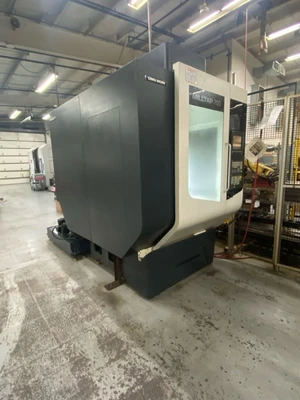

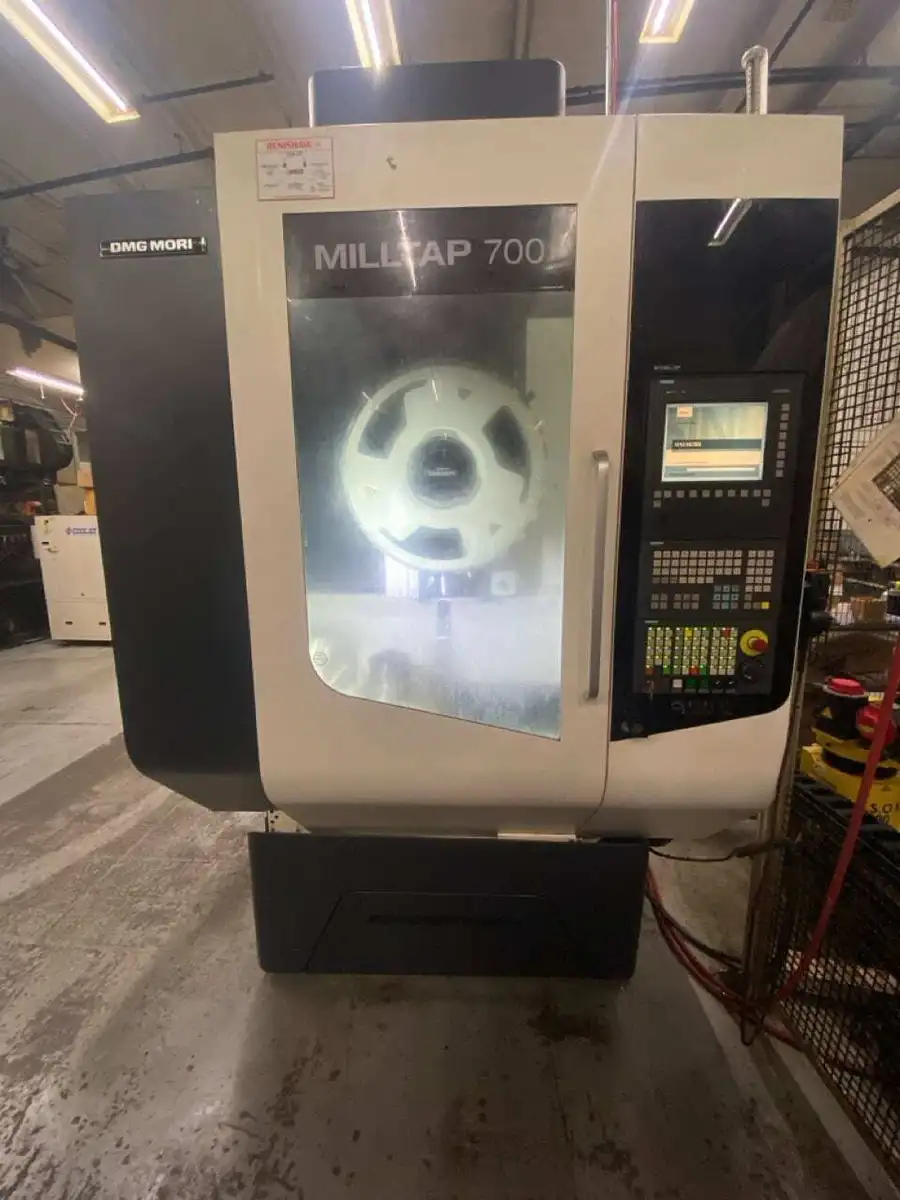

2017 DMG MORI MILLTAP 700
Have one to sell?
ConditionUsed
1 available
2017 DMG MORI MILLTAP 700, featuring Siemens 840D CNC, 27.6" X, 16.5" Y, 15" Z travel, 24000 RPM spindle, 25 tools, Renishaw OMP400 probe, and upgraded LNS chip conveyor.
X-Axis Travel: 27.6″
Y-Axis Travel: 16.5″
Z-Axis Travel: 15.0″
Max Tool Diameter: 3.15″
Max Tool Length: 9.8″
Max Tool Weight: 6.6 lbs.
Scale Feedback on X, Y & Z-Axes
Spindle Motor: 33.3 / 26.7 HP
Spindle Nose to Table Top: 7.9″ – 22.9″
Spindle Speed: 24000 RPM
Spindle Taper: Big Plus BT 30
Tool Change Time (T – T / C – C): 0.9 / 1.5 Seconds
Tools: 25
Approx. Dimensions: 65″ x 92″ x 101″
Approx. Weight: 7495 lbs
Siemens 840D Solution Line CNC Control
10.4″ Color TFT
Integrated Swivel Rotary Table Simultaneous
Through Spindle Coolant (1000 psi)
Clamp Pneumatic 1-Circuit Integrated Swivel Rotary Table
Signal Lamp 4 Color
Automation Interface Door Right
Chip Trolley MillTap Design
Electronic Handwheel
Renishaw OMP400 Touch Probe
Automation Package With DP/DP Coupler With Profibus Connection
Tool Breakage Sensor Renishaw OTS

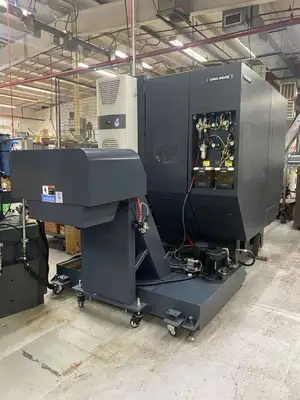

Upgraded LNS Higher Filtration Chip Conveyor
Push Button for Clamping/Unclamping
Internal Mist Collector
