2016 DMG MORI Wasino J-1
Have one to sell?
ConditionUsed
1 available
Used multi-axis CNC lathe. Features a 5" chuck, 6,000 RPM spindle, and Fanuc 0i-TD controller. Compact dimensions: 50"x49"x64", 220V, 3-phase.
Chuck Size: 5″
Bar Capacity: 1.5″
Max. Workpiece Diameter: 3.9″
Max. Workpiece Length: 3.9″
Max. Bar Diameter: 1.8″
Max. X-Axis Travel: 5.8″
Max. Z-Axis Travel: 6.7″
Spindle Speed: 6,000 RPM
Spindle Motor: 7.5 HP
Turret Positions: 8
Approximate Machine Dimensions: 50″ x 49″ x 64″
Approximate Machine Weight: 4,409lbs
Electrical: 220V, 3-Phase

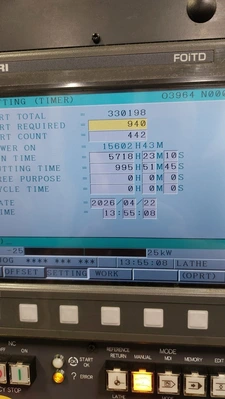

Fanuc Series 0i-TD Controller
