2016 HAAS VF-1
Have one to sell?
ConditionUsed
1 available

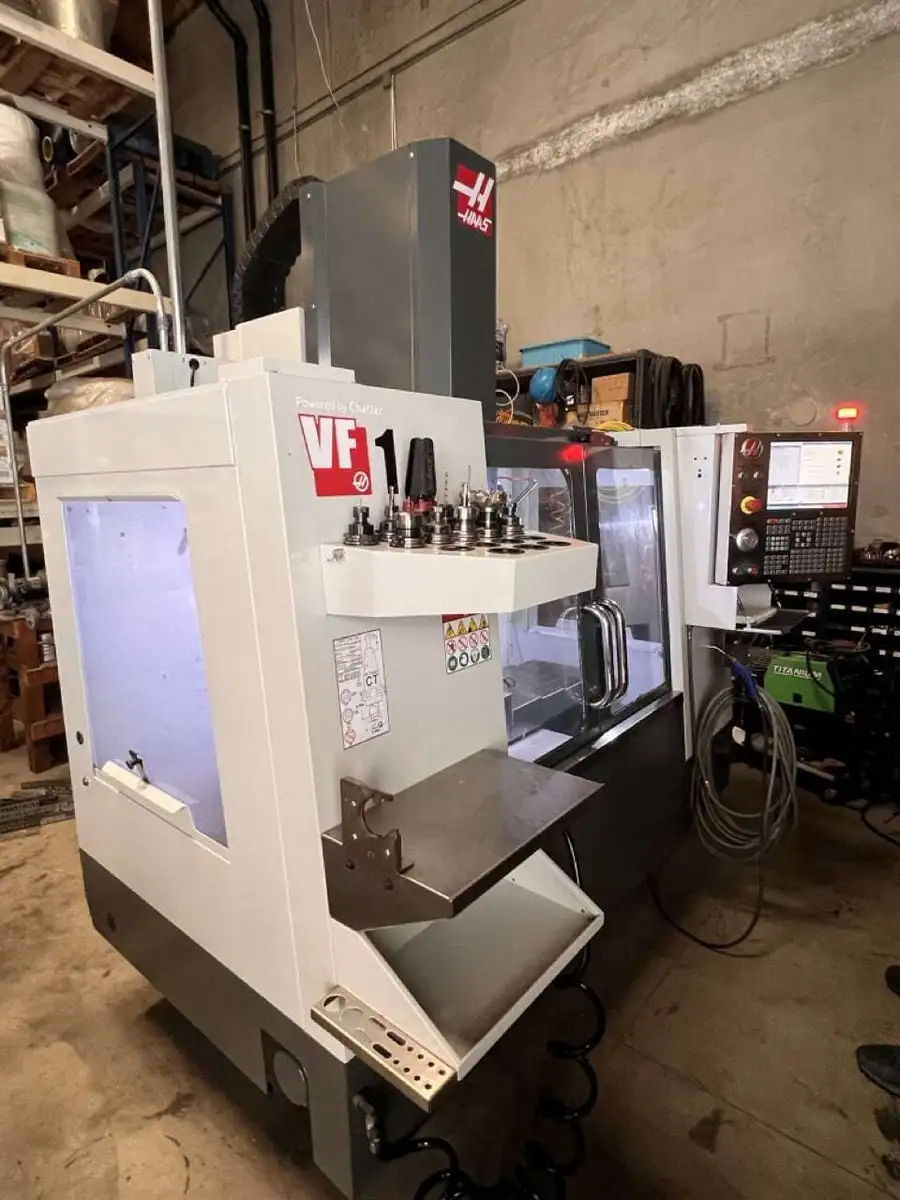

Used Vertical Machining Center features Haas CNC control, Renishaw probe, and more. Comes equipped with a 5th axis vice, CAT 40 taper, and powerful 30 hp spindle. Offers a 20" × 16" × 20" travel with 8,100 RPM.
Table Size (L × W): 26.00″ × 14.00″
Max Table Load: 3,000 lbs
Spindle Nose to Table (max): 24.0″
Spindle Nose to Table (min): 4.0″
Feedrates & Motion
Max Cutting Feedrate: 650 ipm
Rapid Traverse (X/Y/Z): 1,000 ipm
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~4.2 sec
Chip-to-Chip Time: ~4.5 sec

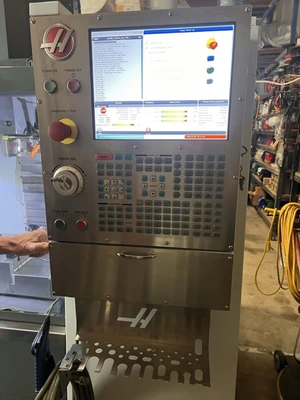

Haas CNC Control
Renishaw Probe

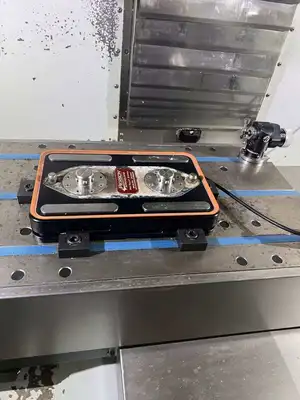

5th Axis Double Station Vice
Rigid Tapping
Ethernet

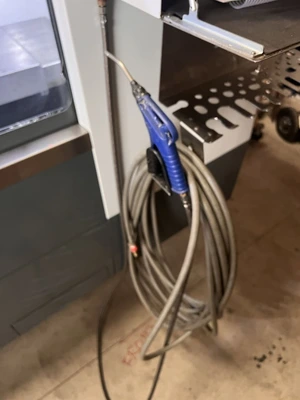

Air Gun
