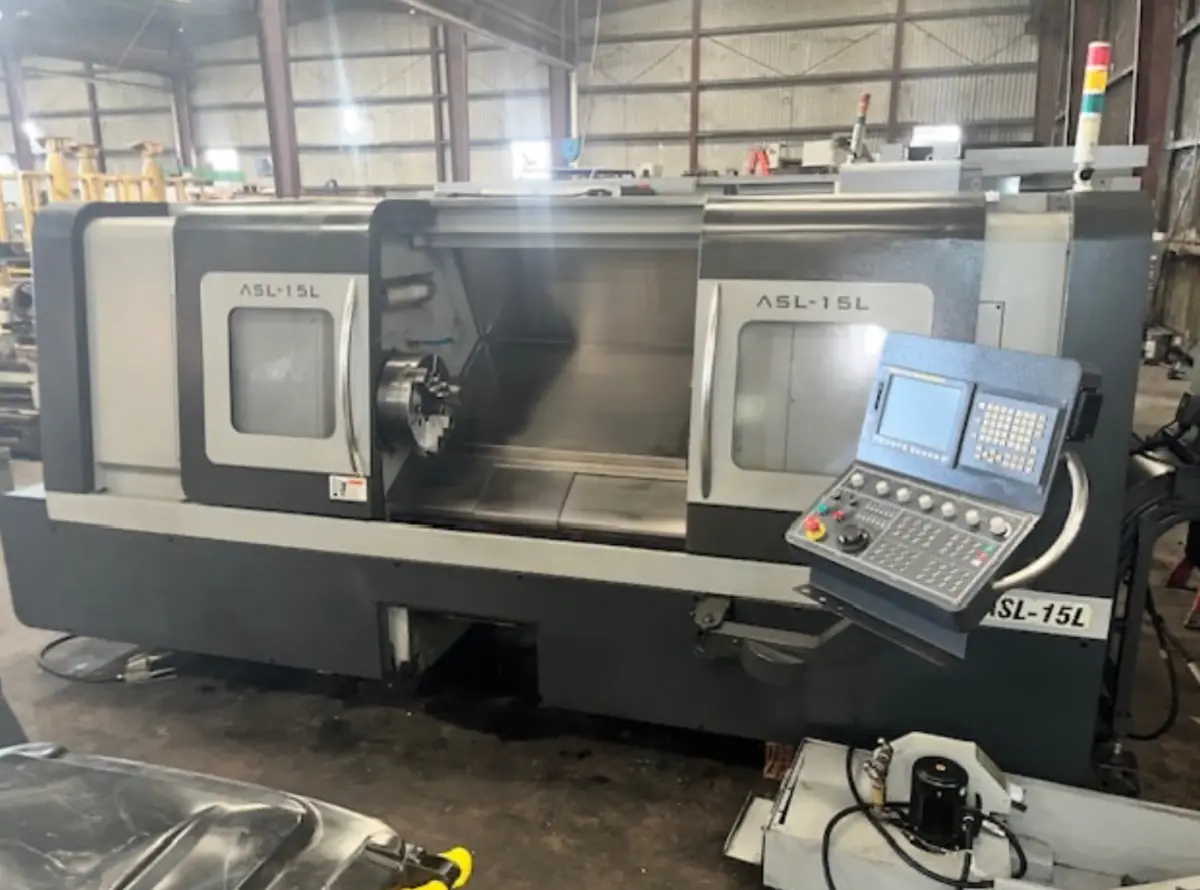

Used CNC Lathe. Features 15" chuck, 4.1" bar capacity, 15 hp power, and max 2,500 RPM. Equipped with Fanuc 0i-TD control, 15" 3-jaw chuck, 12-position BOT turret, coolant tank, chip conveyor, and more.
Swing Over “Z” Cover:24″
Swing Over “X” Cover:15.2″
Maximum Cutting Diameter:19.6″
Maximum Cutting Length:42.9″
Spindle Nose:A2-11
Power Chuck Diameter:15″
Maximum Spindle Speed:2,500 RPM
Spindle HP (Continuous):15 HP
Spindle HP (Peak):20 HP
Bar Capacity:4.1″
Tailstock Body Travel:40.9″
Tailstock Quill Travel:4.7″
Tailstock Quill Taper:No. 5 MT

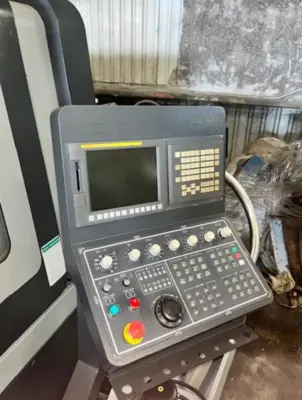

Fanuc 0i-TD Control, 15″ 3-Jaw Powered Chuck, 12 Position BOT Turret, Removable Tool Setter, Coolant Tank, Chip Conveyor, Programmable Tailstock w/ Hydraulic Quill
