2018 TAKISAWA LA-250YS
Have one to sell?
ConditionUsed
1 available

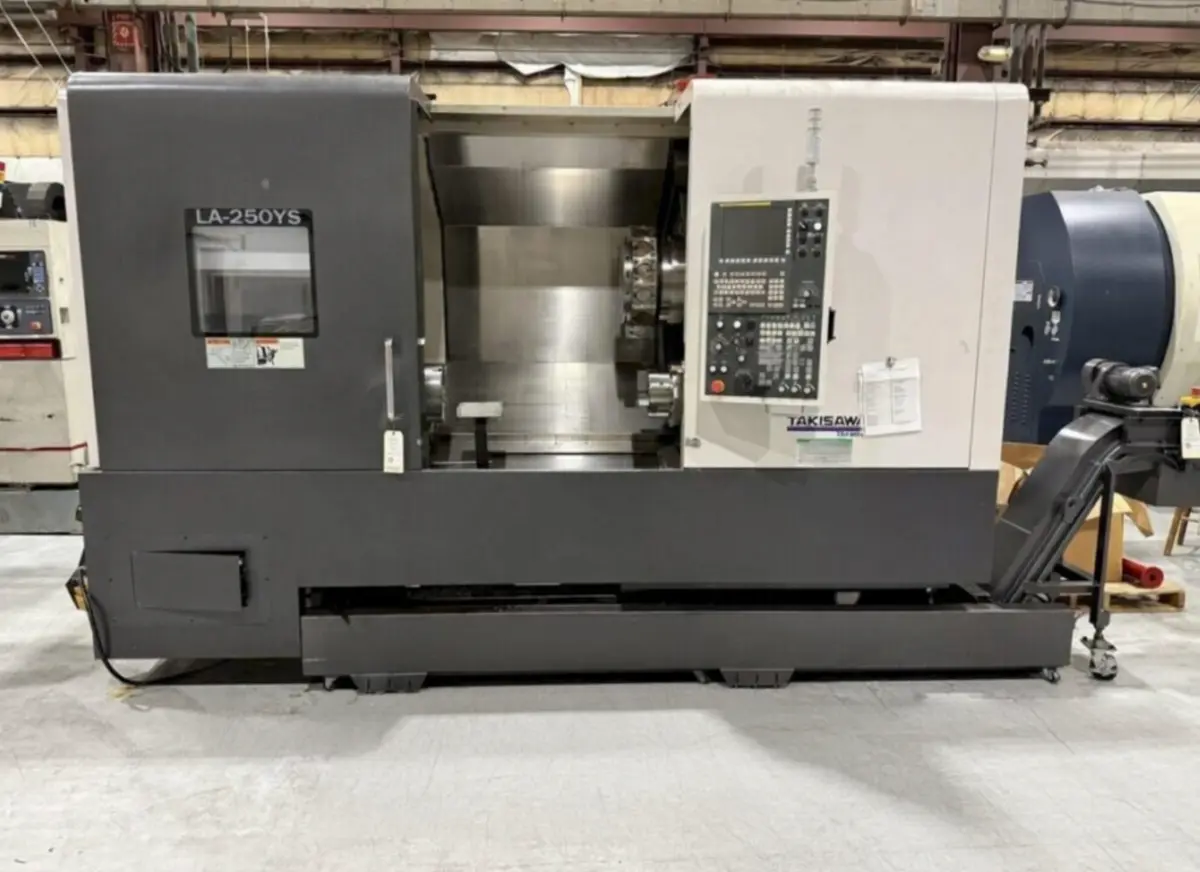

Used CNC Lathe features 6 axes, 23.6" swing, 14.6" turning diameter, and 43.11" center distance. Equipped with chip conveyor, coolant tank, tool presetter, spindle chiller, sub spindle, Y axis, and live tooling.
# Axis:6
Swing:23.6″
Turning Diameter:14.6″
Center Distance:43.11″
Chuck Size:10″
Bar Capacity:3.05″
X Axis Travel:10.6″
Y Axis Travel:3.92″
Z Axis Travel:31.49″
B Axis Travel (Sub Spindle):28.93″
C1/C2 Axis Index:0.001°
Rapid Traverse (X/Y/Z):787/393/797 ipm
Spindle Nose:A2-8
Spindle Speed:3500 rpm
Main Motor:30 hp
Live Tooling Speed:5000 rpm
Live Tooling Motor:5 hp
Sub Spindle Chuck:8″
Sub Spindle Bar Capacity:2″
Sub Spindle Nose:A2-6
Sub Spindle Speed:3500 rpm
Sub Spindle Motor:15 hp
Turret Capacity:15 Stations

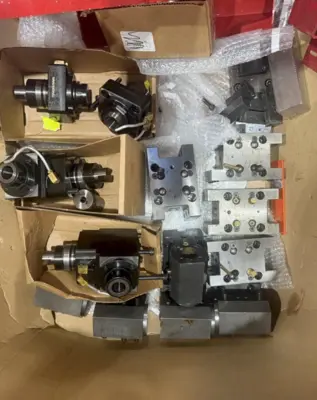

Chip Conveyor, Coolant Tank & Pump, Parts Conveyor, Tool Presetter, Spindle Chiller, Manual Guide i (Conversational Programming), Misc. Static Tooling Available, (2) Straight Live Tool Holders, (2) Right Angled Live Tool Holders, Y Axis, Live Tooling, Sub Spindle AND Heavy Duty Box Way Machine
