2020 GANESH ASL-15LX
Have one to sell?
ConditionUsed
1 available

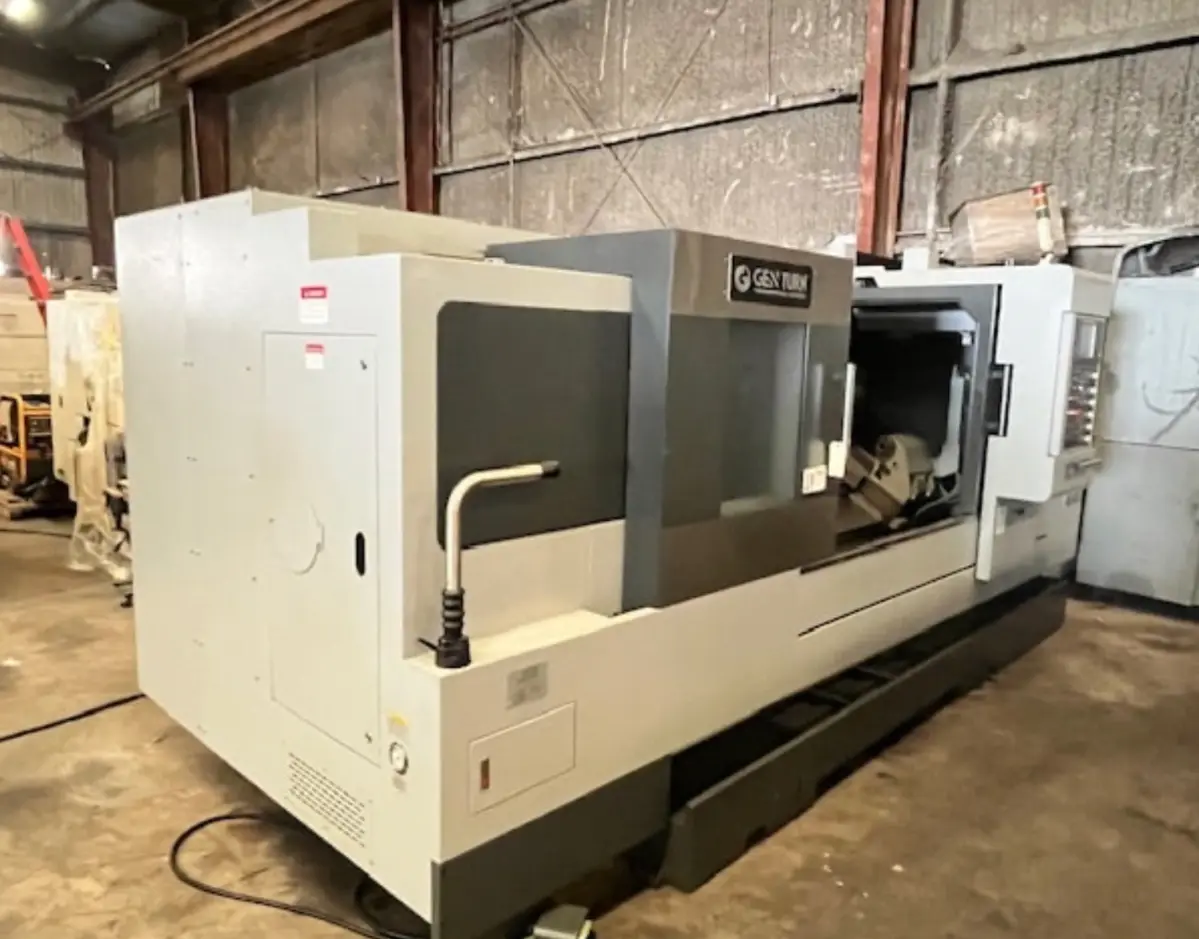

CNC Lathe: Used. Specs include 15" chuck, 2,500 RPM spindle speed, and 19.6" max cutting diameter. Features Fanuc 0i-TD Control, 12-position turret, and programmable tailstock.
Swing Over “Z” Cover:24″
Swing Over “X” Cover:15.2″
Maximum Cutting Diameter:19.6″
Maximum Cutting Length:66″
Spindle Nose:A2-11
Powered Chuck Diameter:15″
Maximum Spindle Speed:2,500 RPM
Spindle Motor HP (Continuous):15HP
Spindle Motor HP (Peak):20HP
Bar Capacity:4.1″
Tailstock Quill Travel:4.7″
Tailstock Quill Taper:No. 5 MT
Fanuc 0i-TD Control, 15″ 3-Jaw Powered Chuck, 12 Position BOT Turret, Removable Tool Setter, Coolant Tank, Chip Conveyor, Programmable Tailstock w/ Hydraulic Quill
CNC Lathe: Used. Specs include 15" chuck, 2,500 RPM spindle speed, and 19.6" max cutting diameter. Features Fanuc 0i-TD Control, 12-position turret, and programmable tailstock.
Swing Over “Z” Cover:24″
Swing Over “X” Cover:15.2″
Maximum Cutting Diameter:19.6″
Maximum Cutting Length:66″
Spindle Nose:A2-11
Powered Chuck Diameter:15″
Maximum Spindle Speed:2,500 RPM
Spindle Motor HP (Continuous):15HP
Spindle Motor HP (Peak):20HP
Bar Capacity:4.1″
Tailstock Quill Travel:4.7″
Tailstock Quill Taper:No. 5 MT
Fanuc 0i-TD Control, 15″ 3-Jaw Powered Chuck, 12 Position BOT Turret, Removable Tool Setter, Coolant Tank, Chip Conveyor, Programmable Tailstock w/ Hydraulic Quill
