2018 MATSUURA H.PLUS-300
Have one to sell?
ConditionUsed
1 available

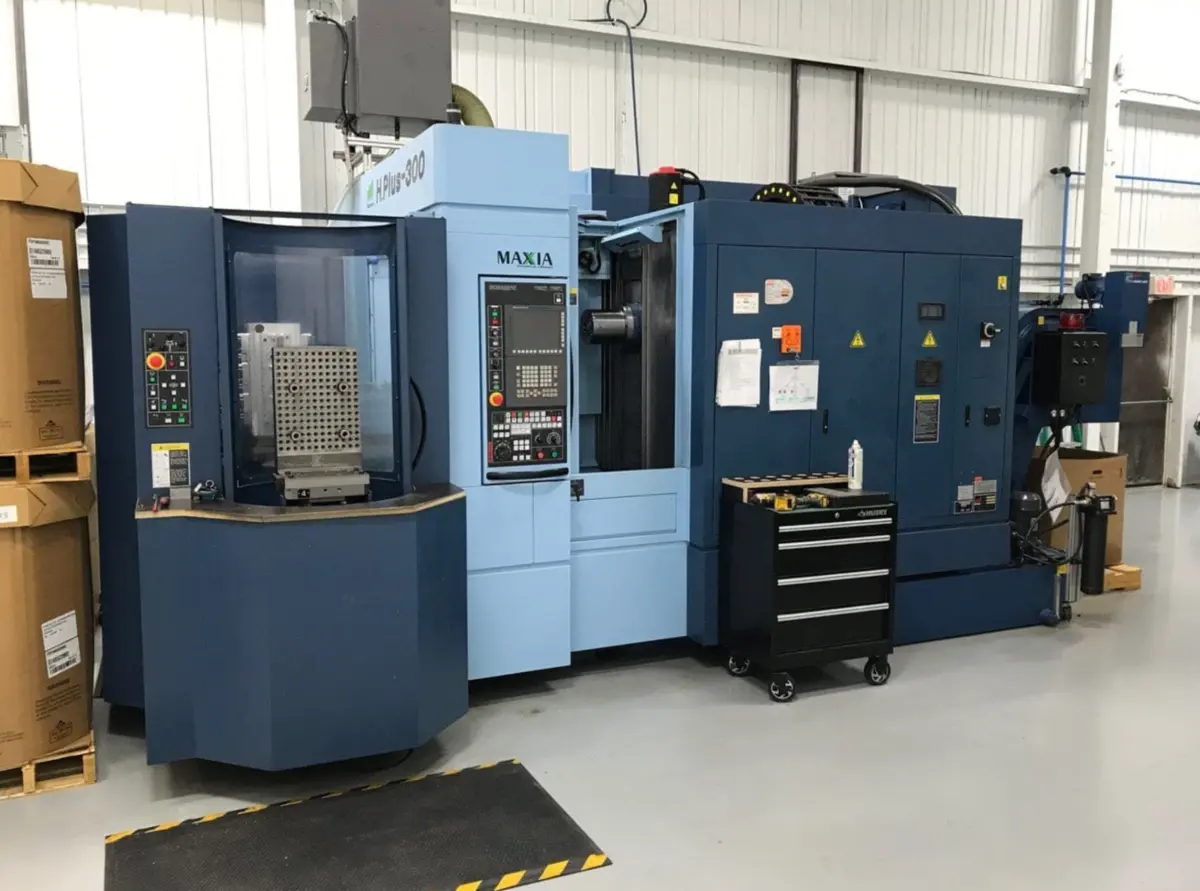

Used Horizontal Machining Center. Features include 11.81"x11.81" pallet size, 15,000 RPM Cat 40 spindle, 120-tool ATC, Renishaw OMP-60, and more.

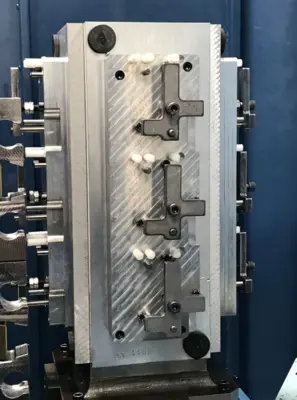

Pallet Size 11.81″ X 11.81″
Number of Pallets 5
Table Load Capacity 550 Lbs.
X- Axis Travel 19.68″
Y- Axis Travel 19.68″
Z- Axis Travel 19.68″
Pallet Center to Spindle Face 3.15″ – 22.83″
Pallet Surface to Spindle Center 4.72″ – 24.41″
B- Axis Indexing .0001 Contouring
Spindle Speeds 15,000 Rpm
Spindle Taper Ct 40
Rapid Traverse Rates X,y,z Ipm 1969
Cutting Feed Rate Ipm 1969
Automatic Tool Changer Capacity 120
Machine Weight 22,000 Lbs.
15,000 RPM Cat 40 Spindle
Full Fourth Axis Rotary Table with Scale (0.001 degree indexing)
5 Position Automatic Pallet Changer
120 Position Automatic Tool Changer
Rotary Wiper/Air Supply System

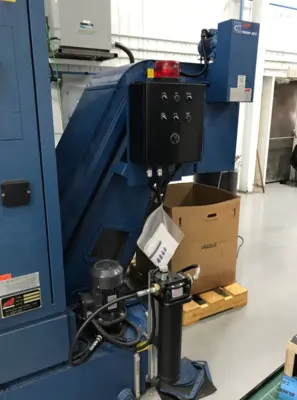

Turbo Micro-Fine II Chip Conveyor W/ 640 Liter Coolant Tank, Lift up and Scrapper type conveyor
Drum/Disk Filtering Unit W/ Back wash System
In-Process Measurement, Renishaw OMP-60
Renishaw NC-4 Laser for Tool Measurement
Coolant Through Spindle, 300 PSI
Overhead Flushing System
Upgraded Chip Evacuation System
Aeroex ROX-400 Oil/Mist Collector

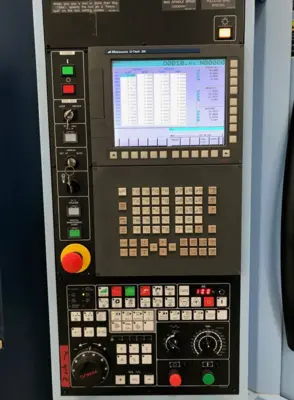

Fanuc Options:
G54.2-Dynamic Fixture Offset, iZ-2/150NF with 1,000 block look ahead, Nano Smoothing function with jerk control, and Optimal torque accel/decel function
Orbital Turning Function
