2005 HAAS TL-2
Have one to sell?
ConditionUsed
1 available

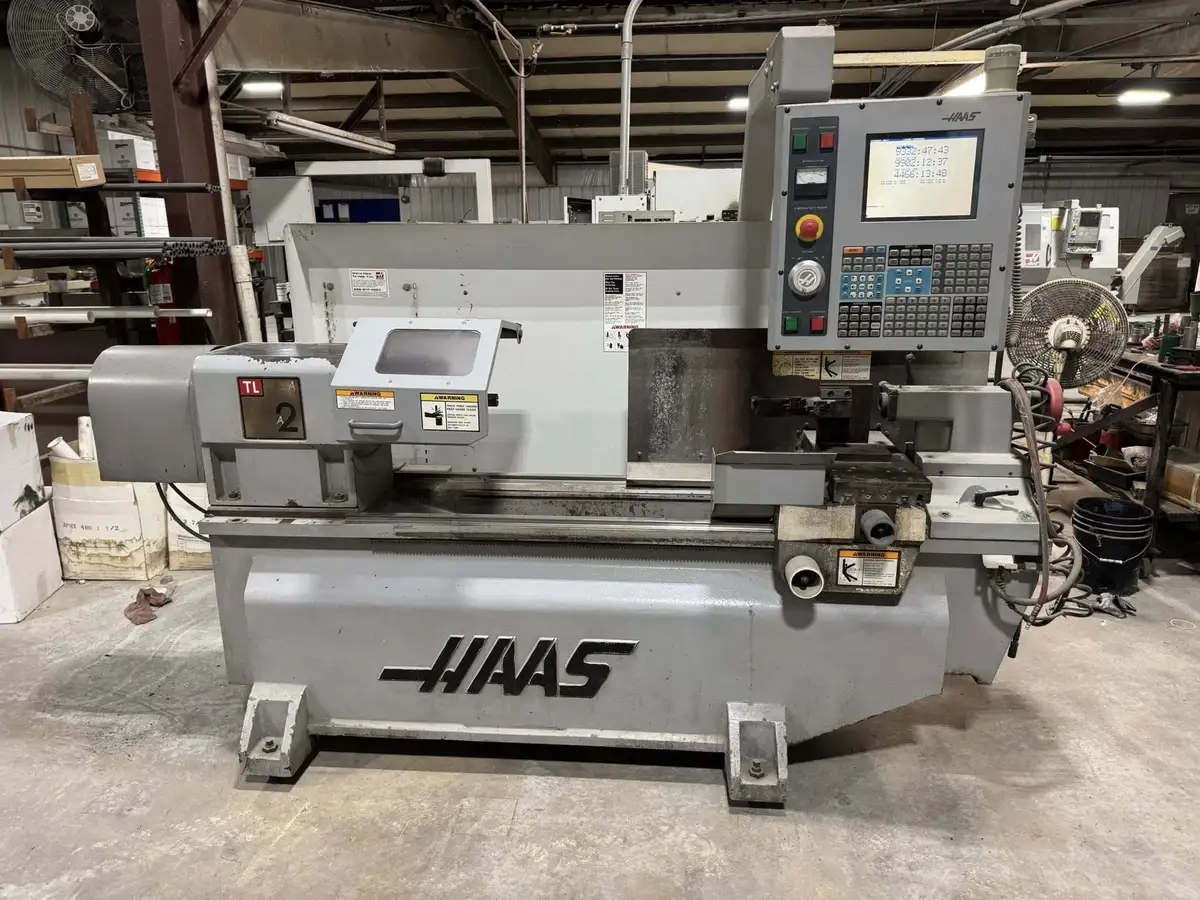

Used CNC Lathe available. Features 2" bar capacity, 8" chuck, 2,000 RPM spindle speed, and 10 HP motor. Max turning diameter of 16" and length of 48". Compact design at 111" x 71" x 83", weighing 4,480 lbs.
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 8"
Z Axis Travel: 48"
Rapid Rate Z Axis: 450 IPM
Turret Tools: 1 Station
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 48"
Max Swing: 16"
Spindle Nose A2-5
Max Torque 108 ft-lbf @ 355 rpm
Dimensions: 111" x 71" x 83"
Weight: 4,480 LBS
