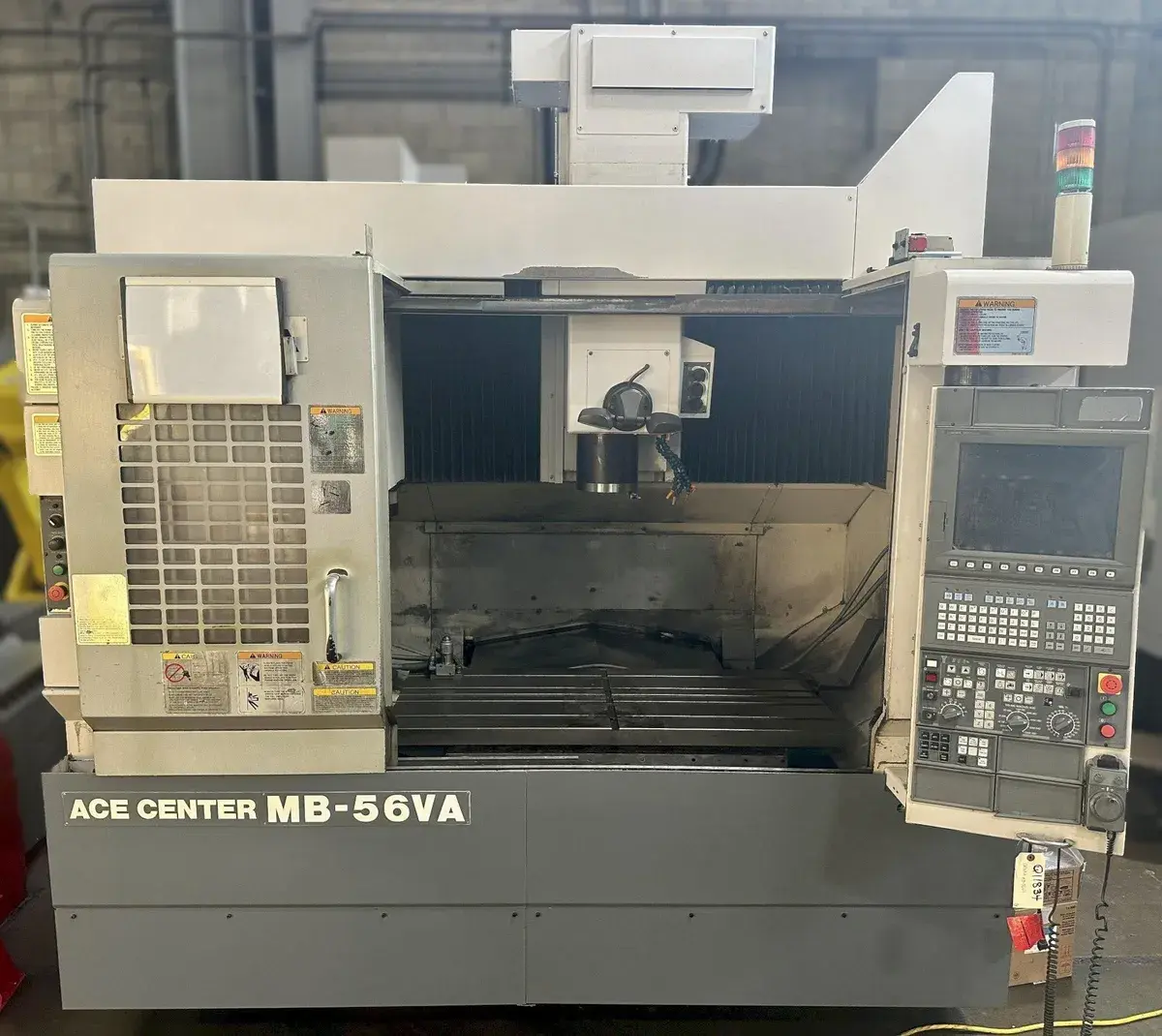

2010 OKUMA ACE CENTER MB-56VA
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center in used condition. Features: 51.18"x22.05" table, 24 hp spindle, 15,000 RPM, 32-tool changer, and OSP-P200M CNC control. Dimensions: 118.34"x97.24"x108.26", 16,500 lbs. Equipped with chip conveyor & coolant system.

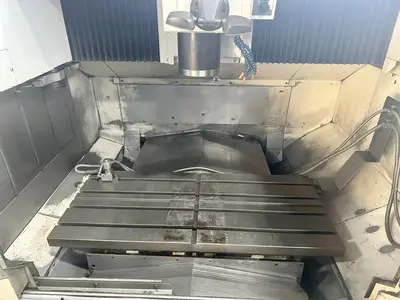

Table-L 51.18"
Table-W 22.05"
Max Table Load Capacity 1,980 lb
X-Axis (Longitudinal Travel) 41.34"
Y-Axis (Cross Travel) 22.05"
Z-Axis (Vertical Travel) 18.11"
Max Clearance Tabletop to Spindle Nose 15.49"
Min Clearance Tabletop to Spindle Nose 5.91"
Feed Rates (X, Y, & Z Axis) 0.04 - 1260 in/min.
Rapid Traverse Rate (X, Y, & Z Axis) 1,574 in/min.
X-Axis Rapid Traverse Rate 1,574 in/min.
Y-Axis Rapid Traverse Rate 1,574 in/min.
Z-Axis Rapid Traverse Rate 1,260 in/min.

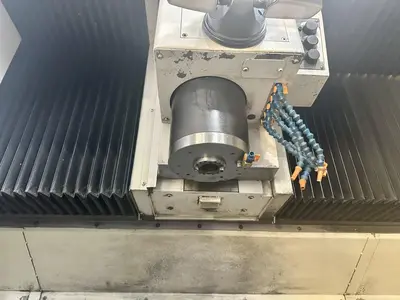

Spindle Power 24 hp
Spindle Speed Range 0 - 15,000 RPM
Spindle Taper CAT 40
Torque, Up To 147 lbf
Automatic Tool Changer Capacity (ATC) 32
Electrics 220/3/60
Dimensions 118.34" x 97.24" x 108.26"
Weight 16,500 LBS

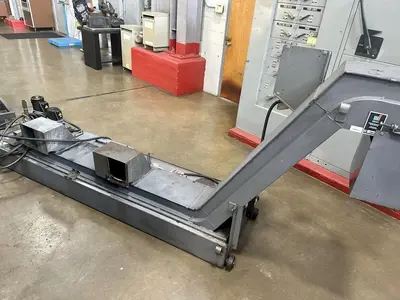

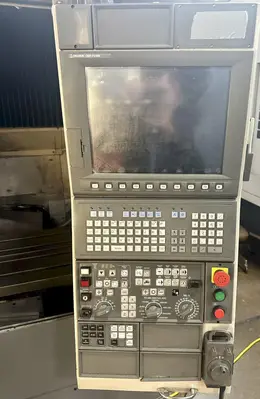

OSP-P200M CNC Control, 15000 Max Spindle RPM, 32 Station Automatic Tool Changer, Chip Conveyor & Coolant System
