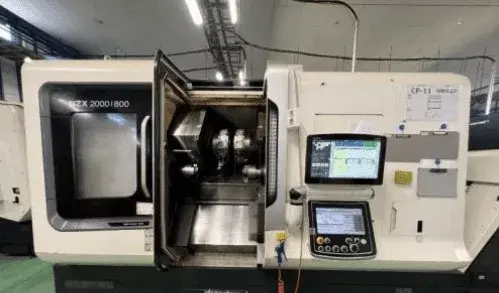

Used 5-Axis CNC Lathe: Features CELOS Control, C-Axis Live Tooling, Y-Axis, and 6,000 RPM Sub-Spindle. Equipped with Auto Tool Presetter, Chip Chiller System, and more. Approx. Machine Weight: 22,000 lbs.
Chuck Size 8"
Bar Capacity 2.5"
Swing 31.5"
Turning Diameter 12.5"
Spindle Speed 5,000 RPM
Distance Between Centers 44"
Turret 16 Station
Sub-Spindle 6,000 RPM
Approx. Machine Dimensions 199.3" x 111.6" x 91.3"
Approx. Machine Weight 22,000 Lbs
Control CELOS (F31iB)
(2) Micro Centric MBS 200 Collet Chucks

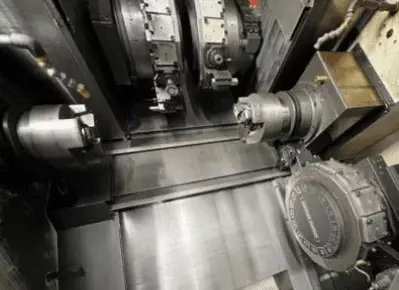

(3) Turrets with Y-Axis
(5) External M-Codes
21.5" Color Ergoline Touch TFT
3D Coordinate Conversion
4-Color Signal Light
Air Blow for Tool Tip (T1/T2/T3)
Air Purge (Left and Right Spindle)
Auto Tool Presetter (Left and Right Spindle)
C-Axis High-Precision Indexing

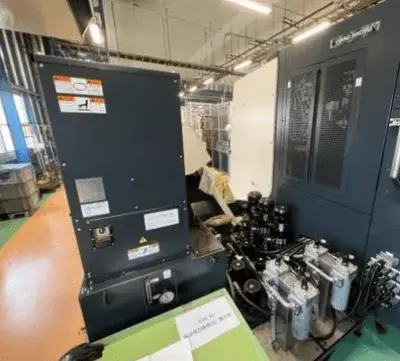

Chip Blaster/Chip Chiller High Pressure Coolant System
Chuck Top Coolant
Tool Retract and Recover
X-Axis Direct Scale Feedback (X1/X2/X3)
X-Axis Direction JIS / ISO
Built-In Work Light
Parts Catcher
Automatic Door
Coolant Gun
Ethernet Capability
C-Axis Live Tooling, Y-Axis

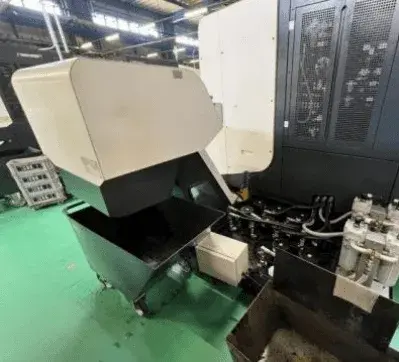

Chip Conveyor
