ACER AGS-1224AHD

Table Working Surface W x L .......... 12" x 24"
Grinding Width Capacity Maximum .......... 12"
Grinding Length Capacity Maximum .......... 24"
Height Spindle Center to Table Maximum .......... 23-1/2"
Table Load Capacity .......... 1200 LBS
Table Longitudinal, Power .......... 24-1/2"
Table Cross Travel .......... 14"
Grinding Wheel Diameter Standard .......... 14"
Grinding Wheel Width Standard .......... 1.25"
Grinding Wheel Hole Diameter .......... 5"
Grinding Spindle Speed .......... 1750 RPM
Table Longitudinal Feeds Range .......... 16 to 80 FPM
Crossfeed Travel Feeds Automatic .......... 0 to 1"
Spindle Auto Downfeed Range .......... .0001 to .01 IPR
Spindle Horsepower .......... 5 HP

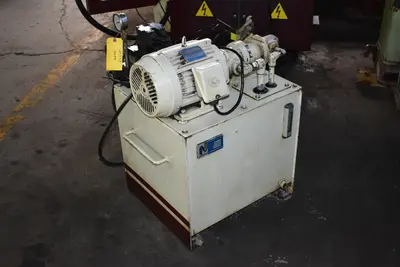

Hydraulic Motor Horsepower .......... 2 HP
Floor Space Required .......... 5'6" x 6'
Weight, Approximately .......... 4840 LBS
