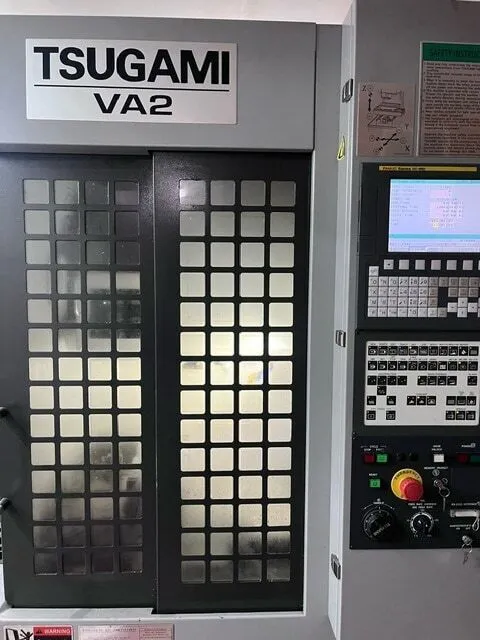

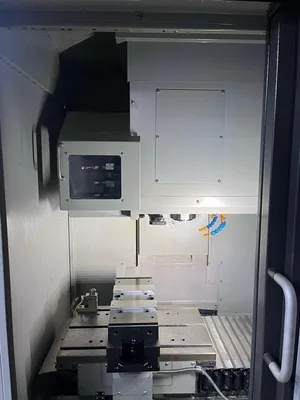

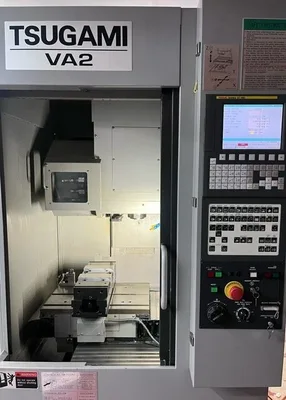

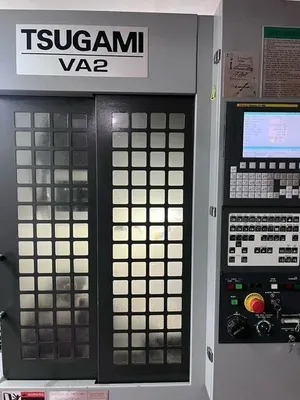

2015 TSUGAMI VA2
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center, used condition. Features: X 360 mm, Y 260 mm, Z 250 mm; 9 kW power; 30,000 RPM; 3-axis; table 330x500 mm; spindle speed 300-30,000 RPM; max table load 200 kg; 14+1 tool magazine.
Spindle Speed: 300-30,000 RPM
Spindle Taper: 7/24 S20T
Chip-to-chip time of 1.35 seconds
Maximum weight on table: 200 kg, 440 lbs (uniformed load)
Maximum tool size (W x L): 60 mm x 130 mm
Tool Magazine Capacity: 14+1 ATC
Spindle Motor: 12 HP
Vertical Machining Center, used condition. Features: X 360 mm, Y 260 mm, Z 250 mm; 9 kW power; 30,000 RPM; 3-axis; table 330x500 mm; spindle speed 300-30,000 RPM; max table load 200 kg; 14+1 tool magazine.
Imperial
| X | 360 mm |
| Y | 260 mm |
| Z | 250 mm |
| Power | 9 kW |
| RPM | 30,000 RPM |
| Table-W | 330 mm |
| Table-L | 500 mm |
| # Axis | 3 |
Spindle Speed: 300-30,000 RPM
Spindle Taper: 7/24 S20T
Chip-to-chip time of 1.35 seconds
Maximum weight on table: 200 kg, 440 lbs (uniformed load)
Maximum tool size (W x L): 60 mm x 130 mm
Tool Magazine Capacity: 14+1 ATC
Spindle Motor: 12 HP
