2021 FANUC ROBODRILL D21LIB5
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Specs: X/Y/Z: 27.6"/15.7"/15.7", 7.5 HP, 24,000 RPM, 21 ATC, 4-axis, BT 30 taper. Includes Fanuc 31i-B, Nikken Rotary Table, and coolant options.
X-Axis Travel 27.6 in (700 mm)
Y-Axis Travel 15.7 in (400 mm)
Z-Axis Travel 15.7 in (400 mm)
Table Size 31.5 in × 15.7 in (800 × 400 mm)
Table Load Capacity Up to 330 lb (150 kg)
Spindle Speed 24,000 RPM (High-Speed Option Available)
Spindle Motor Power 7.5 HP (5.5 kW) Continuous / 10 HP Peak
Tool Changer Capacity 21 Tools (14 Optional on Compact Variant)
Tool Change Time 0.7 sec (tool-to-tool typical)
Rapid Traverse Rate 2,125 ipm (54 m/min) on all axes
Repeatability ± 0.00008 in (± 2 µm)
Power Requirements 230 V / 3-Phase / 60 Hz (Approx. 20 kVA)
Machine Weight 4,400 lb (2,000 kg)
Fanuc 31i-B

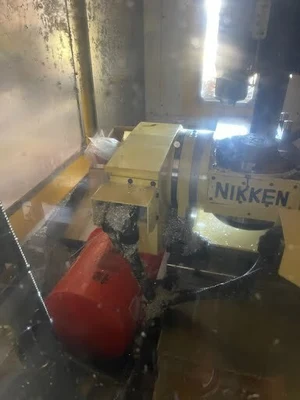

Nikken Rotary Table
Coolant System Through-spindle coolant / flood coolant options
