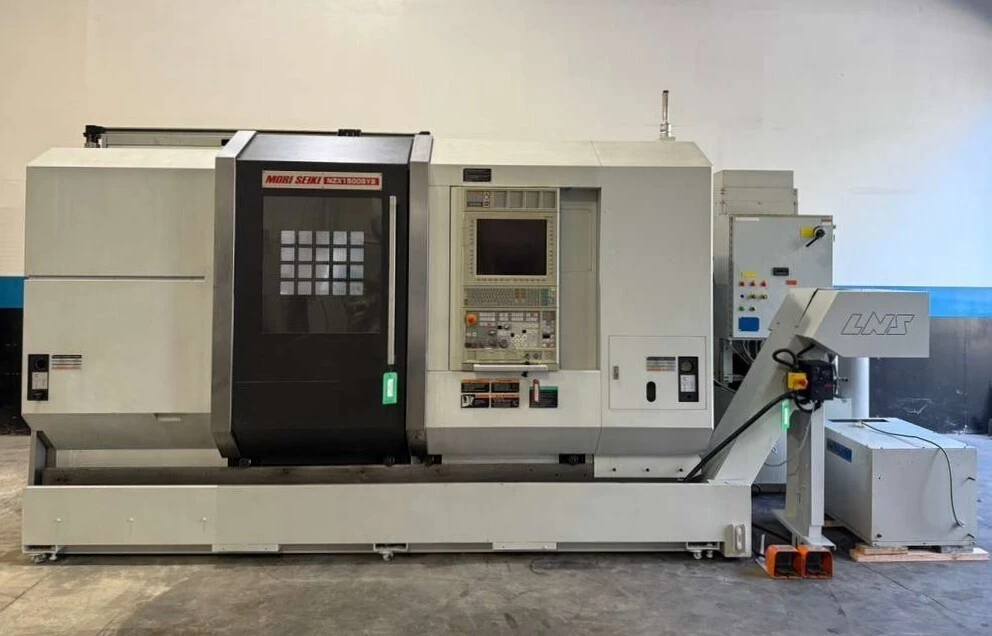

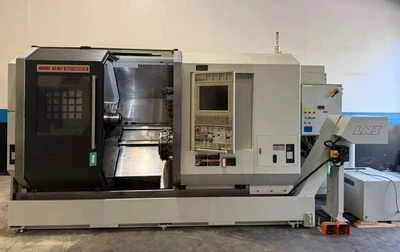

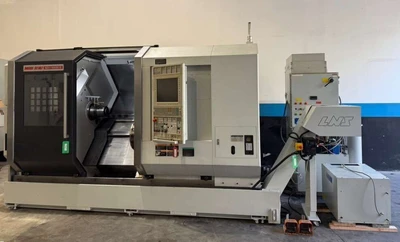

2012 DMG MORI NZX 1500/800SY
Have one to sell?
ConditionUsed
1 available
Used 5-axis CNC lathe available. Specs: 31.5" swing, 11.8" max turning diameter, dual 30 hp spindles, 6,000 RPM, equipped with Fanuc 31i-A control, chip blaster, mist blaster, and high pressure coolant system.
SWING 31.5"
MAX. TURNING LENGTH 31.5"
MAX. TURNING DIAMETER 11.8"
X-AXIS 8.3"
Y-AXIS +2.6″ / -1.8″
Z-AXIS 31.9"
B-AXIS 35.4"
C-AXIS 360°
RAPID TRAVERSE X-AXIS 1181 ipm
RAPID TRAVERSE Y-AXIS 787 ipm
RAPID TRAVERSE Z-AXIS 1968 ipm
BAR CAPACITY 2"
SPINDLE BORE 2.4 in
SPINDLE NOSE A2-5
POWER 30 hp
MAX RPM 6,000 RPM
SUB SPINDLE POWER 30 hp
SUB SPINDLE MAX RPM 6000 rpm
SUB SPINDLE BORE 2.4 in
SUB SPINDLE NOSE A2-5
DIMENSIONS 173″ x 111″ x 91″ High
WEIGHT 18,300 Lbs

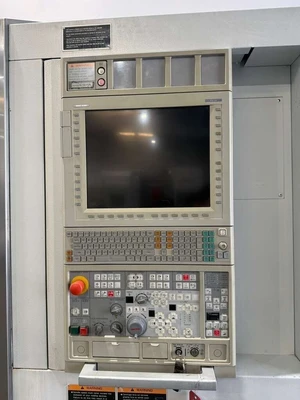

Fanuc 31i-A Series CNC Control

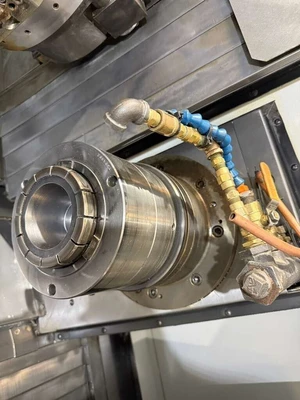

Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles

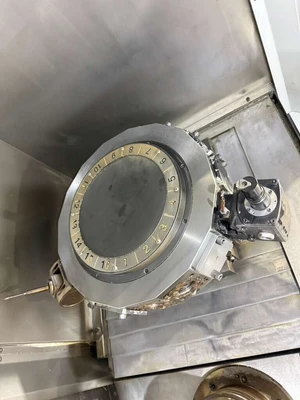

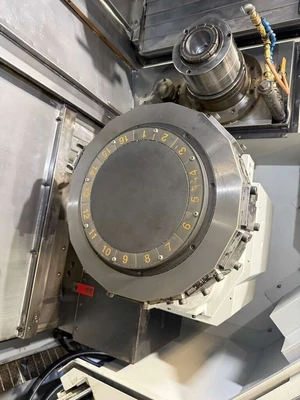

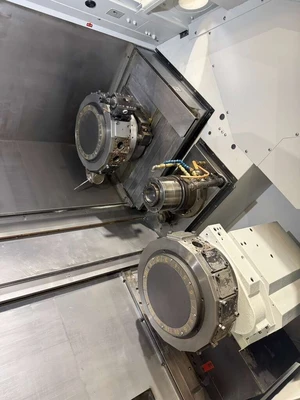

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
PCMCIA Card Slot & USB Port
Chip Blaster

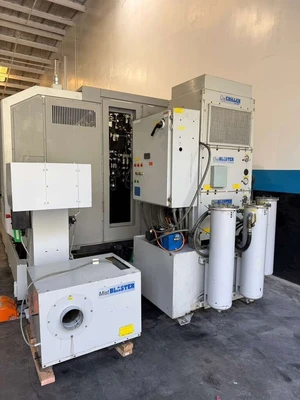

Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System
Chip Conveyor

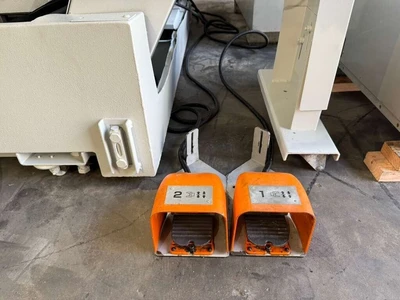

Foot Switches
