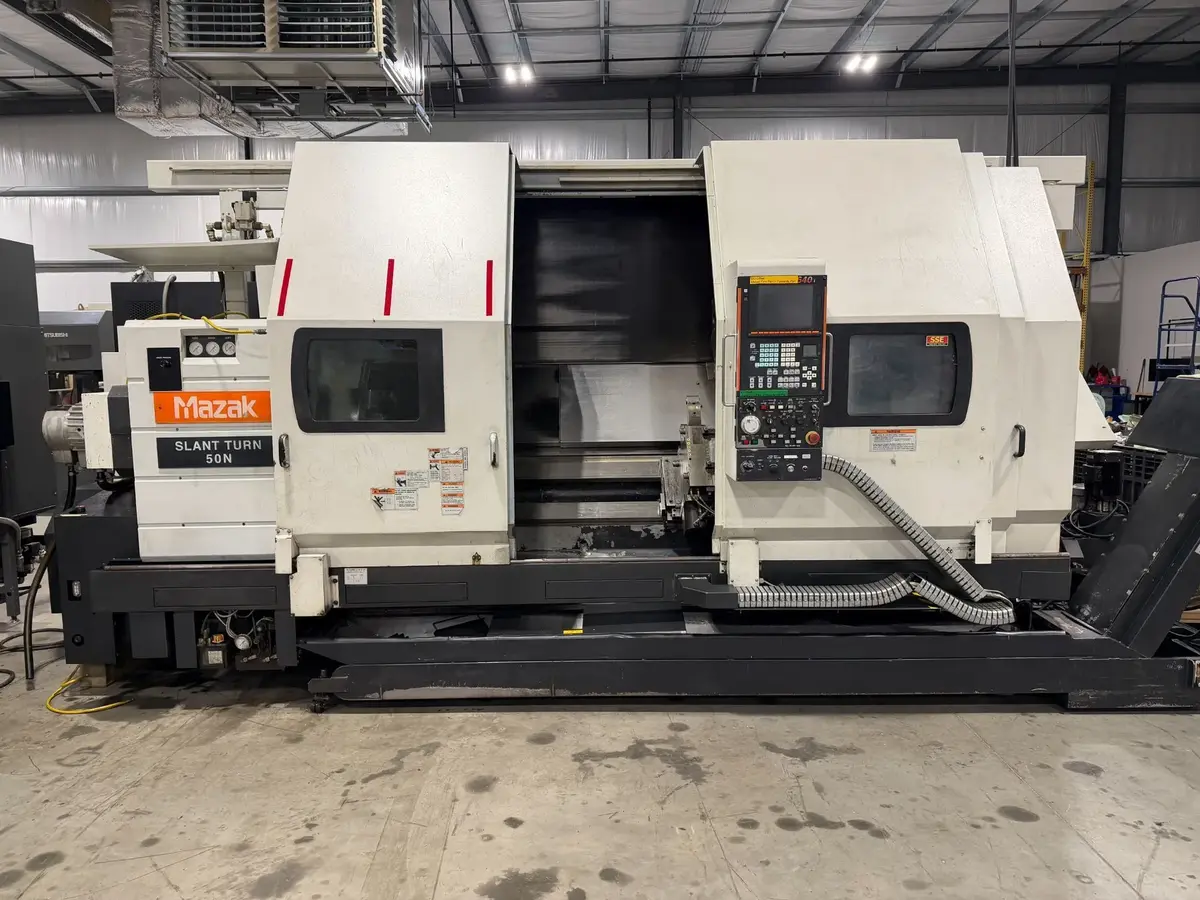

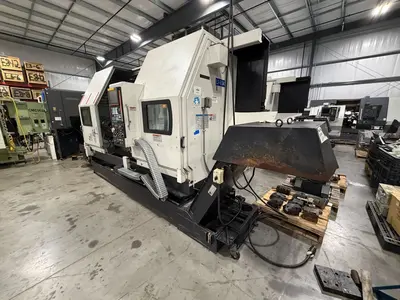

Used 2006 MAZAK SLANT TURN 50N-2000 | Multi-Axis CNC Lathes
Have one to sell?
ConditionUsed
1 available
MAZAK SLANT TURN 50N-2000, used multi-axis CNC lathe from 2006. Features 22.6" X-Travel, 80" Z-Travel, 3.5" bar capacity, and 21" manual chuck. Powered by a 50 HP spindle motor with Mazatrol 640T CNC control and hydraulic steadyrest. Includes chip conveyor.
X-Travel: 22.60"
Z-Travel: 80.00"
Distance Between Centers: 80"
Max Swing Over Bed: 31.70"
Max Cutting / Turning Diameter: 28.00"
Rapid Traverse: 473/552 IPM
Spindle
Bar Capacity: 3.50"

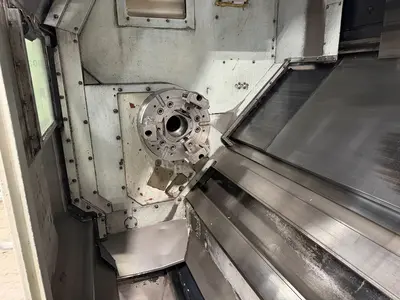

Chuck Size: 21.0"
Chuck Type: Manual
Spindle Bore: 4.00"
Spindle Speed: 750 RPM
Spindle Motor: 50 HP
Control

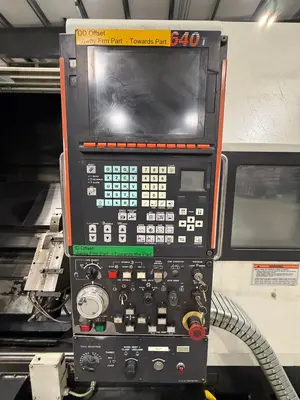

Control Make/Model: Mazatrol 640T CNC Control
Control Options: Coordinate Rotation and Scaling;Helical Interpolation;Macros;EIA/ISO Code Input Function
Additional Control Options: Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Tailstock / Steadyrest
Tailstock: Equipped With
Steadyrest Type: Hydraulic
Steadyrest Capacity: 10"
Chip Conveyor
