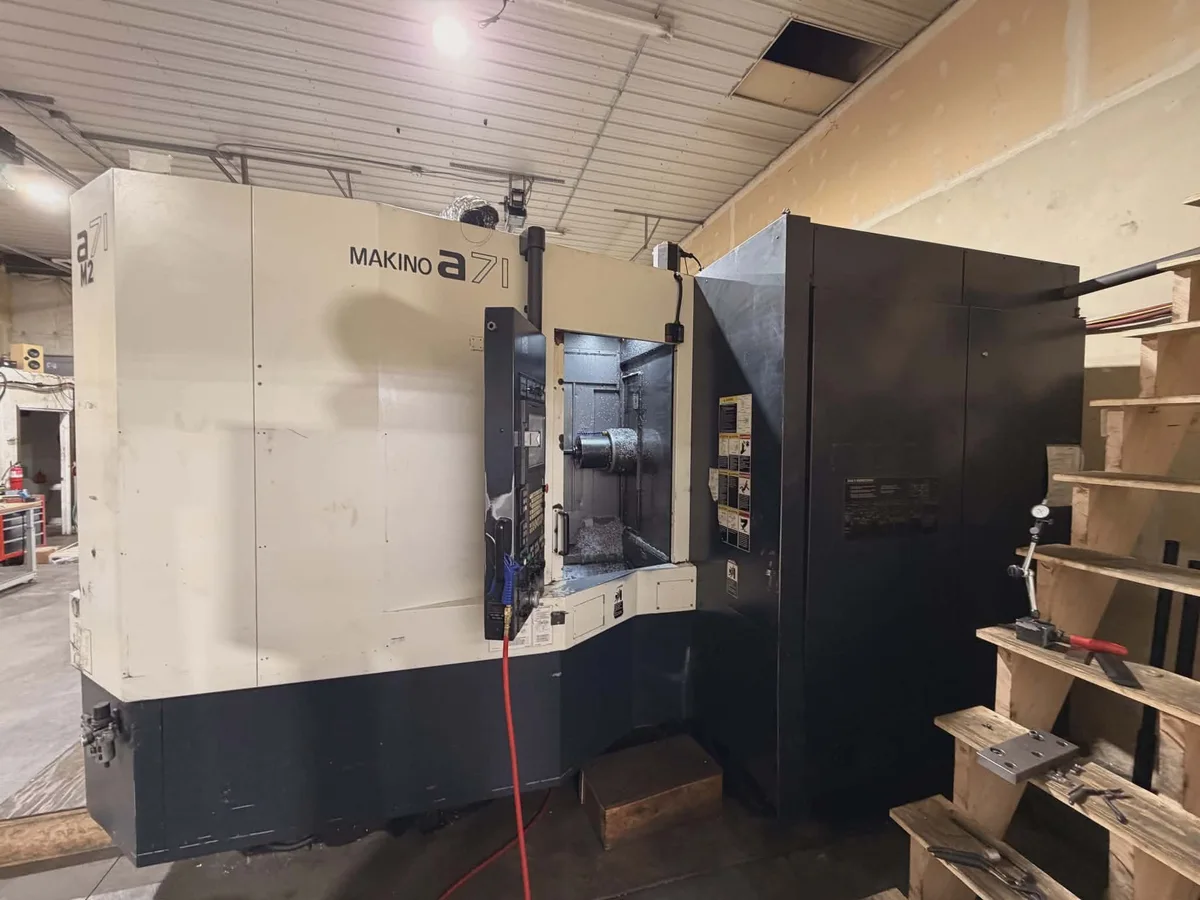

Used MAKINO a71 | Horizontal Machining Centers
Have one to sell?
ConditionUsed
1 available
Used Horizontal machining center. Equipped with Fanuc CNC control, a 60-tool auto changer, and a powerful 10,000 RPM spindle, it handles up to 1,543 lbs.
Axis Travel: 28.7″
Y-Axis Travel: 28.7″
Z-Axis Travel: 31.5″
Pallet Size: 19.7″ x 19.7″
Max. Payload: 1,540 lbs.
Max. Workpiece Size: 31.5″ x 39.4″
Max. Workpiece Weight: 1,543 lbs.
Spindle Speed: 10,000 RPM
Spindle Taper: Cat 50
ATC: 60
Tool Change Time Tool to Tool: 1.7 seconds
Tool Change Time, Chip to Chip: 3.2 seconds
Max. Tool Length: 17.7″
Max. Tool Diameter (w/ adjacent pockets empty): 11.8″
Max. Tool Weight: 44 lbs.
Cutting Feedrate: 1969 IPM
Rapid Traverse (X, Y, Z): 1969 IPM
Fanuc CNC Control
Auto Tool Changer- 60 Tools

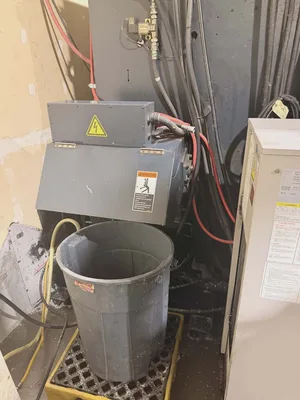

Chip Conveyor and Tank
Chip Blaster Coolant Through Spindle- 300 psi
Full 4th Axis
