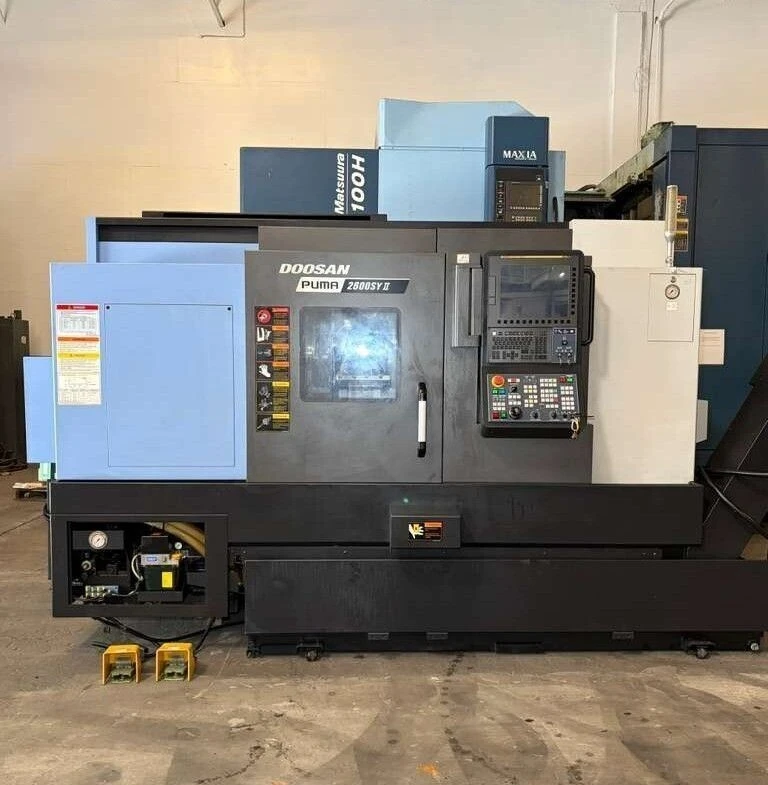

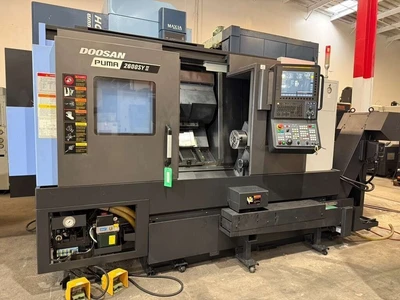

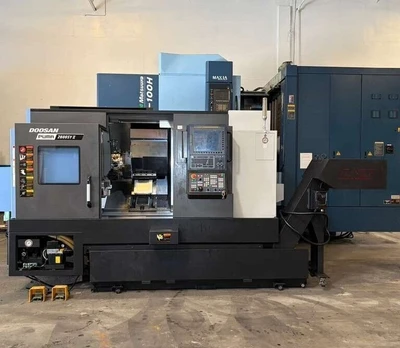

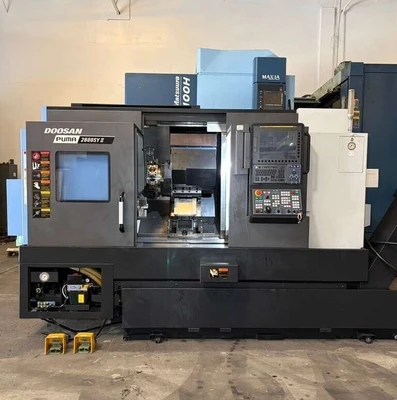

2021 DOOSAN PUMA 2600SYII
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. Features 24.8" swing, 29.9" max turning length, 14.8" max turning diameter, 12-station live tool turret, and high-pressure coolant system. Equipped with Fanuc i-Plus CNC control and more.
Swing 24.8"
Max. Turning Length 29.9"
Max. Turning Diameter 14.8"
X-Axis 10.2"
Y-Axis +2.10″ –2.10″
Z-Axis 32.7"
B-Axis 32.70″
C-Axis 360°
Rapid Traverse X-Axis 1181 ipm
Rapid Traverse Y-Axis 394 ipm
Rapid Traverse Z-Axis 1181 ipm
Rapid Traverse B-Axis 1181 ips
Rapid Traverse C-Axis 200 ips
Spindle Taper BMT-65

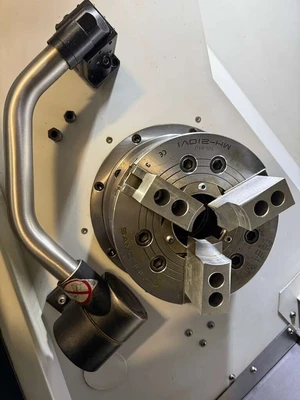

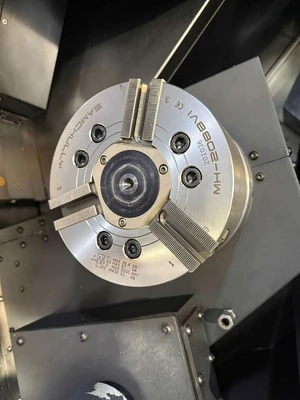

Chuck Size 10"
Bar Capacity 3.2"
Spindle Bore 3.6 in
Spindle Nose A2-8
Power 20 hp
Max RPM 4,000 RPM
Turret Stations 12 (24 Positions)
Live Milling Power 10 hp
Live Milling Max RPM 5000 rpm
Sub Spindle Power 20 hp
Sub Spindle Max RPM 6000 rpm
Sub Spindle Chuck 8 in
Sub Spindle Bar Capacity 1.96 in
Sub Spindle Bore 2.4 in
Sub Spindle Nose A2-5

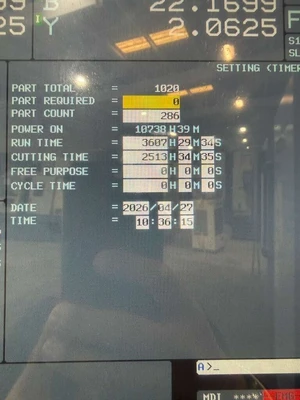

Cut Hours 2,513 hr.
Dimensions 142″ x 75″ x 85″ High
Weight 14,220 Lbs

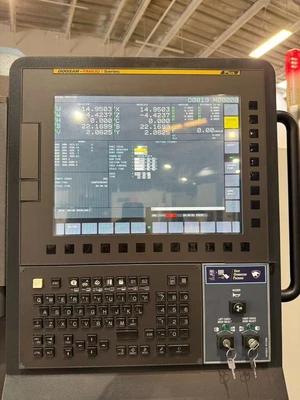

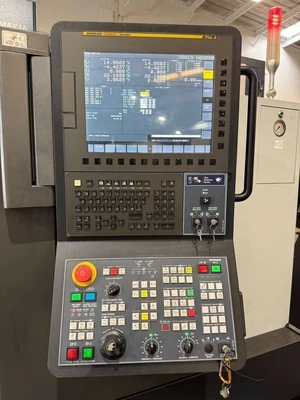

Fanuc i-Plus CNC Control

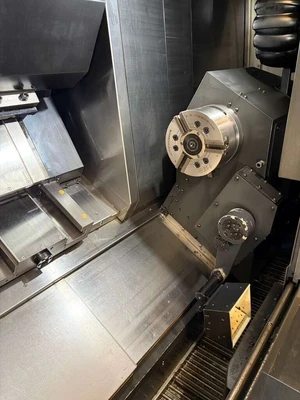

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

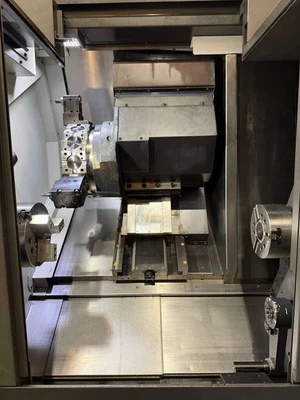

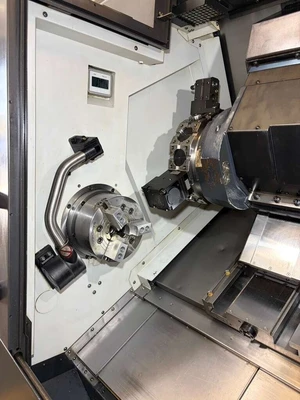

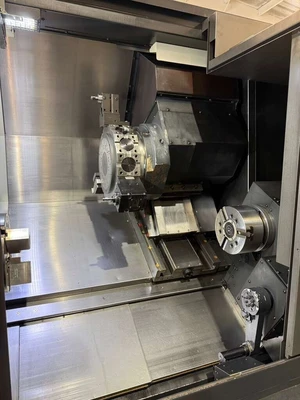

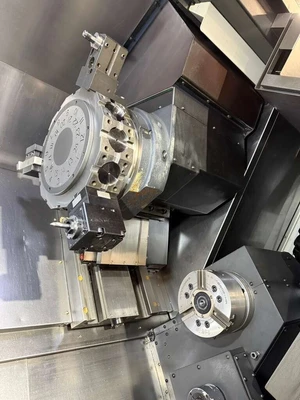

12-Station (24 Positions) Live Tool Turret
Y Axis Capable
Tool Presetter
Parts Catcher
Parts Conveyor

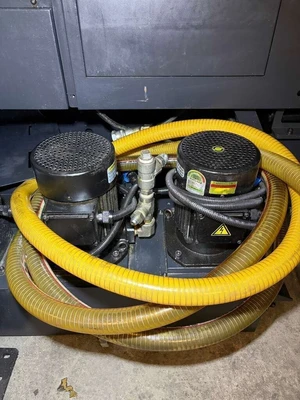

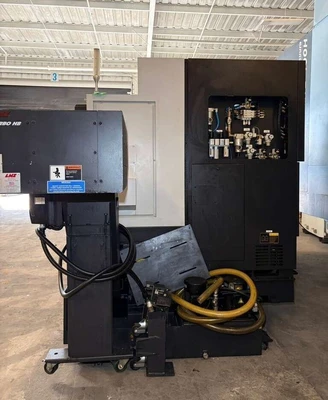

MP Systems VR8 High Pressure Coolant System
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck

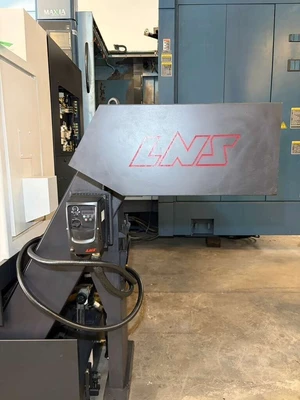

LNS Chip Conveyor
Tailstock

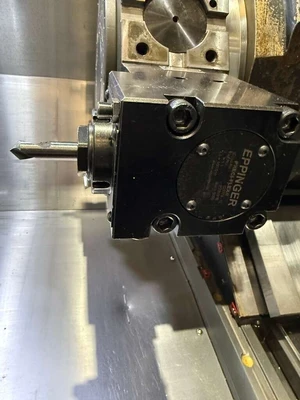

Live Tooling
Sub Spindle
