| X | 30" | 762 mm |
| Y | 22" | 558.8 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| Taper | CAT 40 | CAT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 24.8" | 629.92 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 168" x 92.5" x 110" | 168" x 92.5" x 110" |
| Weight | 14,250 lbs | 14,250 lbs |
B-Axis Tilt
Travel: 120 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 2240 ft-lbf

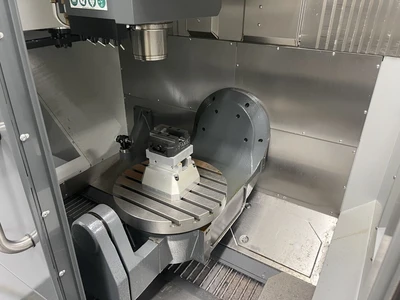

C-Axis Rotation
Travel: 360 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 1854 ft-lbf
Part Swing: 27"
Platter
Platter Diameter: 19.7"
Weight on Platter: 660 lbs
Weight on Platter w/ Pallet Pool: 200 lbs
T-Slot Center Distance: 2.48"
Feedrates
Cutting: 650 IPM
X/Y/Z - Axis: 900 IPM
Tool Diameter: 2.5"
Tool Diameter: 5"
Tool Length: 12"
Tool Weight: 12 lbs

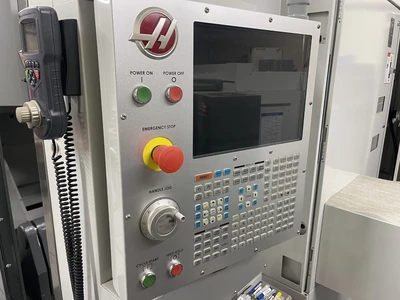

Haas CNC Control

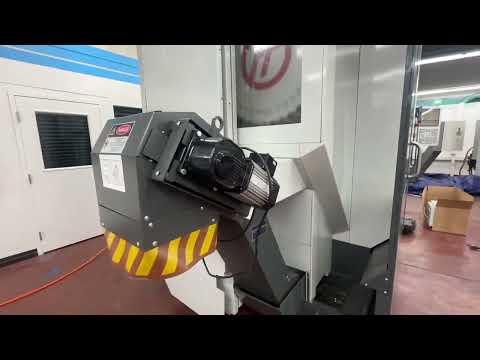

Chip Conveyor
40 ATC
Probe
Cabinet Cooler
5th Axis Vise
All Available Manuals
This equipment has been sold. Similar equipment available now is shown below.
