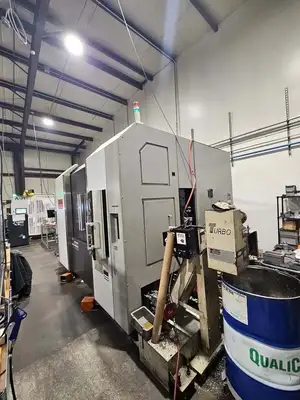

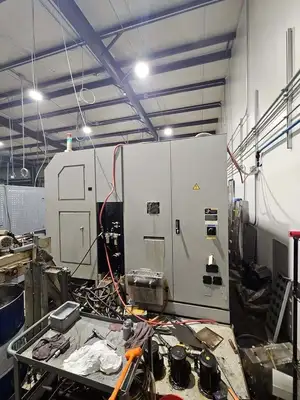

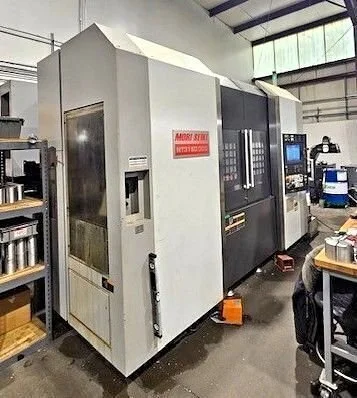

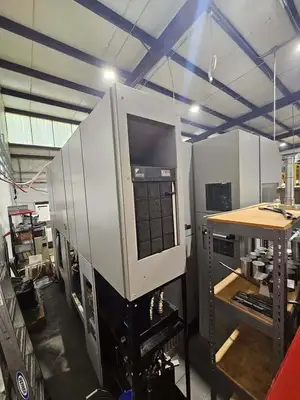

2006 MORI SEIKI NT3150 DCG/1000SZ
Have one to sell?
ConditionUsed
1 available

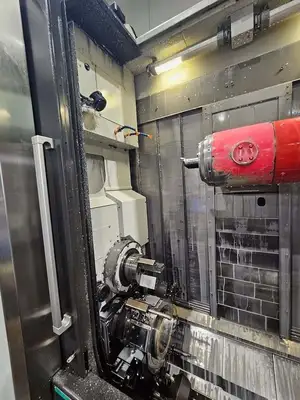

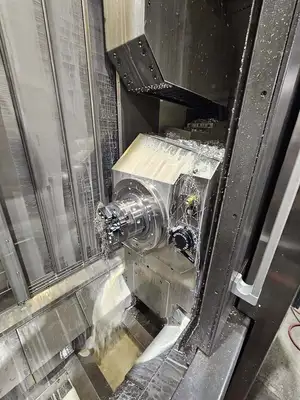

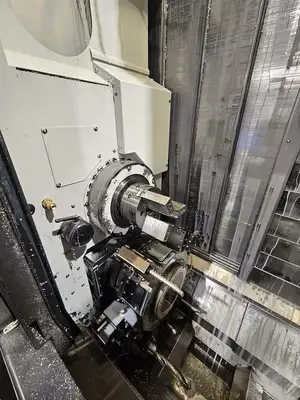

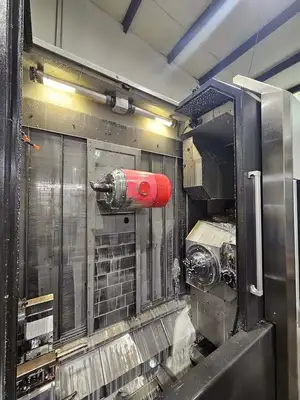

Used CNC Lathe. Features MSX 711 CNC, dual 6" chucks, 12,000 RPM spindle, and 40 ATC. Includes chip conveyor, coolant tank, and Capto C5 toolholders. Max trade at 23.6" diameter and 39.4" length.
Main Spindle Chuck Size............................. 6"
Max Turning Diameter................................ 23.6"
Max Turning Length.................................. 39.4"
X-Axis (Cross Travel: Universal Head)............... 27"
Z-Axis (Longitudinal Travel: Univ. Head)............ 42.3"
Y-Axis (Travel of Universal Head)................... ± 4.9"
B-Axis (Rotation of Universal Head)................. ± 120°
X2-Axis (Cross Travel of Lower Turret).............. 5.1"
Z2-Axis (Longitud. Travel: Lower Turret)............ 38.2"
Max Spindle Speed.................................... 12,000 RPM
Sub-Spindle Chuck Size............................... 6"
Sub-Spindle Speed Range.............................. 6,000 RPM
Automatic Tool Changer Capacity...................... 40
Lower Turret Live Tooling Speed Range................ 6,000 RPM

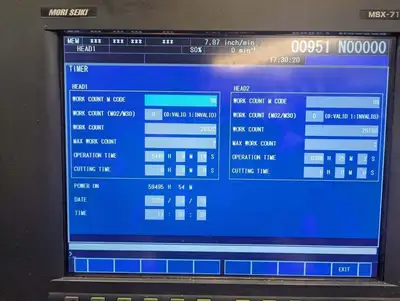

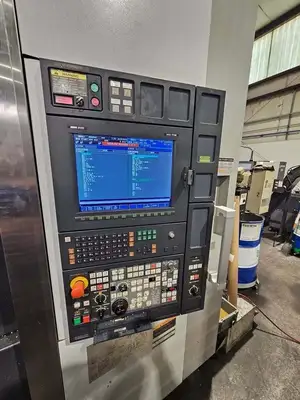

MSX 711 CNC Control, 6" 3-Jaw Chuck Sub- and Main Spindle 6000 RPM, 40 ATC, 12000 RPM Universal Milling Spindle C5 Taper, Lower Turret with Live Tooling, Chip Conveyor, Coolant Tank, Capto C5 Toolholders Included.
