Table Dimensions: 33.0″ x 25.2″
Maximum Workpiece Dimensions: 41.3″ x 32.3″ x 12.0″
Max workpiece Weight: 3,300 LBS
X Axis Travel: 23.6″
Y Axis Travel: 15.7″
Z Axis Travel: 12.2″
U/V Travels (from center): ±3.0″ x ±3.0″
Taper Angle @ Thickness: 15 deg.@ 10.2″
Table Rapid Feed Speed: 51.2″/min
Wire Diameter Possible: 0.004~0.012″
Max. Wire Spool size On Machine / Cabinet STD: 22/44 LBS
Machine Weight: 8,000 LBS
Mitsubishi CNC Control
Intelligent Auto-Threader
Chiller FTS
10 KG (22lb) Wire Spool
Wire Alignment Gauge
Auto Oiler
Auto Power Recovery
Advanced Hand Pendant Box (Provides extended features and LCD screen)

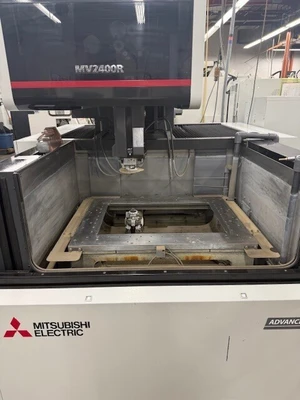

4-Sided Table (One-Piece Hardened Stainless)
Basic Workpiece Clamping Kit (Directly clamps parts to the machine table)
One set of 0.010″ Round Diamond Guides
Fast Fill Pump
16-Step Programmable Flushing Control
Angle Master (Guides and flush cups not included)
Linear Scales X,Y,U,V (50nm) 2 millionths absolute scales
Cylinderical LSM Drives (Linear Shaft Motors X,Y,U,V)
Small Wire Device .004″ (Does not include guides)

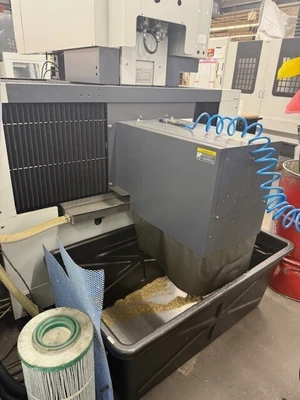

Wire Processor (Scrap Wire Chopper)
Fine Surface Machining (PF Circuit 11~12μ” Ra possible)
New HFS Fine Finish Circuit (7~8μ” Ra possible)

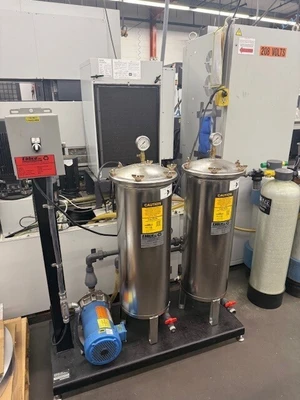

DI Resin System (1.4 cu. ft. fiberglass cylinder 2x)
2 USB Ports
DNC Hardware (Ethernet FTP)
McAfee Virus Protection
This equipment is currently unavailable. Similar equipment available now is shown below.
