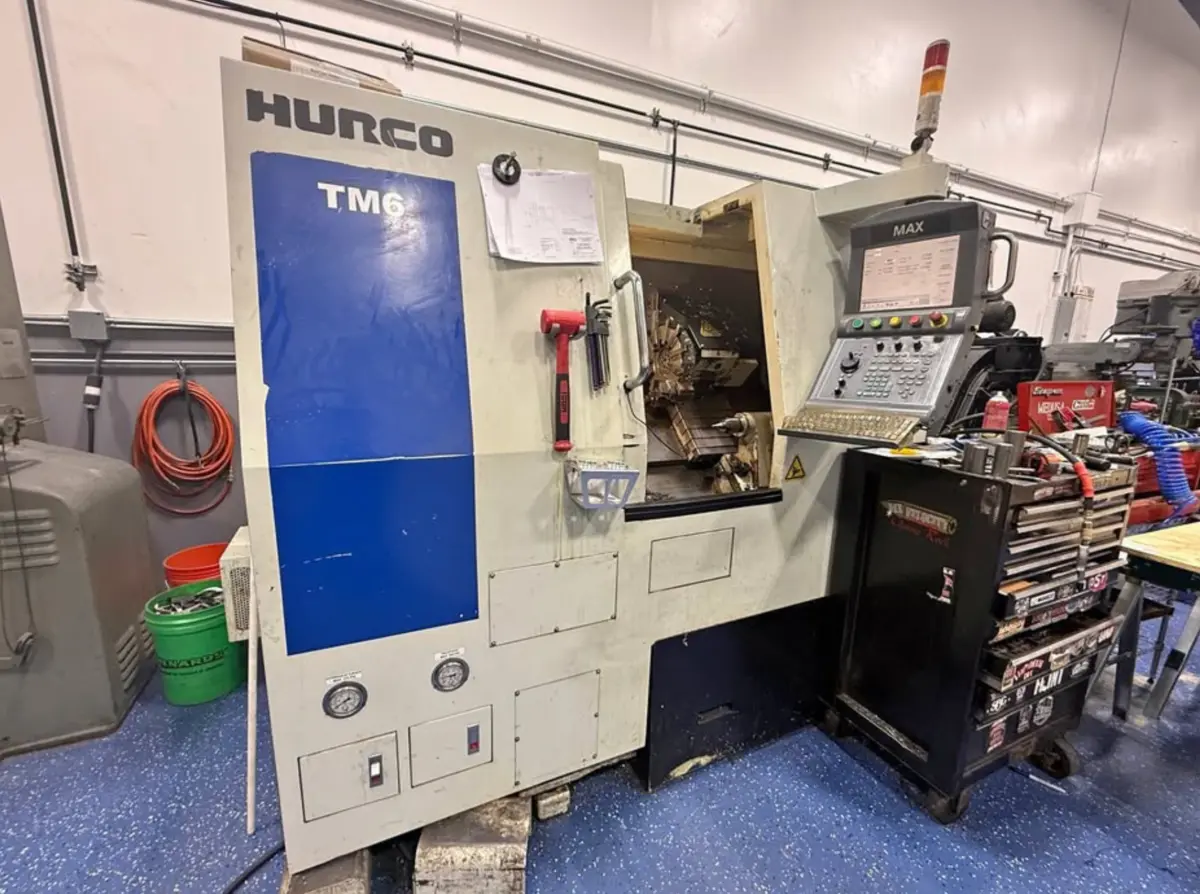

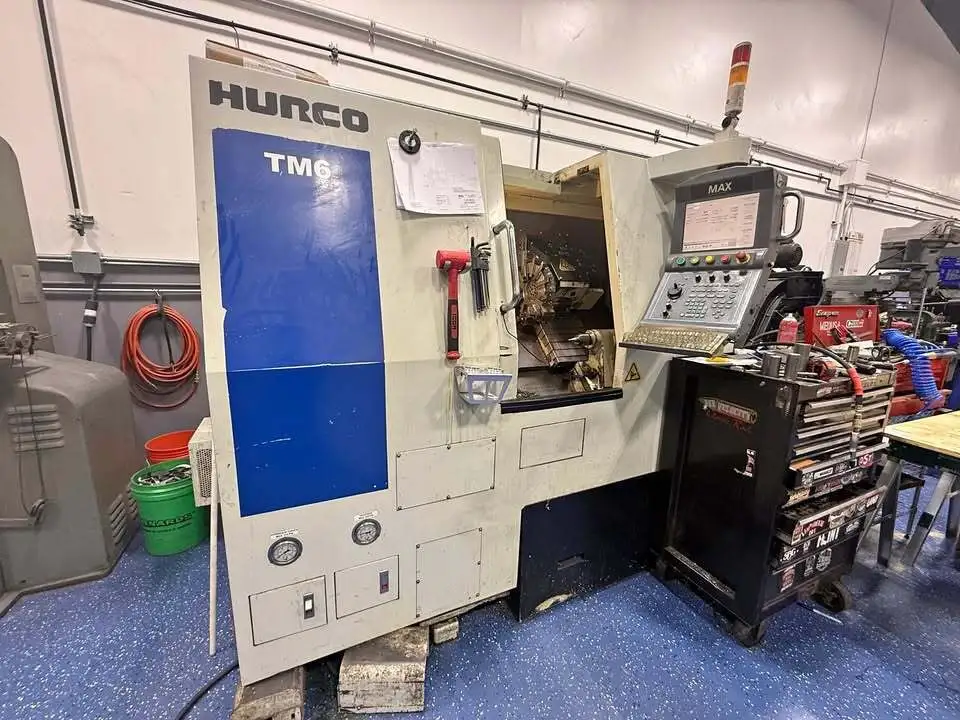

2012 HURCO TM6
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. Key features: 16" swing, 340.4 mm machining length, 6" chuck size, 1.7" bar capacity, 15 HP, and 6000 RPM max. Includes tailstock.
Chuck Size: 6 inches
Swing Over Bed: 15.94 inches
Max Cutting Diameter: 12.4 inches
Max Cutting Length: 13.4 inches
Distance Between Centers: 15.8 inches
X-Axis Travel: 7 inches
Z-Axis Travel: 14 inches
Spindle Motor: 17.5 HP
Spindle Speed: 6,000 RPM
Bar Capacity: 1.77 inches
Turret: 12 Station
Machine Weight: 7,000 lbs.
Voltage: 208–240 VAC (3-phase, 60 Hz)
Frequency: 60 Hz
Power Supply: 3-phase, 3-wire (Y or Δ configuration)
Current Draw: Approximately 15–20 amps per phase (exact load depends on spindle and turret operation)
