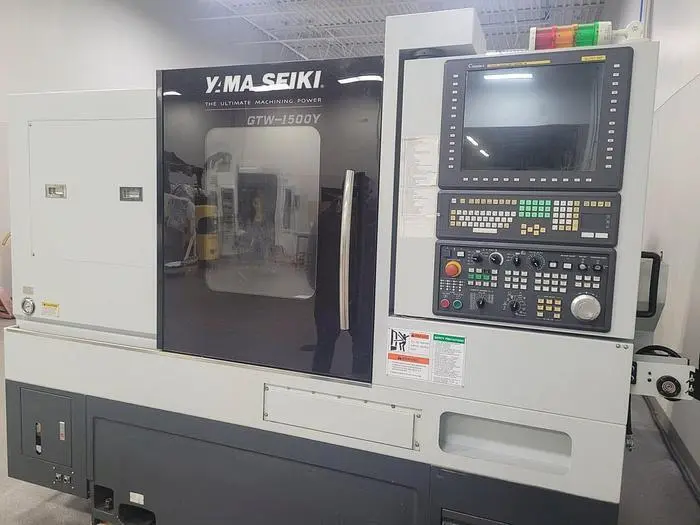

2017 YAMA SEIKI GTW-1500Y
Have one to sell?
ConditionUsed
1 available

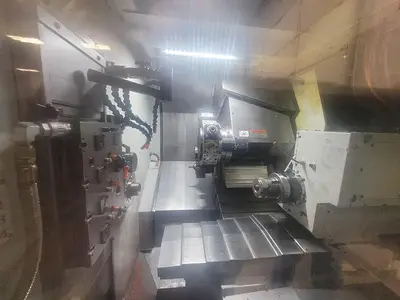

Used CNC Lathe with Fanuc 32i-B, Y Axis, subspindle, and full C Axis rotation. Features 12-station turret, live milling/drilling, hydraulic chucks, high-pressure coolant system, and more.

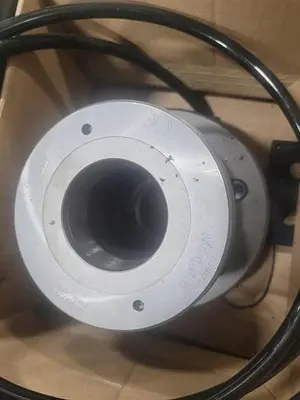

Chuck Sizes 6" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle
Maximum Swing 15.7"
Maximum Cutting Diameter 9.8"
Maximum Cutting Length 8.2"
X1 / X2 Axis Travel 7.1" / 12.2"
Y1 / Y2 Axis Travel +/- 1.4" / 9.8"
Z1 / Z2 Axis Travel 10.5" / 21.6"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation .001 / .001 Degree
Spindle Nose / Spindle Bore / Bar Capacity A2-5" / 2.4" / 2"
Spindle Speed / Sub Spindle Speed 5,000 RPM / 6,000 RPM
Spindle Motor / Sub Spindle Motor 25 HP / 7.4 HP
Rotary Tool Speed / Rotary Motor 4,000 RPM / 3.3 HP
Number of Turret Positions 12 Station Turret
Gang Slide Positions 8 Locations
Gang Tool Slide Live Holder Type / Speed ER20 Type / 6,000 RPM
Rapid Traverse Rates X1 / X2 708 IPM / 945 IPM
Rapid Traverse Rates Y1 / Y2 788 IPM / 945 IPM
Rapid Traverse Rates Z1, Z2 1180 IPM
Machine Dimensions 100.2 x 81.3" x 79.4"
Machine Weight 8,820 lbs. approx.

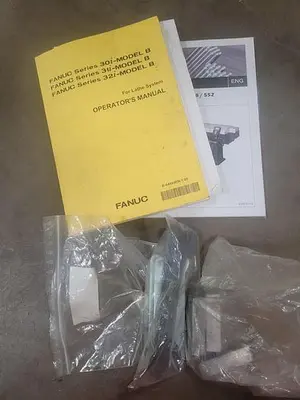

Control Fanuc 32i-B Series Control
Y Axis Capability

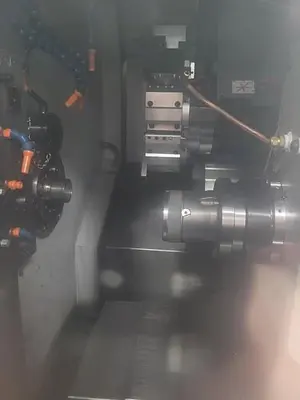

Subspindle
Full C Axis Spindle Rotation Both

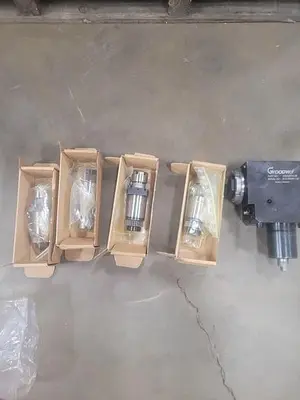

Live Milling / Drilling Capability

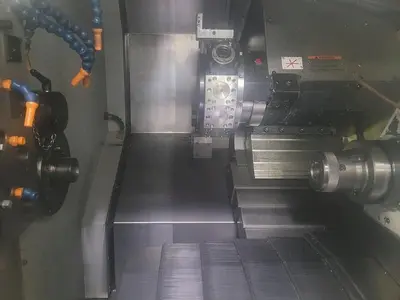

12 Station Turret

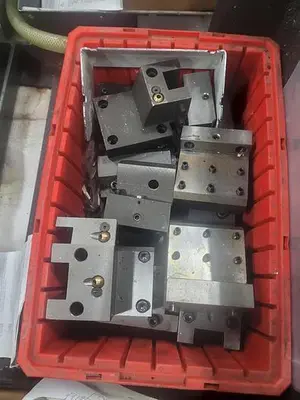

8 Station Gang Style Tool Slide
6" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle

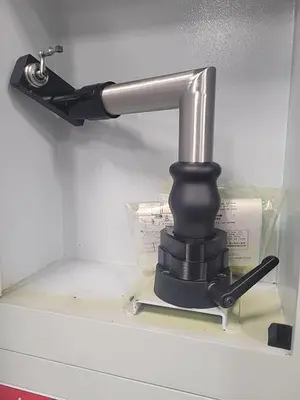

Automatic Tool Eye

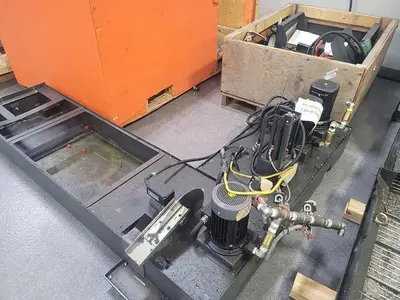

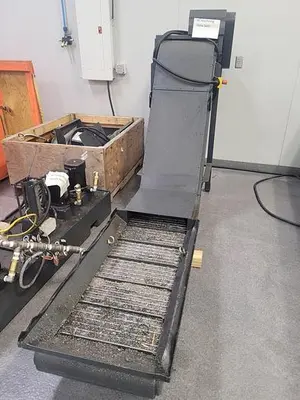

Chip Conveyor
Parts Catcher

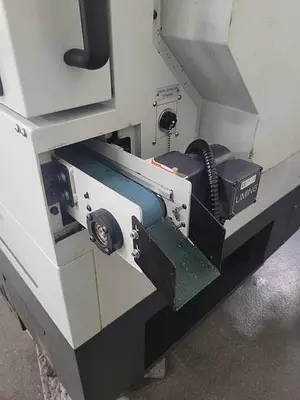

Parts Conveyor
High Pressure Coolant System
Prepped for a Bar Feed System
