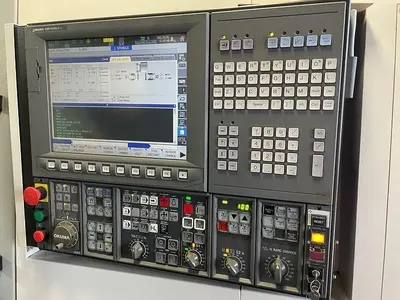

Machine Control OSP P300LA
Chuck Size 10" 3-Jaw Hydraulic
Maximum Swing 20.4"
Maximum Turning Diameter 11.81"
X-Axis Travel 20.47"
Y-Axis Travel 3.94"
Z-Axis Travel 18.11"
Spindle Nose / Bore / Bar Capacity A2-8 / 3" / 2.75"
Spindle Speed 3,000 rpm
Spindle Motor 20 hp
Number of Turret Positions 12
Subspindle Speed 6,000 rpm
Subspindle Motor 10 hp
Rotary Tool Speed / Rotary Motor 6,000 rpm / 7.5 hp
Machine Dimensions LxWxH 131"x95"x87"
Machine Weight 13,600 lbs
Machine Control OSP P300LA
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Subspindle
Y Axis Capability for off centerline work
10" Chuck
Parts Catcher
Chip Conveyor
Tool Presetter

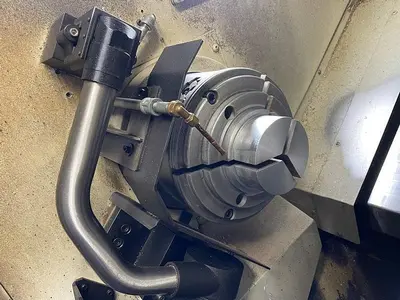

Collet Chuck on Main Spindle
3-Jaw Chuck on Subspindle
Barfeed Interface - Universal Type
AOT IGF P3-Inc M/W/Y
Helical Cutting for X, C and Z-Axes
Off Center Turning Function
This equipment is currently unavailable. Similar equipment available now is shown below.
