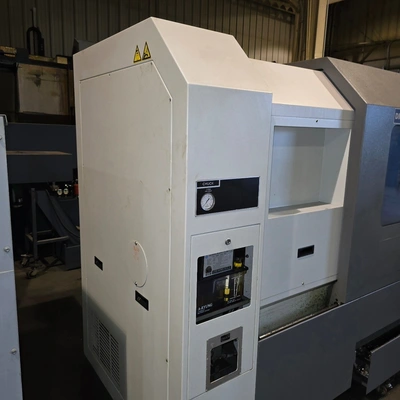

2016 DMC DL-30
Have one to sell?
ConditionUsed
1 available

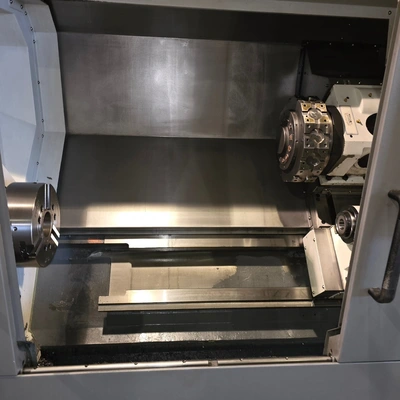

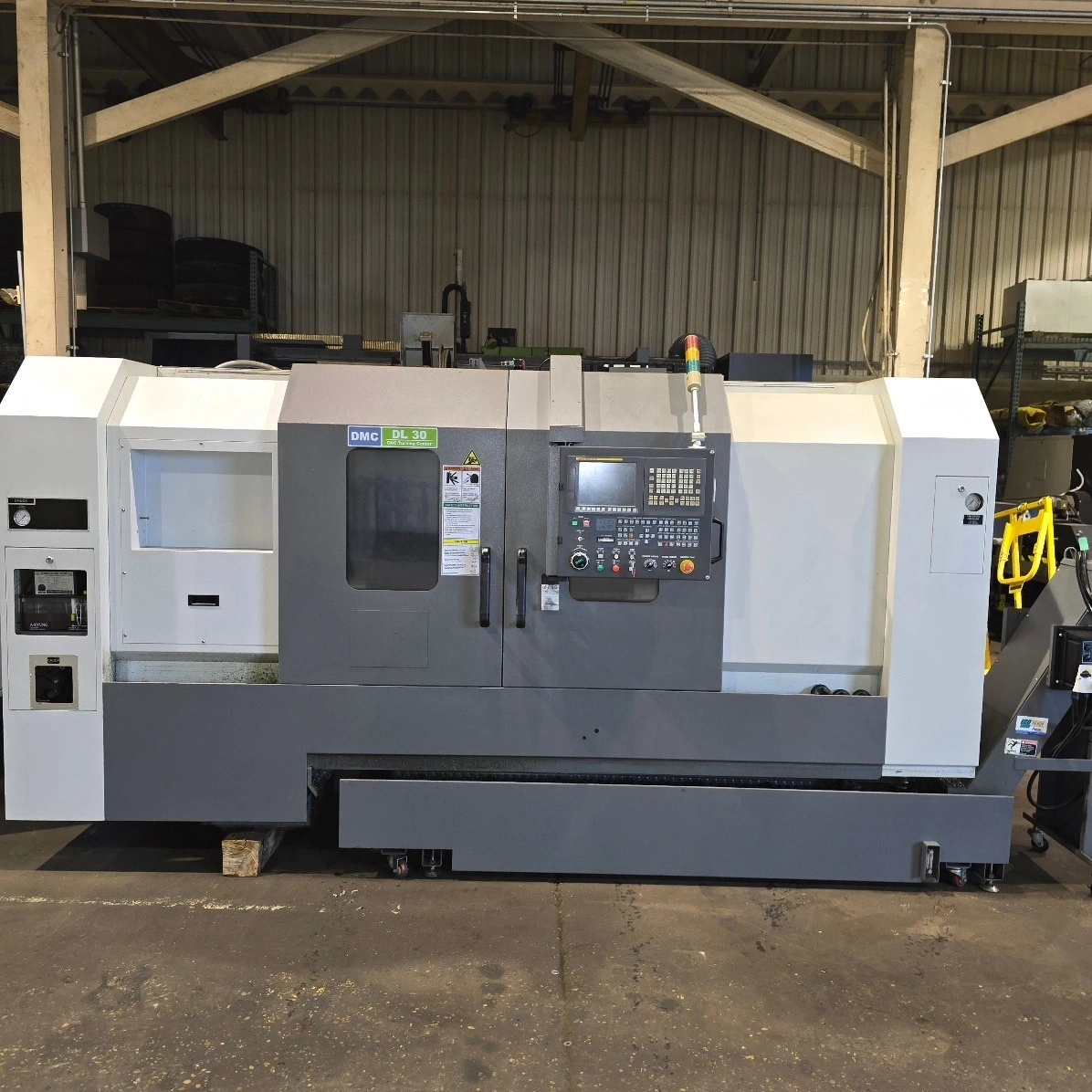

Used CNC Lathe, featuring a 24.02" swing and max RPM of 3,000. Equipped with a 10" chuck, 30 hp motor, and Fanuc Oi-TD Control.
Capacity:
Maximum Swing:24.02"
Maximum cutting diameter:15.75"
Maximum cutting length:42.52"

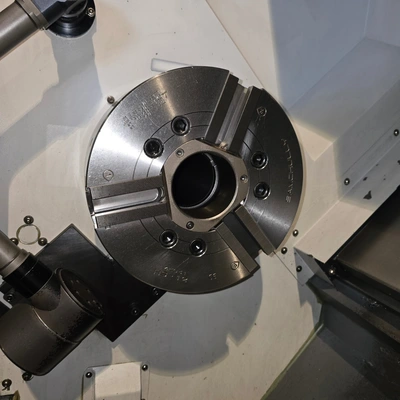

Chuck Size:10"
Spindle:
Spindle nose:A2-8
Bore Diameter:4.13"
Main Spindle motor:30/25 HP
Spindle Speed:3000 RPM with 12" chuck
Maximum Spindle Torque: 462.91 ft-lbs
Slide and Carriage:
X axis travel:9.06"
Z axis travel:44.49"
Rapid Traverse X:787 ipm
Rapid Traverse Z:945 ipm
Guide Ways:Box Ways
Bed Structure:45 degree slant

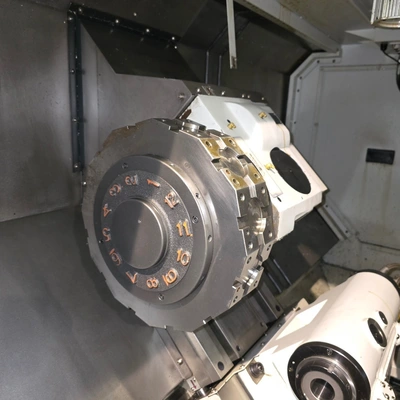

Turret:
Number of tool Stations:12 tools
Turret Indexing Speed:.2 seconds
Indexing Type:Non-Stop, Bi-Directional
Tool Size (turning/facing):1"-wedge clamp
Tool Size (boring bar max):1.75"

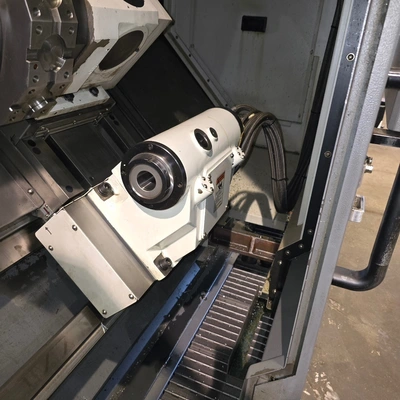

Tailstock:
Tailstock Center:MT#5
Quill Diameter:4.33"
Quill Travel (hydraulic):3.94"
Max thrust of Quill:2,222lbs
Machine Size:
Floor Space Requirements:161.42" x 74.21"
Machine weight:15,652 lbs
Power Consumption:34 Kva
Voltage:220 Volt +/- 10%, 60 HX, 3 phase

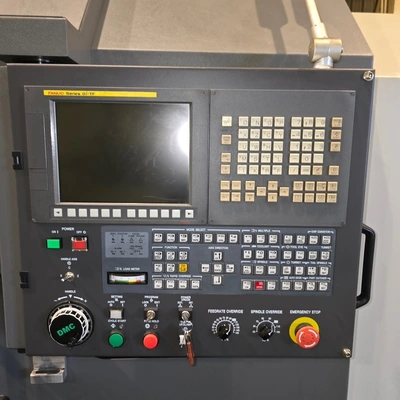

Fanuc Oi-TD Control
10.4" TFT LCD screen
Flash memory card interface
RS 232C interface
Program protection on machine control panel
640M parts programming storage
Tool Life management
Linear and circular interpolation
Variable lead thread cutting

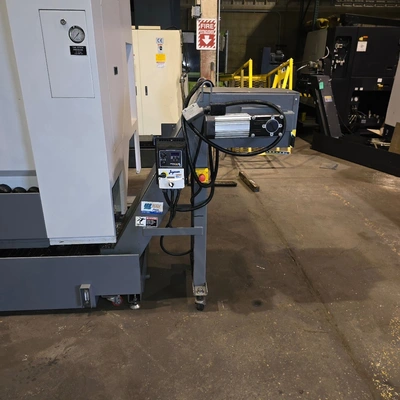

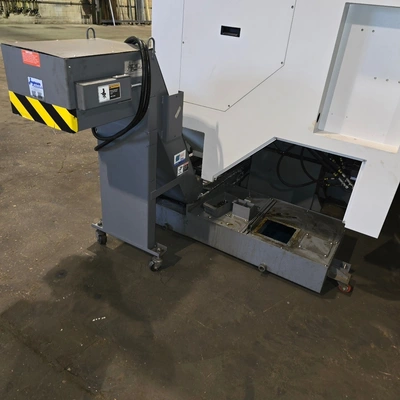

Jorgensen chip conveyor
