Max Swing Over Ways………………………………… 18″
Max Swing Over Cross Slide………………………….. 8″
Distance Between Centers……………………………. 40″
Standard Chuck Diameter…………………………….. 8″
Cross Travel (X-Axis)………………………………. 8.6″
Longitudinal Travel (Z-Axis)………………………… 40″
Rapid Traverse Rate (X-Axis)………………………… 295 IPM
Rapid Traverse Rate (Z-Axis)………………………… 394 IPM
Spindle Nose………………………………………. A2-5
Spindle Bore………………………………………. 2.08″

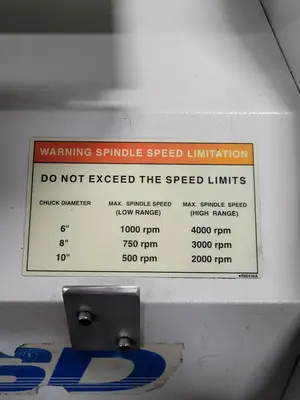

Spindle Speed Range………………………………… 25-4000 RPM
Spindle Drive Motor………………………………… 7-1/2 HP
Tailstock Quill Taper………………………………. #4 MT
Tailstock Quill Travel……………………………… 4.7″
Approximate Machine Dimensions………………………. 100″ x 54″
Approximate Machine Height………………………….. 84″
Approximate Machine Weight………………………….. 4,900 lbs

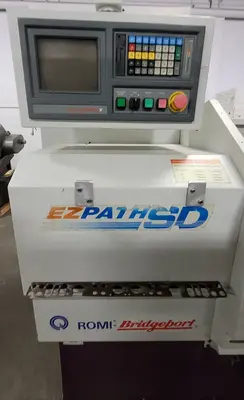

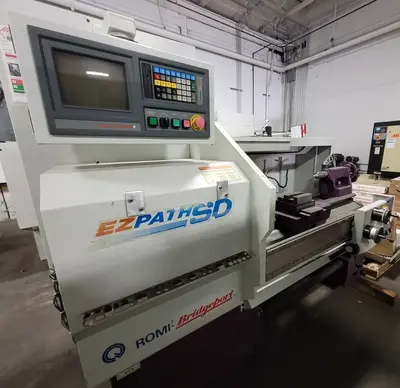

Bridgeport BPCT CNC Control,

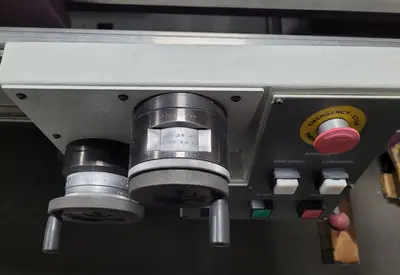

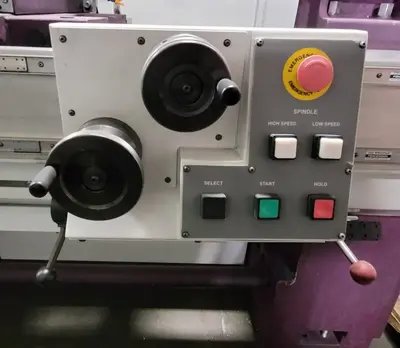

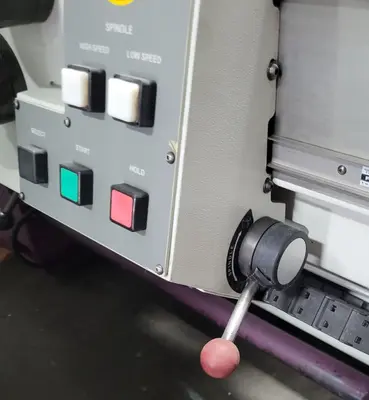

Dual Electronic Handwheel Controls,
Teach Mode,
Inch/Metric Threading,

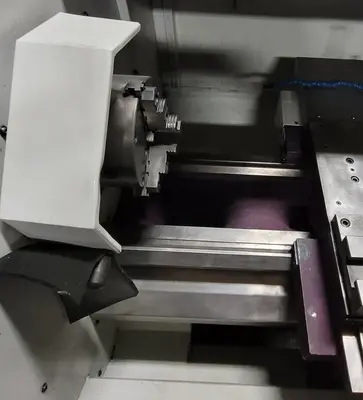

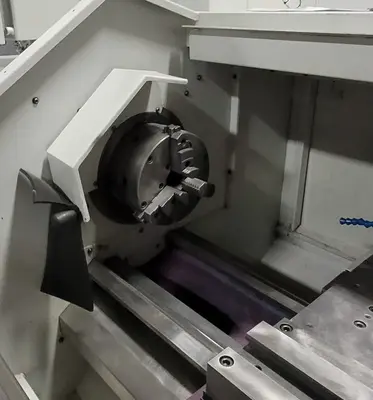

8″ 3-Jaw Chuck,

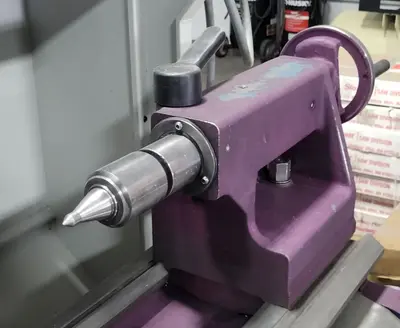

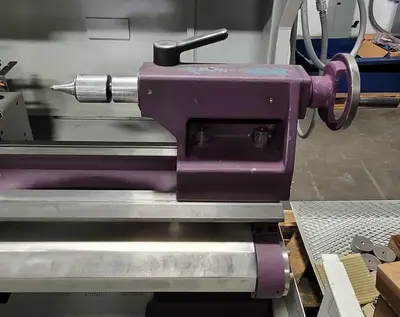

Manual Tailstock,
Geared Headstock,
Central Automatic Lube System,

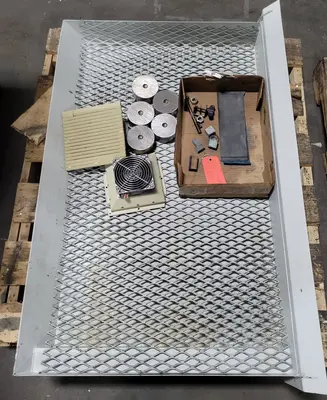

Coolant System w/ Chip Pan.
This equipment is currently unavailable. Similar equipment available now is shown below.
