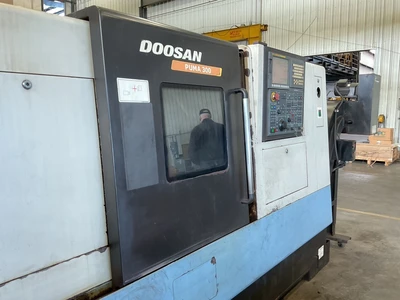

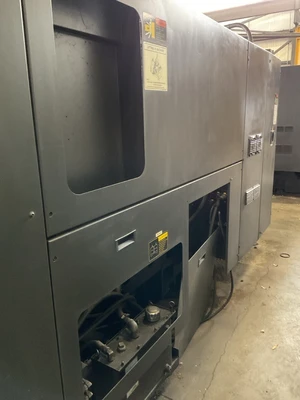

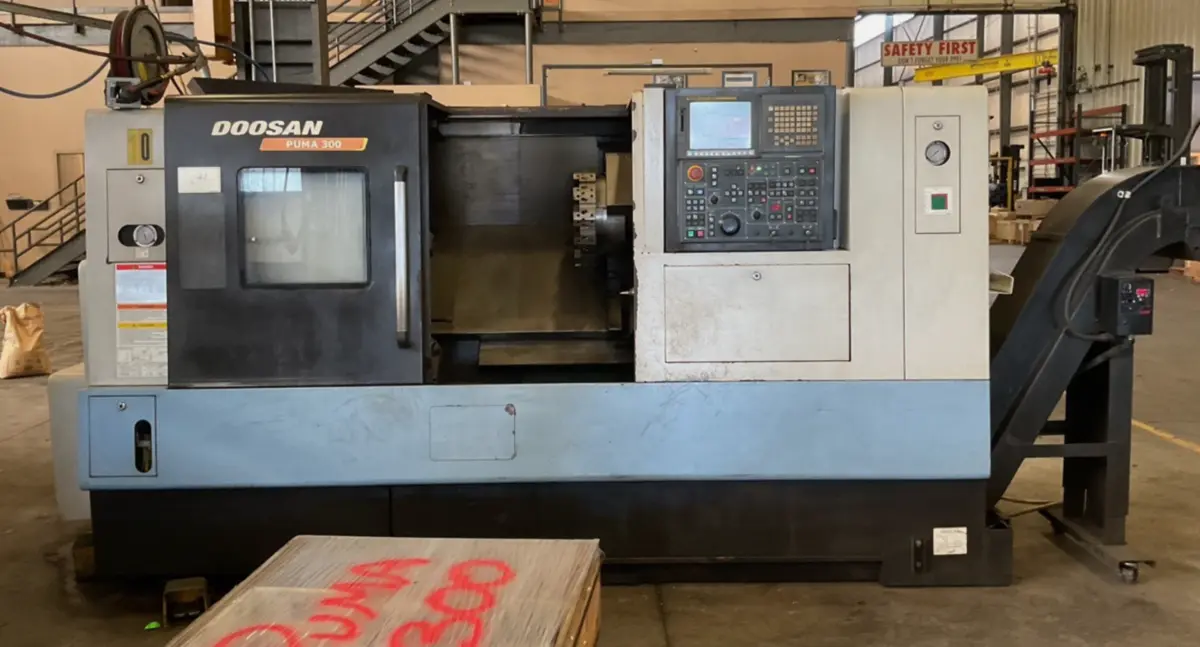

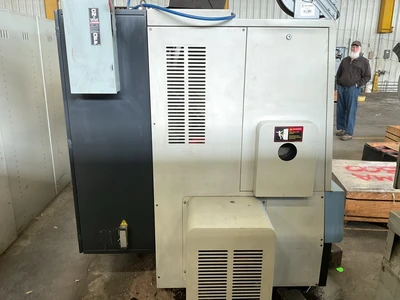

2012 DOOSAN PUMA 300C
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition. Max turning: 15.7" dia, 24.8" length. Features Fanuc control, tool presetter, programmable tailstock, 12-station turret, and chip conveyor. Approx weight: 12800 lbs.
Max Turning Diameter: 15.7″
Max Turning Length: 24.8″
Max Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Swing Over Carriage: 17.7″
Distance Between Centers: 32.0”
X Axis Travel: 11.1″
Z Axis Travel: 26.8″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-15
Spindle Bore: 4.5″
Spindle Speed: 15 – 2800 RPM
Spindle Motor: 35 hp
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 2.4″
Tailstock Taper: MT-4
Tailstock Body Travel: 20.5″
Tailstock Quill Dia.: 3.7″
Tailstock Quill Travel: 3.7″
Approx Dimensions: 148″ x 87″ x 90″ High
Approx Weight: 12800 lbs

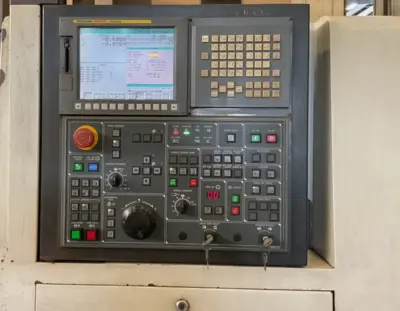

Fanuc CNC Control

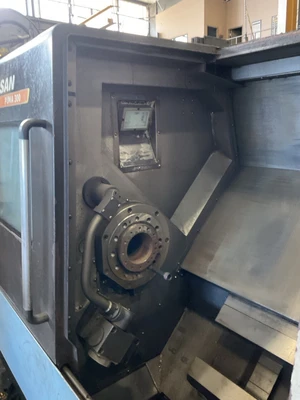

15″ Kitagawa B-15
4.5″ Bore A2-11 Spindle
Tool Presetter

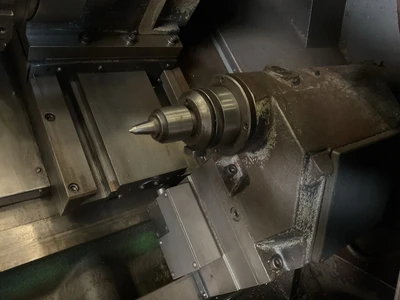

Programmable Hydraulic Tailstock
PCMCIA Card Interface

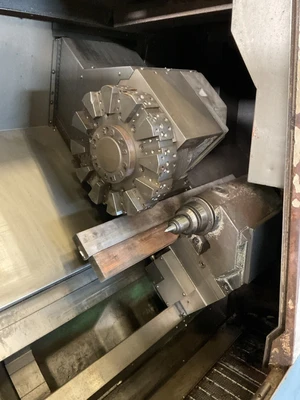

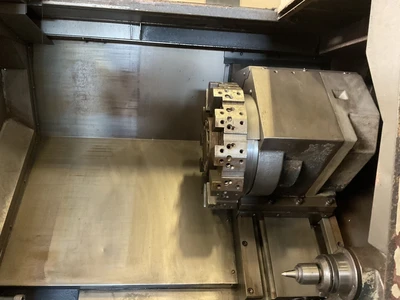

12 Station Automatic Turret
Foot Switch
Oil Skimmer
Coolant System with pump

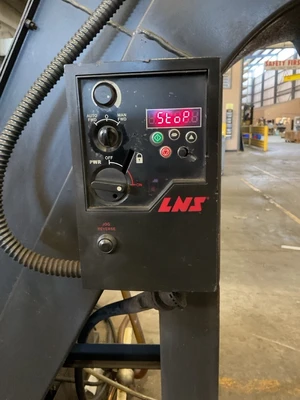

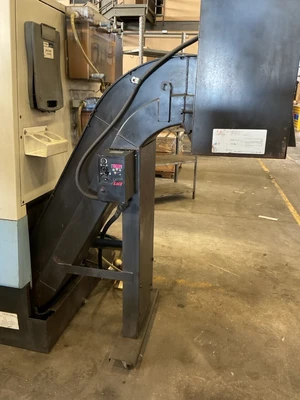

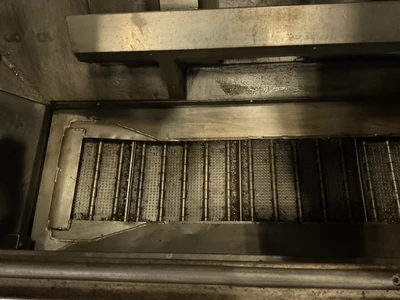

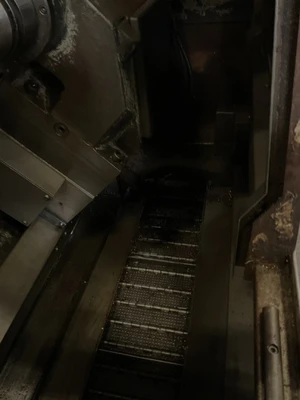

LNS Turbo Chip Conveyor
